NETGEAR D6300 Installation Guide

12
ReadySHARE Printer
The USB Control Center utility allows you to control a shared USB
device from your computer that is connected to the USB port on your
router. The utility allows you to control a printer.
Install the utility on each computer
on your network from which you
want to control the device. You can download this utility at
www.netgear.com/landing/en-us/readyshare.aspx.

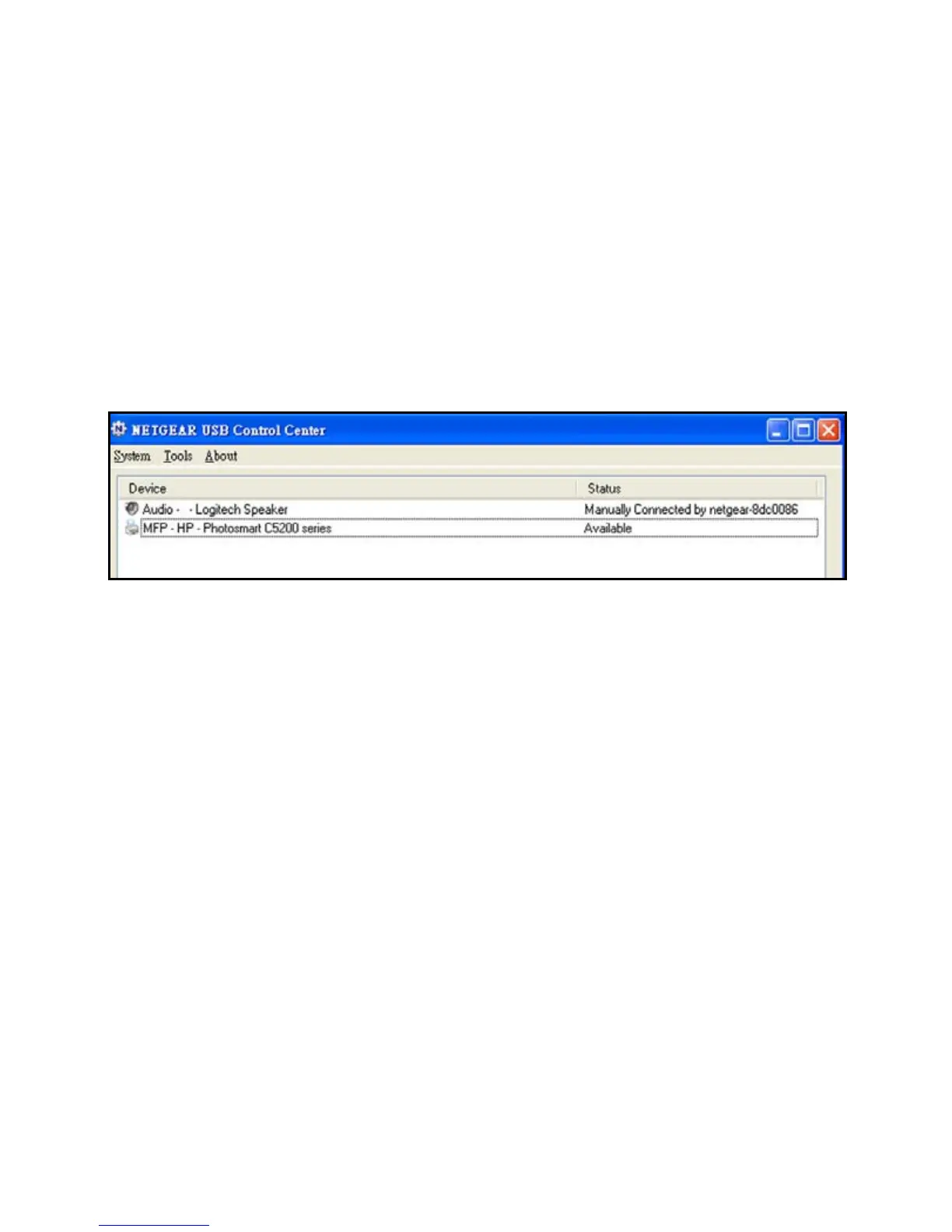

When you launch the USB Control Center utility
, a screen similar to
the following displays:
The main screen shows a device icon, the description for this USB
device, and its status.
Available.
The device is available from the computer that you are
using.
Waiting to Connect. Y
ou need to connect to this device from the
computer that you are using. The first time you connect, you might be
prompted to install the device driver.
The following menu selections are available:
• Sy
stem. Exit the utility.
• T
ools. Access the Control Center Configuration to set up your
shared USB device. See the following section, Control Center
Configuration.
• Abou
t. View details about the USB Control Center software.

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
