NETGEAR D6300 Installation Guide

14
USB Printer
The first time that you use a printer, you need to click Connect. You
might be asked to install the driver for this printer. After the driver is
installed, the printer status changes to Available.
Note: Som
e USB printers (for example: HP and Lexmark printer)
request that you do not connect the USB cable until the installation
software prompts you to do so.
If the USB printer is detected and connected automatically, you need
to discon
nect the printer, and then wait for the prompt asking you to
click Connect.

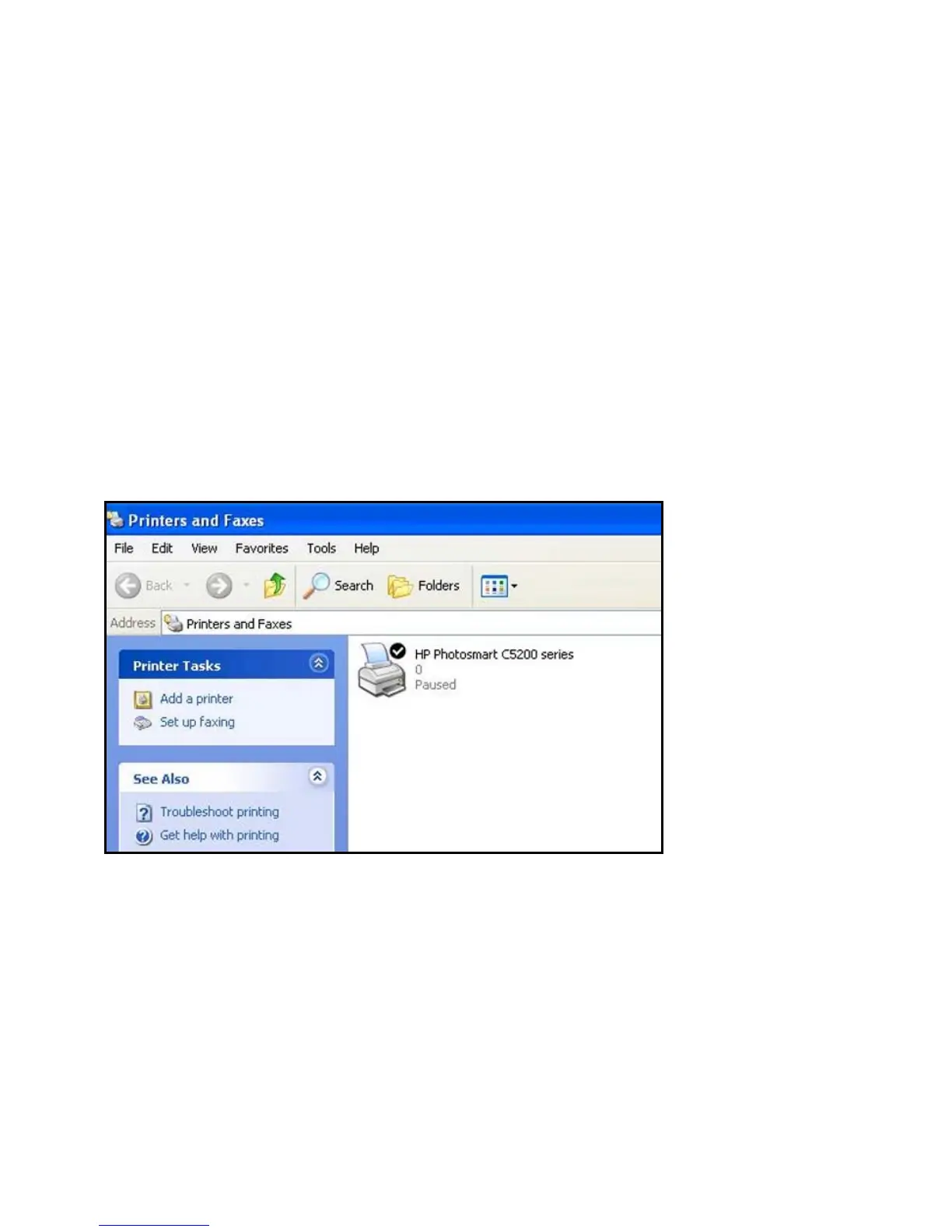

Once the printer shows Available status, the grayed out Paused state
n
o longer displays in the Windows Printers and Faxes window.
This USB printer is ready. The utility does not always need to hold the
connection of this USB printer. Once there is any print job for this
printer, the USB utility connects to this USB printer automatically, then
prints. After the print job is done, the printer status returns to the
Paused state.

NETGEAR D6300 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11ac
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
Frequency range	2.4 - 5 GHz
USB ports quantity	2
Minimum system requirements	Internet Explorer 5.0, Firefox 2.0, Safari 1.4, Google Chrome 11.0
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	WPA, WPA2, WPA2-PSK, WPS
Product color	Black
Flash memory	128 MB
Certification	RoHS, CEC, WEEE, Wi-Fi
Cables included	LAN (RJ-45), Phone (RJ-11)

Weight and Dimensions

Depth	255 mm
Width	205 mm
Height	77 mm
Weight	654 g
