Reference Manual for the Model DG834 ADSL Firewall Router
Introduction 2-7
The Router’s Rear Panel
The rear panel of the DG834 ADSL Firewall Router (Figure 2-2) contains port connections.

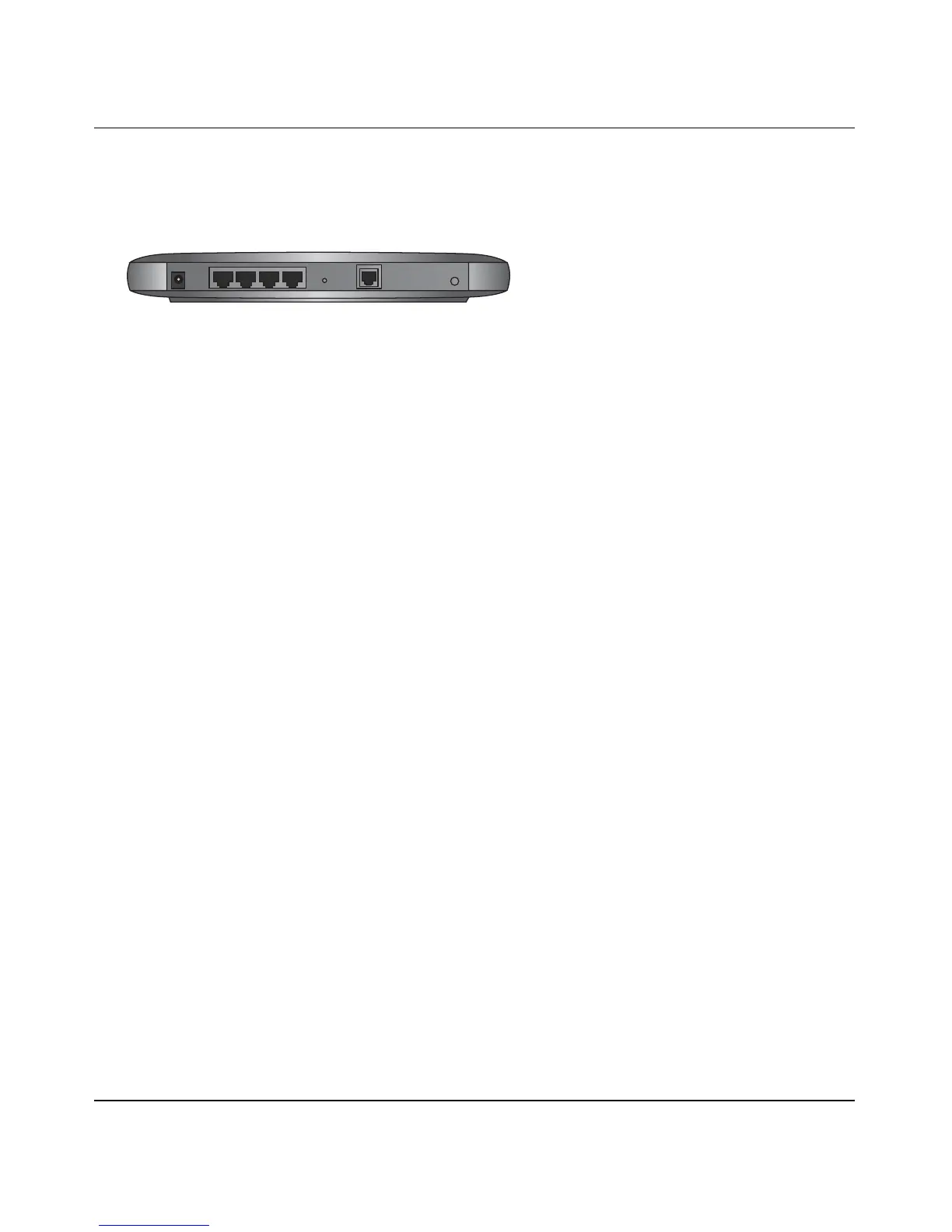

Figure 2-2: DG834 Rear Panel
Viewed from left to right, the rear panel contains the following elements:
• AC power adapter outlet
• Four Local Ethernet RJ-45 ports for connecting the router to the local computers
• Factory Default Reset push button
• ADSL port for connecting the router to an ADSL line
