NETGEAR Nighthawk EX7000 User Manual

Overview
10
AC1900 WiFi Range Extender

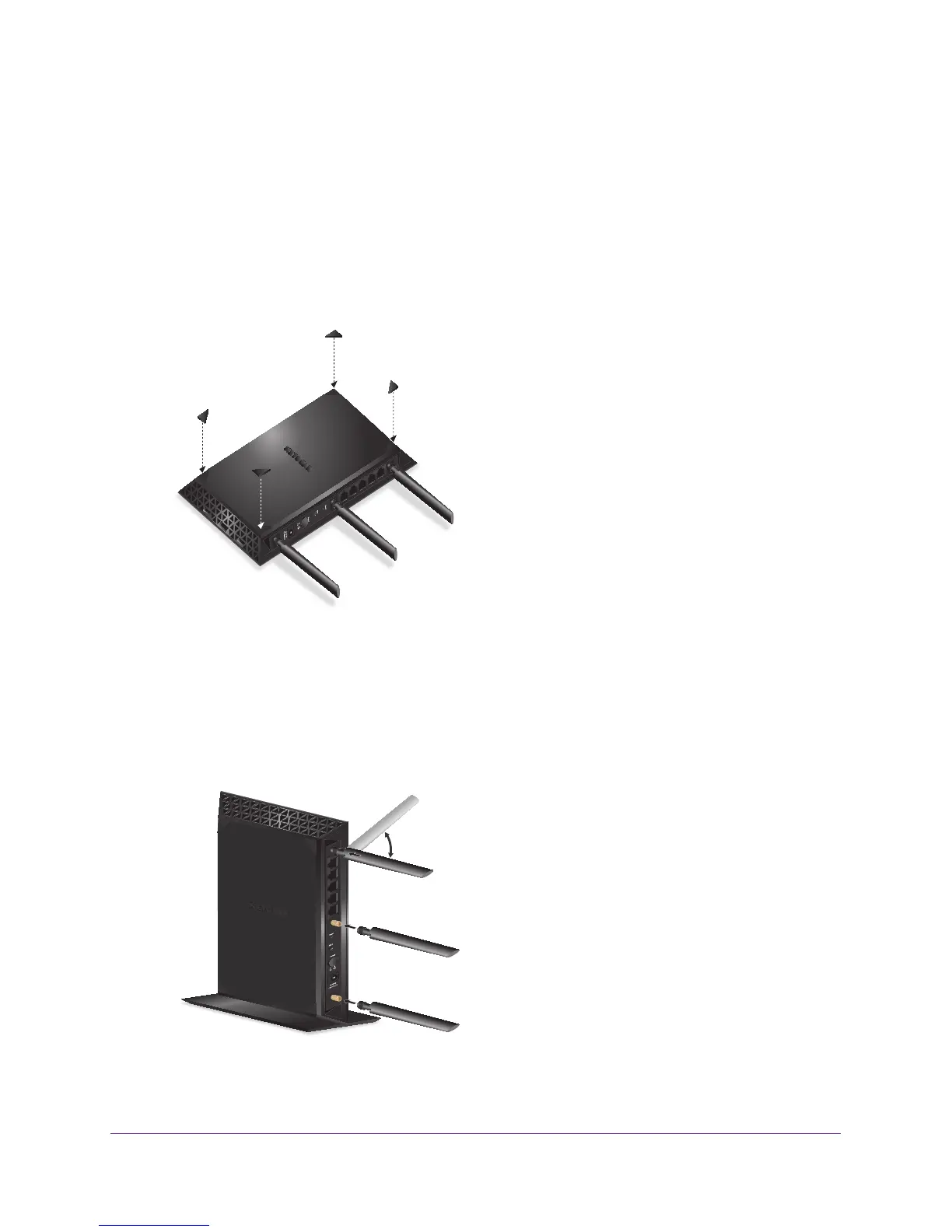

Attach the Rubber Feet
If you prefer to place the extender in horizontal position, you can attach the rubber feet that
come with the extender.
 To attach the rubber feet:
1. Place the extender upside down, with the red panel facing you.
The red panel is the bottom.
2. In each corner, attach a rubber foot in such a way that it covers the triangle.
Attach the Antennas
 To attach the antennas:
1. Align the antennas with the antenna posts on the extender.
2. Attach the antennas on the threaded antenna posts.
3. Position the antennas for the best WiFi performance.

NETGEAR Nighthawk EX7000 Specifications

General

WiFi Technology	802.11ac
Number of Ethernet Ports	5
USB Ports	1 x USB 3.0
Antenna	3 external antennas
Processor	Dual-core 1GHz
WiFi Performance	AC1900
WiFi Band	2.4GHz and 5GHz
Ethernet Port Configuration	10/100/1000Mbps Gigabit Ethernet
Security	WPA/WPA2-PSK
