A login window opens.

3. Enter the modem router user name and password.

The user name is admin.The default password is password.The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > ReadySHARE > Advanced Settings.

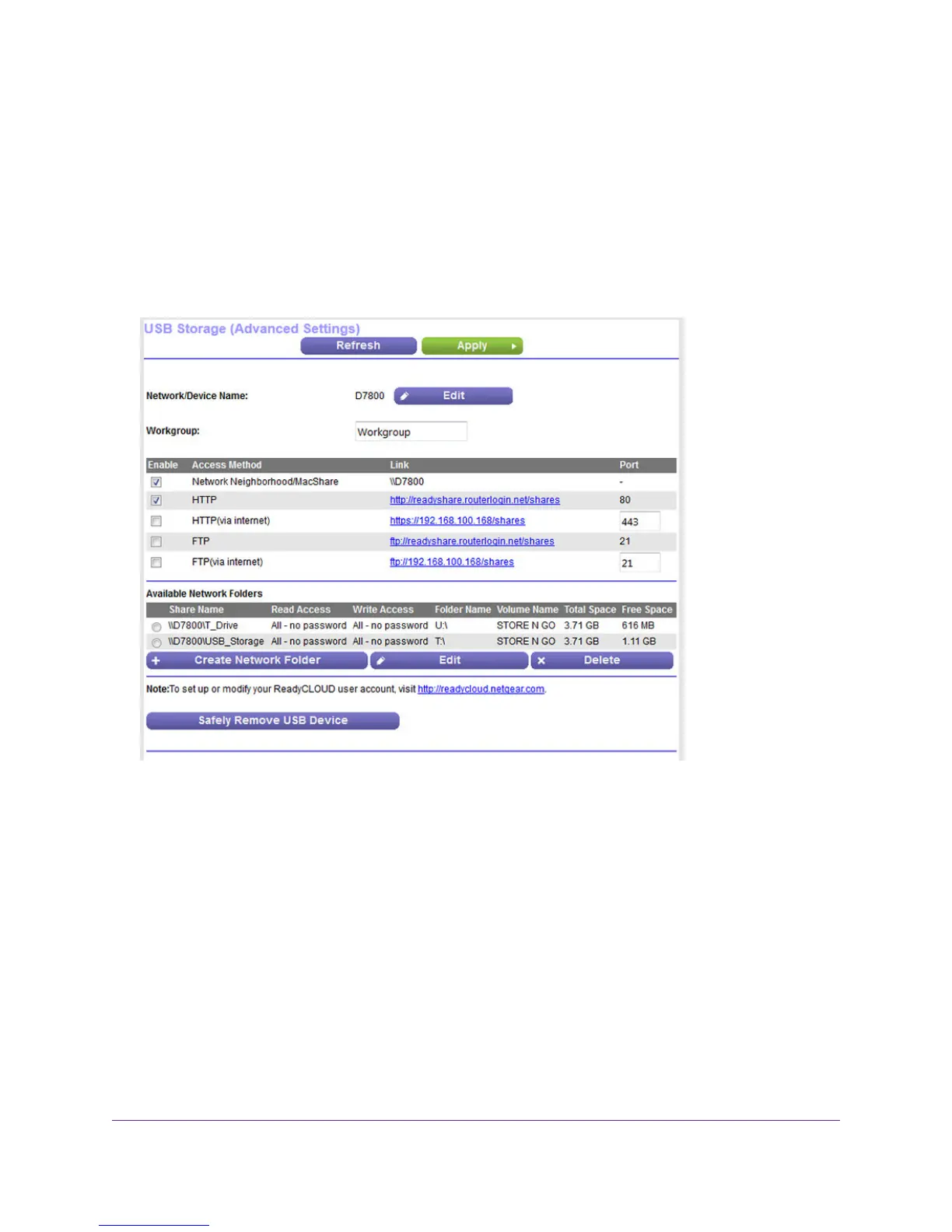

The previous figure shows two USB devices attached to the modem router.

5. In the Available Network Folders table, select a device.

Share a Storage Device

160

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router Model D7800
