Safely Remove a USB Device

Before you physically disconnect a USB device from the USB port on the modem router, log in to the modem router,

and take the drive offline.

To remove a USB device safely:

1. Launch a web browser from a computer or WiFi device that is connected to the network.

2. Enter http://www.routerlogin.net.

A login window opens.

3. Enter the modem router user name and password.

The user name is admin.The default password is password.The user name and password are case-sensitive.

The BASIC Home page displays.

4. Select ADVANCED > ReadySHARE > Advanced Settings.

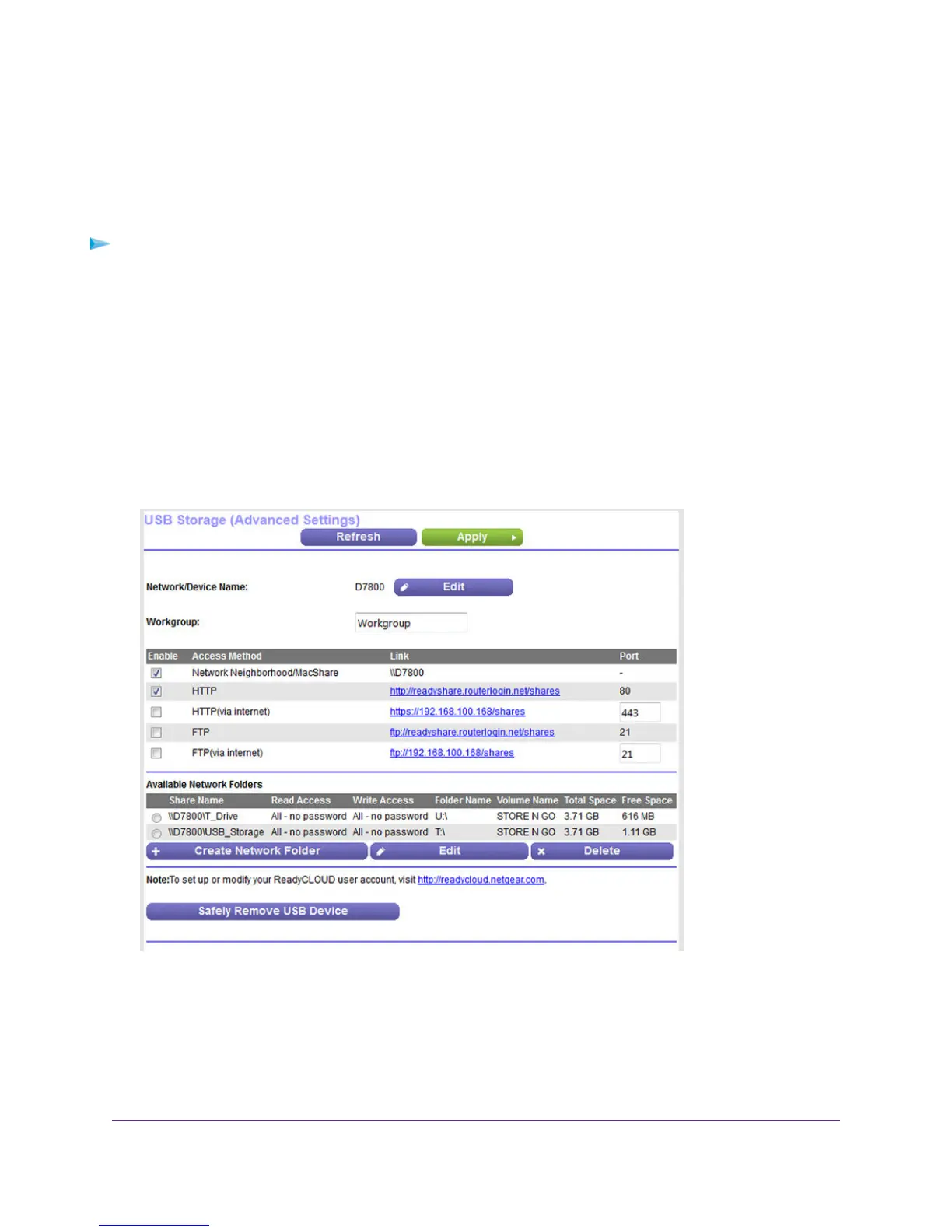

The previous figure shows two USB devices attached to the modem router.

5. In the Available Network Folders table, select a device.

6. Click the Safely Remove USB Device button.

The device goes offline and a pop-up window opens.

Share a Storage Device

165

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router Model D7800
