Figure 5. eSATA port

Connect an eSATA Device

To connect an eSATA device:

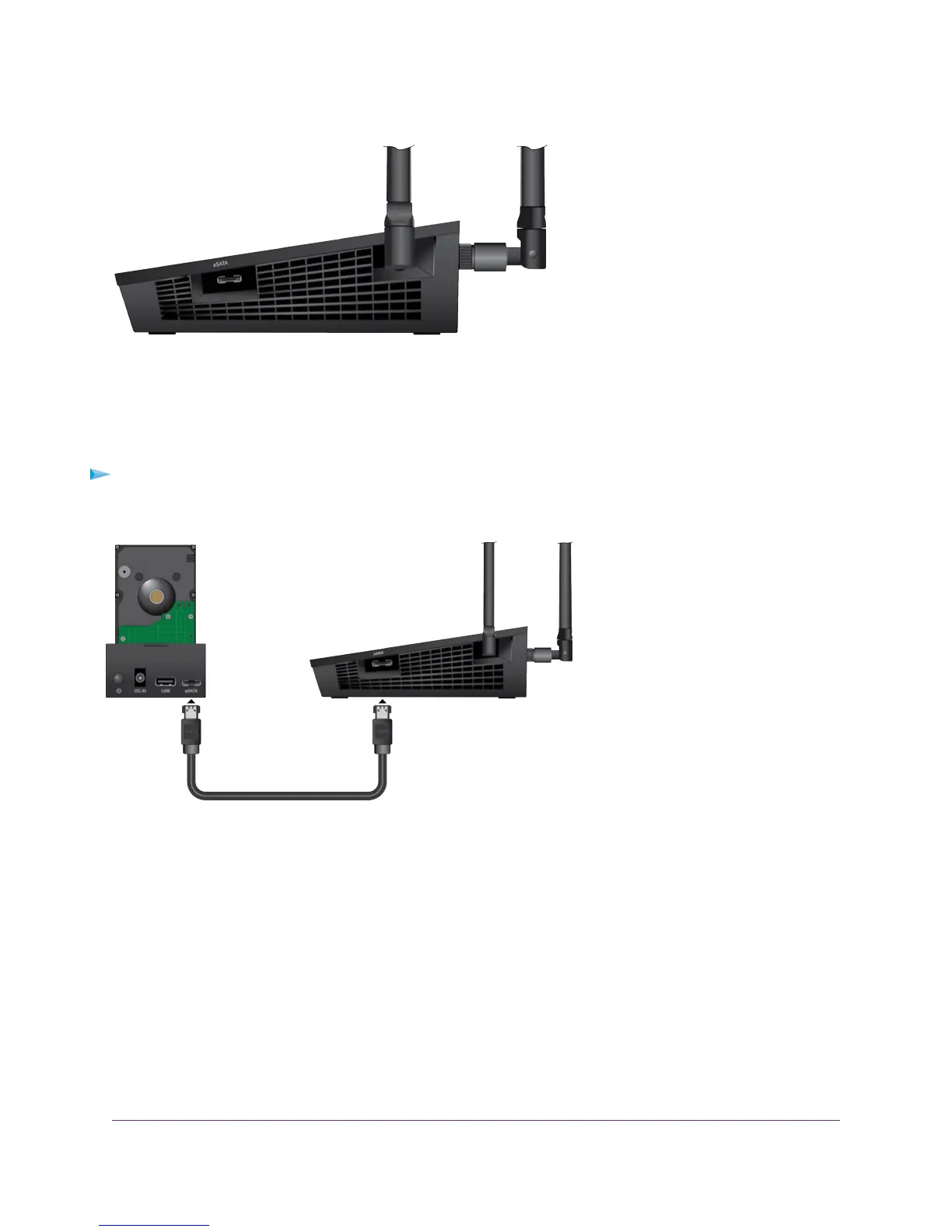

• Use an eSATA cable to connect your device to the eSATA port on the side of the modem router as shown.

Bottom Panel Product Label

The product label on the bottom panel of the modem router lists the login information, WiFi network name (SSID)

and password (network key), serial number, and MAC address of the modem router.

Hardware Overview of the Modem Router

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router Model D7800

Main Page

Default Chapter3
- Table of Contents3
Chapter 1 Hardware Overview of the Modem Router11
- Unpack Your Modem Router11
- Attach the Antennas11
- Top Panel with Leds12
- Back Panel with Ports, Buttons, Connectors, and Switch15
- USB Ports on the Left Panel16
- Esata Port on the Right Panel16
- Connect an Esata Device17
- Bottom Panel Product Label17
