To install the utility:

1. If necessary, unzip the ReadySHARE Printer utility setup file.

2. Double-click the ReadySHARE Printer utility setup file that you downloaded.

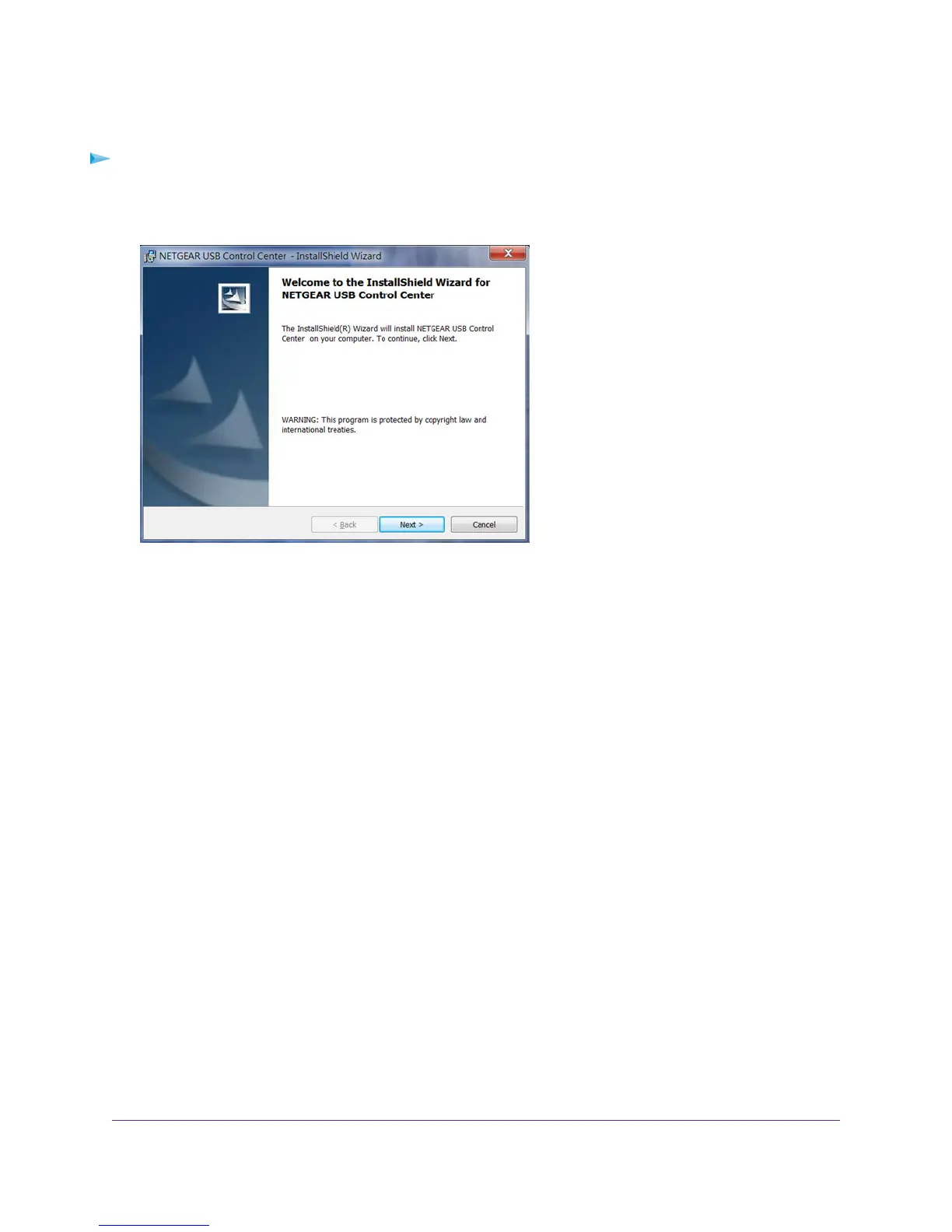

3. Follow the wizard instructions to install NETGEAR USB Control Center.

Share a USB Printer

184

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router Model D7800
