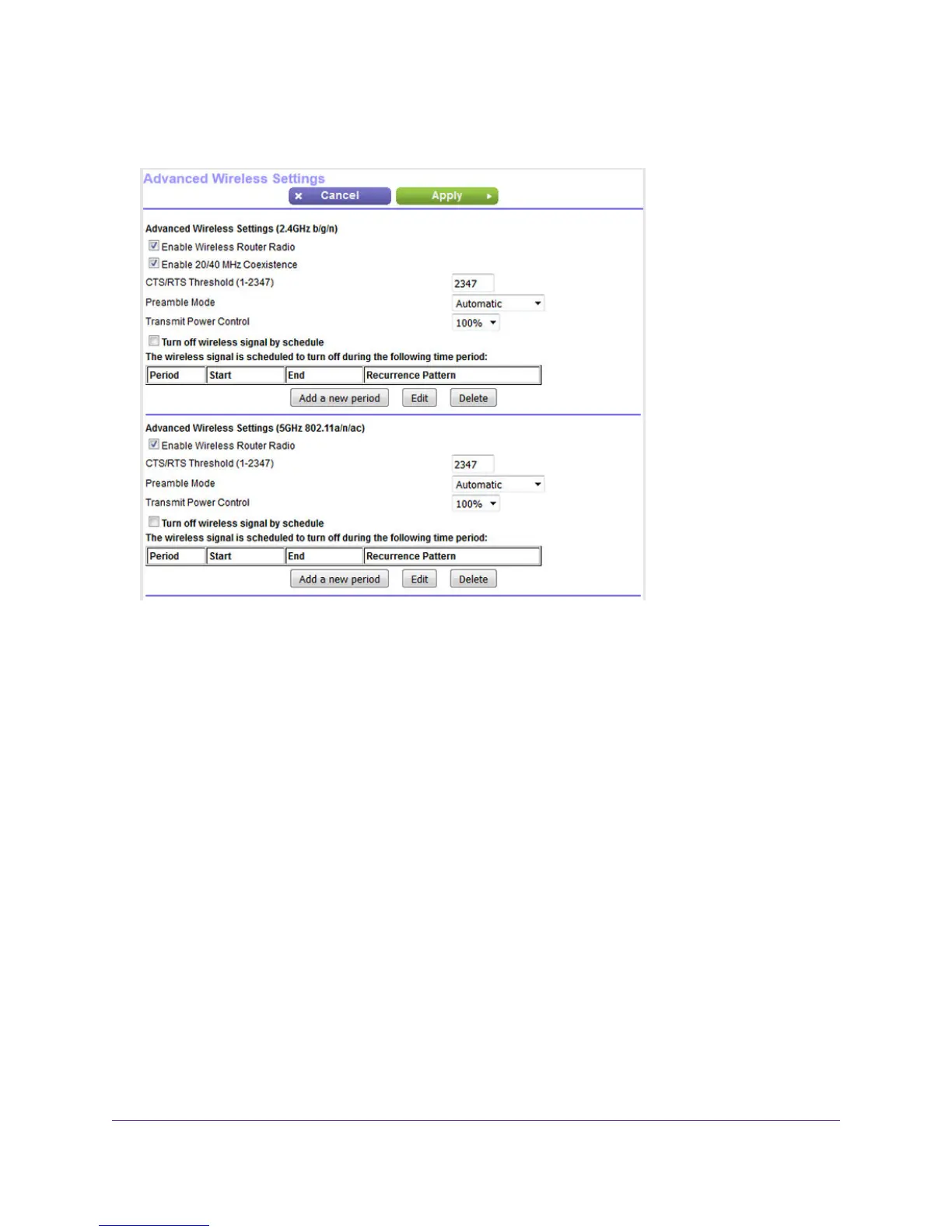

4. Select ADVANCED > Advanced Setup > Wireless Settings.

5. Enter the settings as described in the following table.

With the exception of Enable 20/40 MHz Coexistence, the descriptions in the table (not the settings onscreen)

apply to both the Advanced Wireless Settings (2.4GHz b/g/n) section and the Advanced Wireless Settings

(5GHz 802.11a/n/ac) section.

Manage the Advanced WiFi Features

251

Nighthawk X4S AC2600 WiFi VDSL/ADSL Modem Router Model D7800
