To use the genie app to access the modem router:

1. Visit the NETGEAR genie web page at netgear.com/genie.

2. Click the appropriate Download button.

3. Follow the onscreen instructions to install the app on your smartphone, tablet, or computer.

4. Launch the genie app.

The genie app dashboard displays.

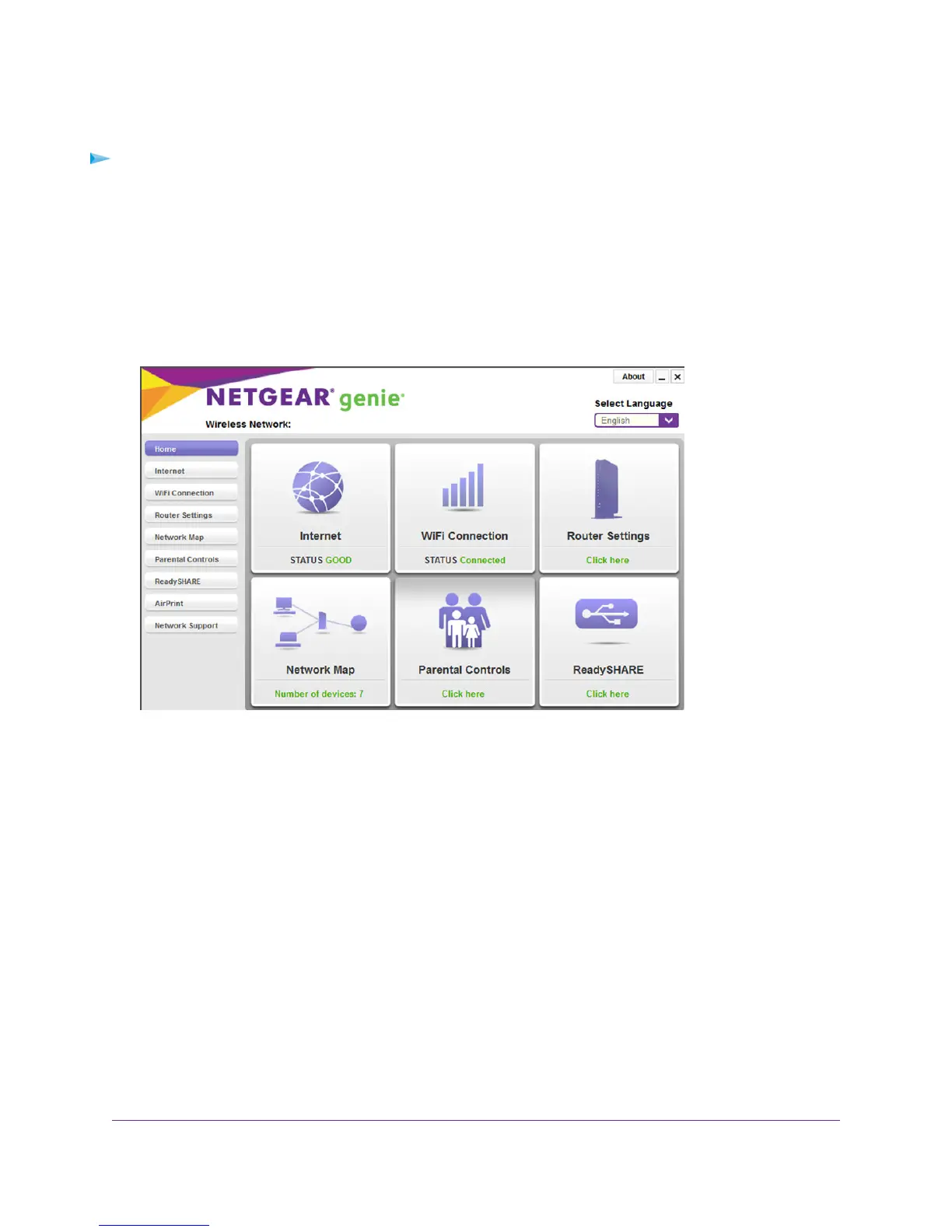

The following figure shows the genie app dashboard for a Windows computer.
