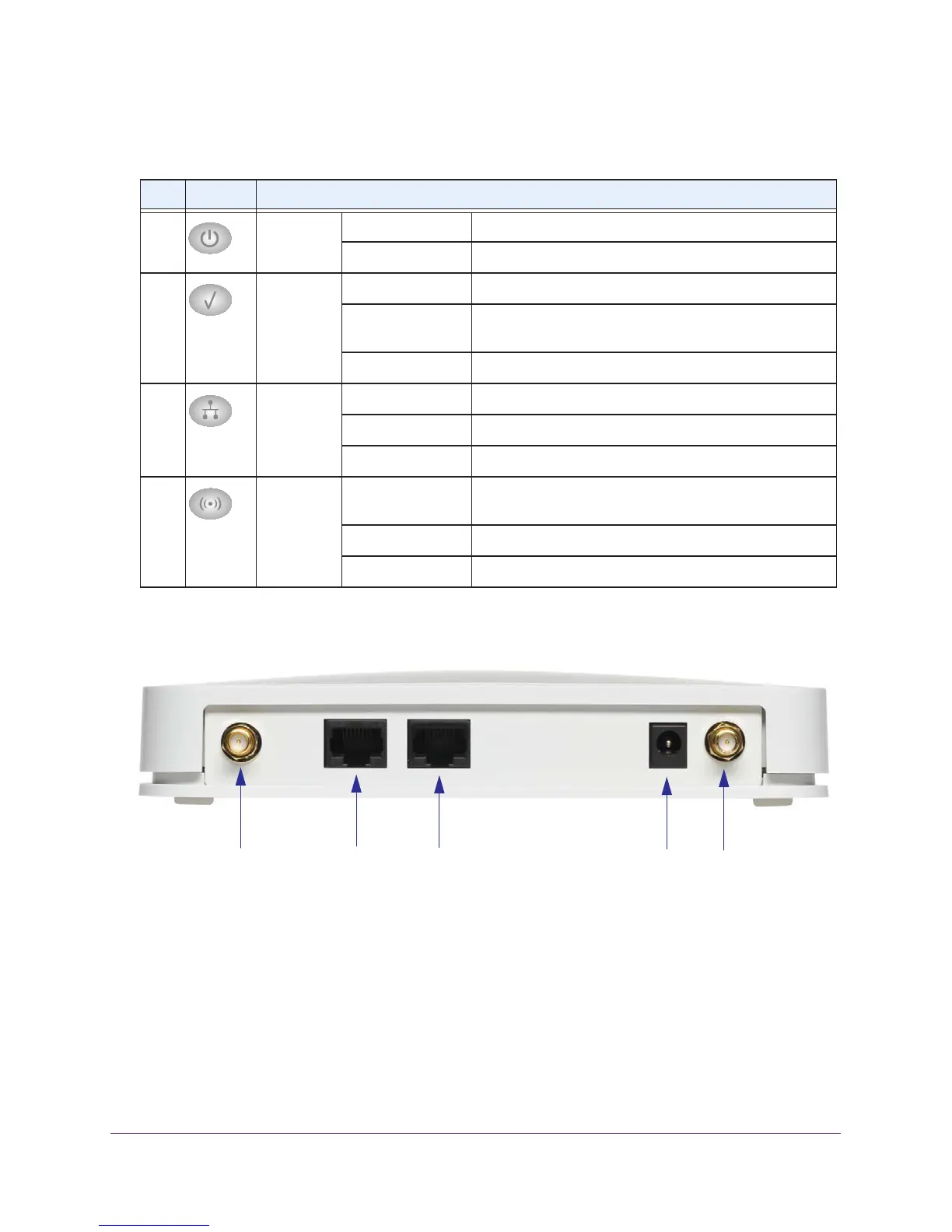

Table 1. Front panel LEDs
Item LED Description
1
Power Off Power is off.
Green Power is on.
2
Test Off The wireless access point functions normally.
Amber The wireless access point is starting. After about one
minute, the LED turns off.
Blinking amber New firmware is being loaded.
3
LAN Off No link is detected on the LAN port.
Amber A 100 Mbps or 10 Mbps link is detected on the LAN port.
Green A 1000 Mbps link is detected on the LAN port.
4
WLAN Off The wireless LAN is not ready, or no wireless activity is
detected.
Blue The wireless LAN is ready.
Blinking Blue Wireless activity is detected.
Introduction
12
ProSAFE Single Band 802.11n Wireless Access Point WN203
Back Panel
1
2
3
4
5
Figure 2. Back panel
The back panel components of the wireless access point, from left to right, are described in
the following list:
1. Reverse SMA connector for an optional 2.4 GHz antenna.
2. Console port for connecting to an optional console terminal. The port has an RJ-45
connector and supports the following settings: 115200 K default baud rate, (8) data bits, no
(N) parity bit, and one (1) stop bit.
3. 10/100/1000BASE-T Gigabit Ethernet RJ-45 LAN port with Auto Uplink (Auto MDI-X) and
IEEE 802.3af Power over Ethernet (PoE) support for connection to a switch or router.
