Hardware Setup
10
AC1750 Smart WiFi Router
Top and Front Panels
The router includes status LEDs on top and a USB 3.0-Storage port on the front.
USB 3.0-Storage port

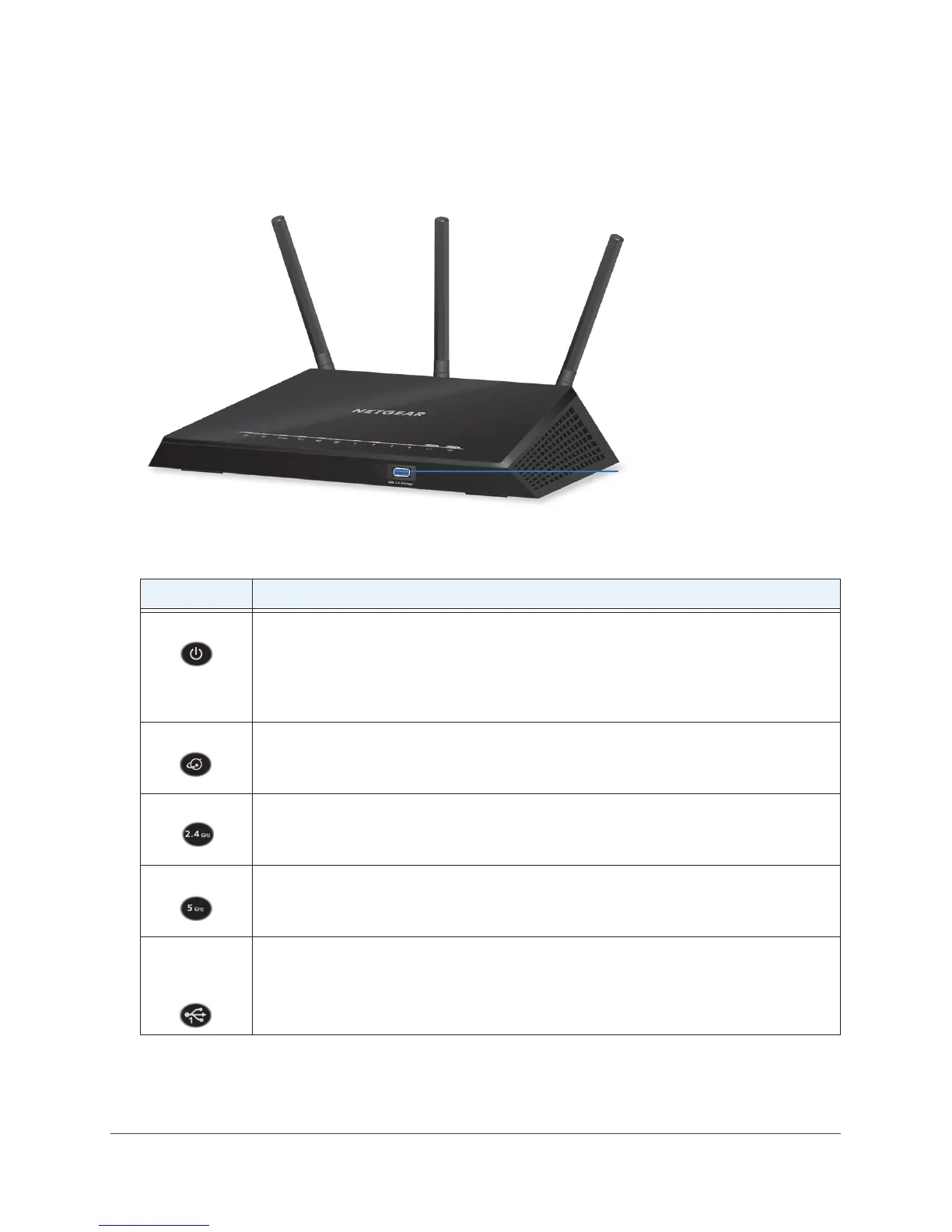

Figure 2. Router top and front view
Table 1. LED and button descriptions
LED Description
Power
• Solid amber. The router is starting.
• Blinking amber. The
firmware is upgrading, or the Reset button was pressed.
• Solid white. The
router is ready.
• Blinking white. The
firmware is corrupted.
• Off. Power is not supplied to the router.
Internet
• Solid white. The Internet connection is ready.
• Solid amber.
The router detected an Ethernet cable connection to the modem.
• Off. No Ethernet cable is connected between the router and the modem.
2.4 GHz WiFi
• Solid white. The 2.4 GHz WiFi radio is operating.
• Blinking. The
router is sending or receiving WiFi traffic.
• Off.
The 2.4 GHz WiFi radio is off.
5 GHz WiFi
• Solid white. The 5 GHz WiFi radio is operating.
• Blinking. The
router is sending or receiving WiFi traffic.
• Off. The
5 GHz WiFi radio is off.
USB
3.0-Storage
port)
• Solid white. A USB device is connected and is ready.
• Blinking.
A USB device is plugged in and is trying to connect.
• Off. No USB device is connected, or someone clicked the Safely Remove Hardware
button, and it is now safe to remove the attached USB device.
