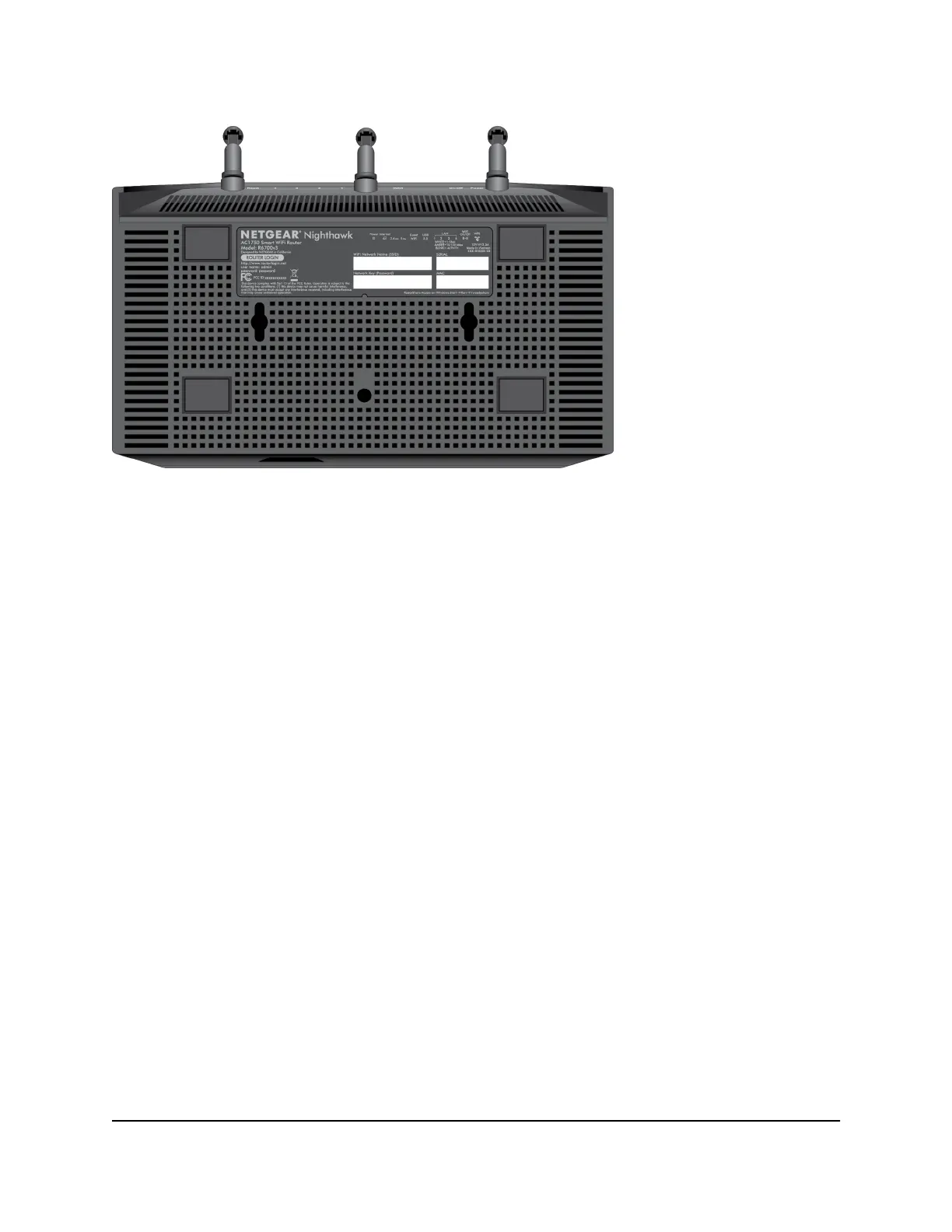

Figure 6. Bottom of the router
Note: We recommend using pan head Phillips wood screws, 3.5 x 20 mm (diameter x
length, European) or No. 6 type screw, 1 inch long (U.S.).
To wall-mount your router:
1. Drill holes in the wall where you want to wall-mount your router.
2. Insert wall anchors in the holes.
3.
Insert screws into the wall anchors, leaving 3/16 inch (0.5 cm) of each screw exposed.
4. Align the router’s wall-mounting holes with the screws and mount your router.
User Manual16Hardware Setup
Nighthawk AC1750 Smart WiFi Router
