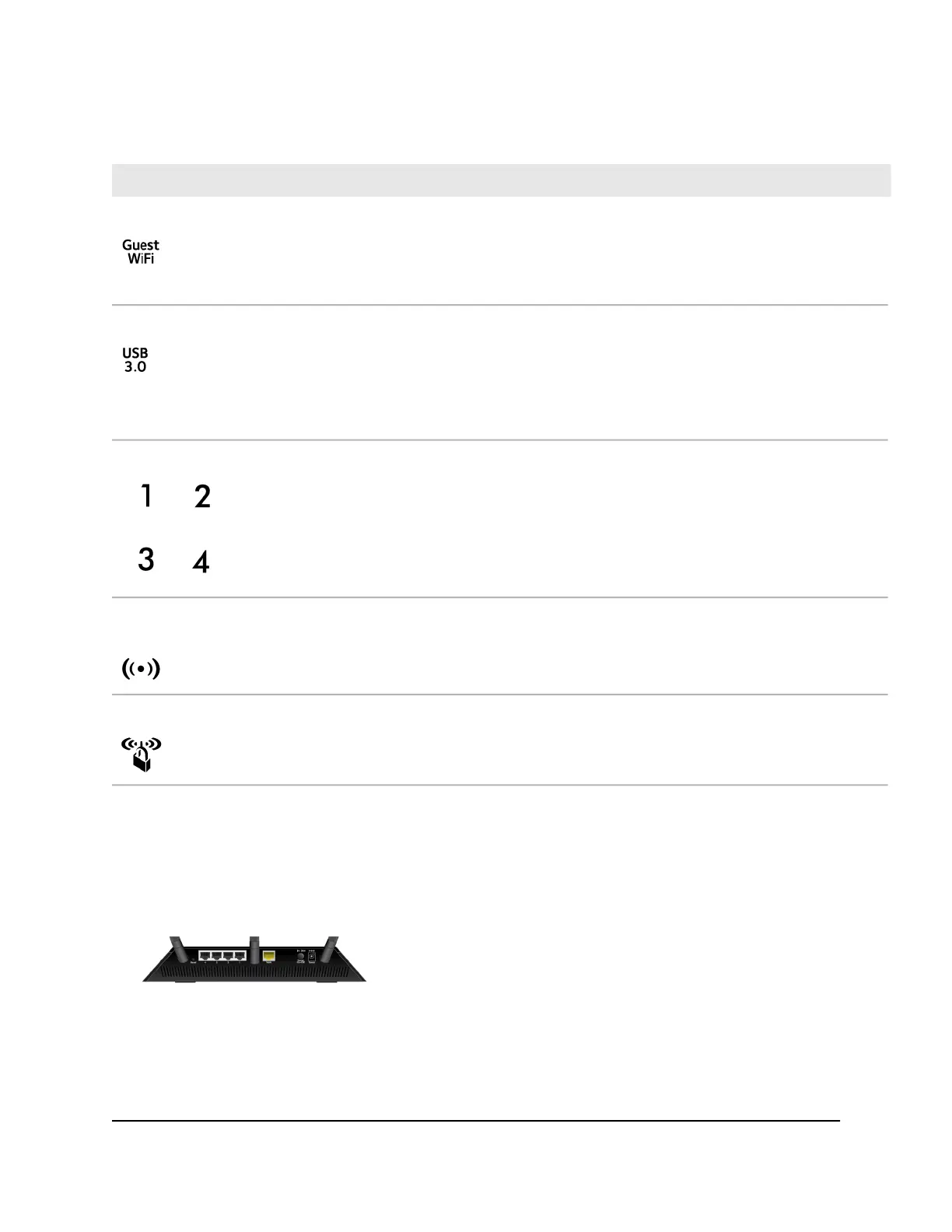

Table 1. LED descriptions (Continued)
DescriptionLED
Guest WiFi Guest WiFi network allows visitors at your home to use the Internet without using your WiFi
security key. You can add a guest network for 2.4 GHz WiFi band and 5 GHz WiFi band.
•
Solid white. The guest WiFi network is operating.
•
Off. The guest WiFi network is off.
The USB 3.0 LED is for the USB 3.0 USB port.
•
Solid white. A USB device is connected and is ready.
•
Blinking. A USB device is plugged in and is trying to connect.
•
Off. No USB device is connected, or someone clicked the Safely Remove Hardware
button and it is now safe to remove the attached USB device.
USB 3.0 port
The LED color indicates the speed: white for Gigabit Ethernet connections and amber for
100 Mbps or 10 Mbps Ethernet connections.
•
Solid. A powered-on device is connected to the Ethernet port.
•
Blinking. The port is sending or receiving traffic.
•
Off. No device is connected to this Ethernet port.
Ethernet ports 1–4
Pressing this button for two seconds turns the 2.4 GHz and 5 GHz WiFi radios on and off.
If this LED is lit, the WiFi radios are on. If this LED is off, the WiFi radios are turned off and
you cannot use WiFi to connect to the router.
WiFi On/Off button with
LED
This button lets you use WPS to join the WiFi network without typing the WiFi password.
The WPS LED blinks white during this process and then lights solid white.
WPS button with LED
Rear Panel
The rear panel connections and buttons are shown in the following figure.
Figure 3. Rear panel
User Manual12Hardware Setup
