Reference Manual for the Model RP614 v2 Web Safe Router
Introduction 1-5
The Router’s Front Panel

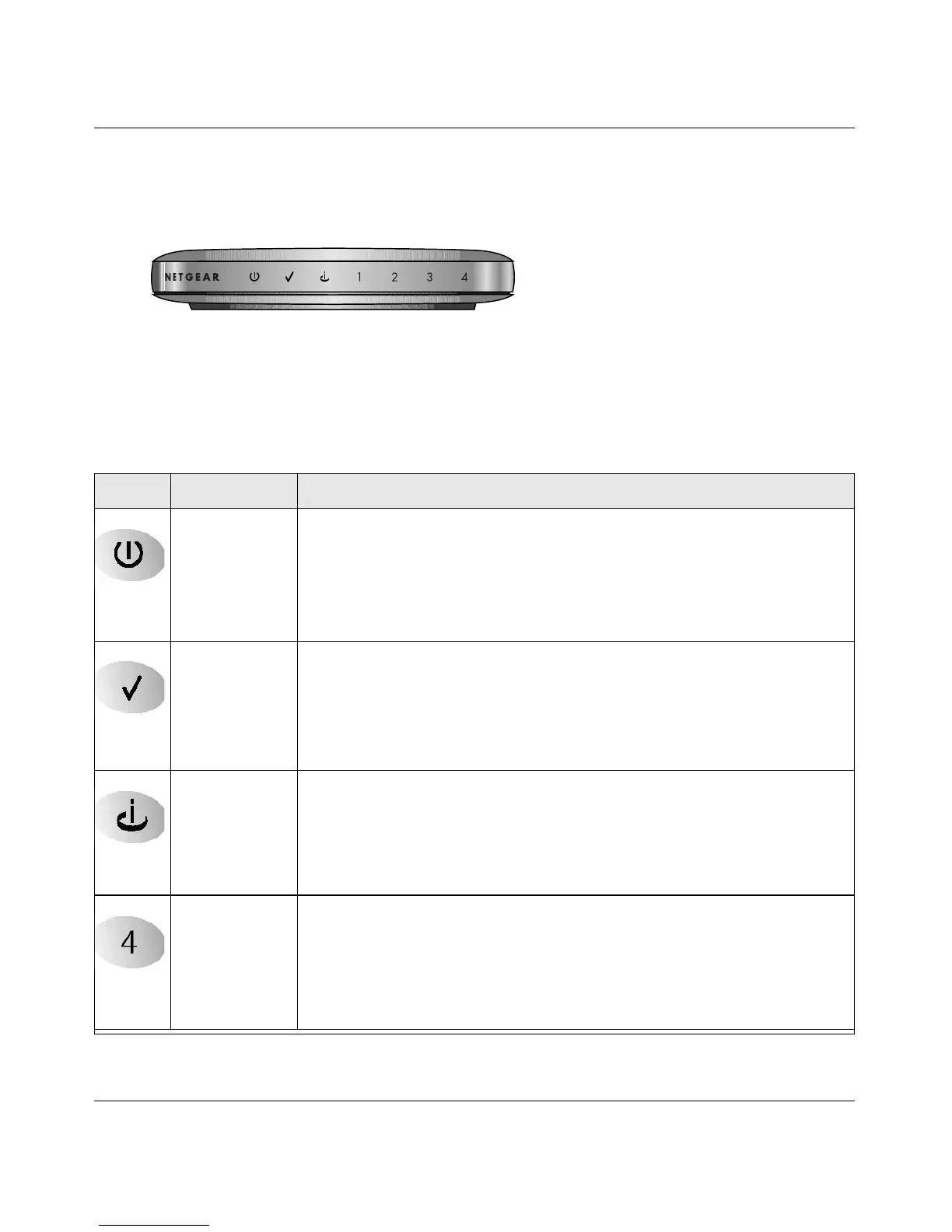

The front panel of the Model RP614 v2 Web Safe Router (Figure 1-1) contains status LEDs.
Figure 1-1: RP614 Front Panel
You can use some of the LEDs to verify connections. Viewed from left to right, Table 2 describes
the LEDs on the front panel of the router. These LEDs are green when lit.
Table 2. LED Descriptions
Label Activity Description
Power
On
Off
Power is supplied to the router.
Power is not supplied to the router.
Test
On
Off
The system is initializing.
The system is ready and running.
Internet
On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Internet (WAN) port has detected a 100 Mbps link with an attached device.
Data is being transmitted or received by the Internet port.
The Internet (WAN) port has detected a 10 Mbps link with an attached device.
Data is being transmitted or received by the Internet port.
The Internet (WAN) port in not connected or the electric power to the device to
which it is connected is turned off.
Local
On (Green)
Blink (Green)
On (Amber)
Blink (Amber)
Off
The Local (LAN) port has detected link with a 100 Mbps device.
Data is being transmitted or received at 100 Mbps.
The Local port has detected link with a 10 Mbps device.
Data is being transmitted or received at 10 Mbps.
No link is detected on this port.

NETGEAR RP614 - Web Safe Router Specifications

General

Brand	NETGEAR
Model	RP614 - Web Safe Router
Category	Network Router
Language	English
