Reference Manual for the Model RP614 v2 Web Safe Router
1-6 Introduction
The Router’s Rear Panel

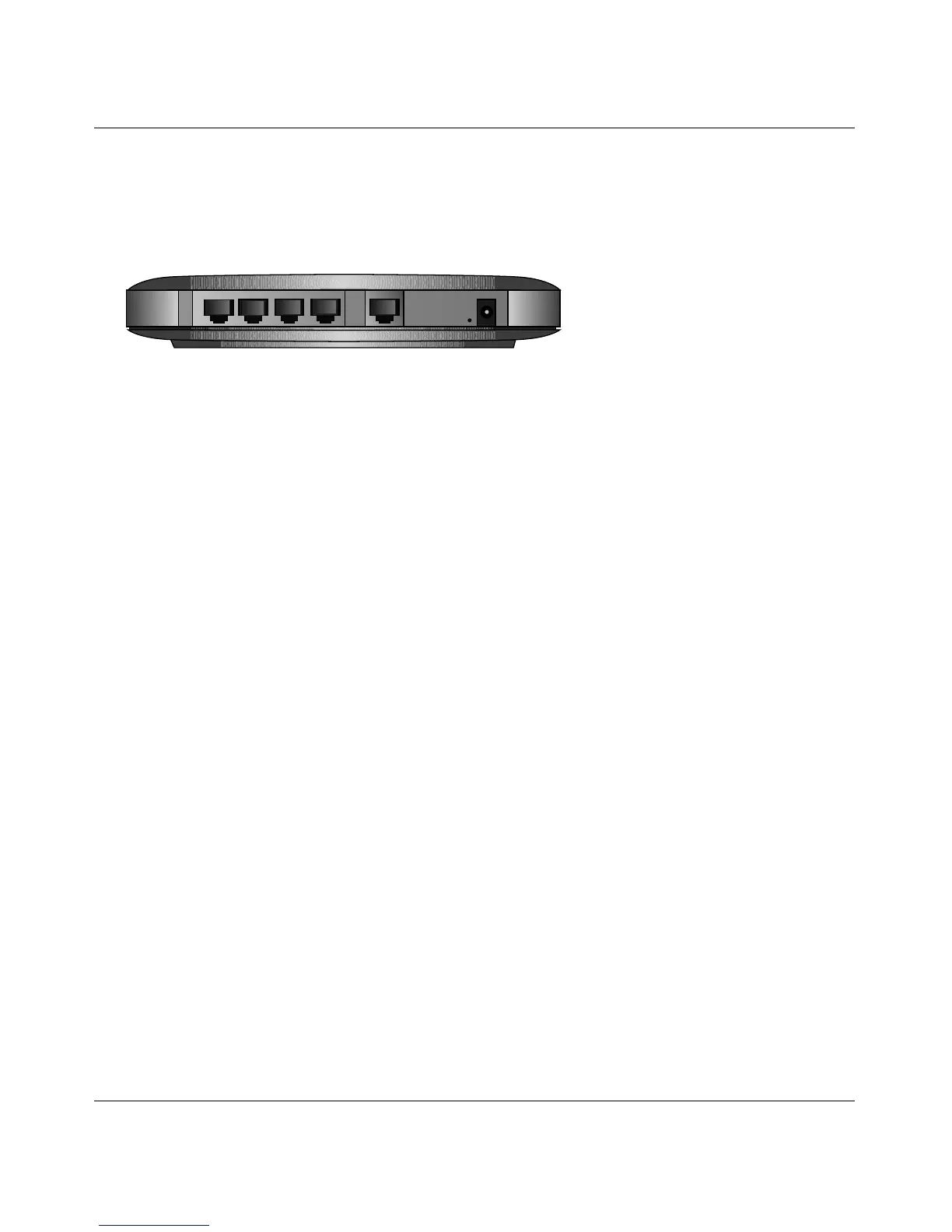

The rear panel of the Model RP614 router (Figure Figure 1-2:) contains port connections.
Figure 1-2: RP614 Rear Panel
Viewed from left to right, the rear panel contains the following features:
• Four Local (LAN) Ethernet ports for connecting the router to the local PCs
• Internet (WAN) Ethernet port for connecting the router to a cable or DSL modem
• Factory Default Reset push button
• AC power adapter outlet
