NETGEAR WGR614 v4 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v4
Preparing Your Network C-17
December 2003
2. If not already selected, select Built-in Ethernet in the Configure list.
3. If not already selected, Select Using DHCP in the TCP/IP tab.
4. Click Save.
Verifying TCP/IP Properties for Macintosh Computers

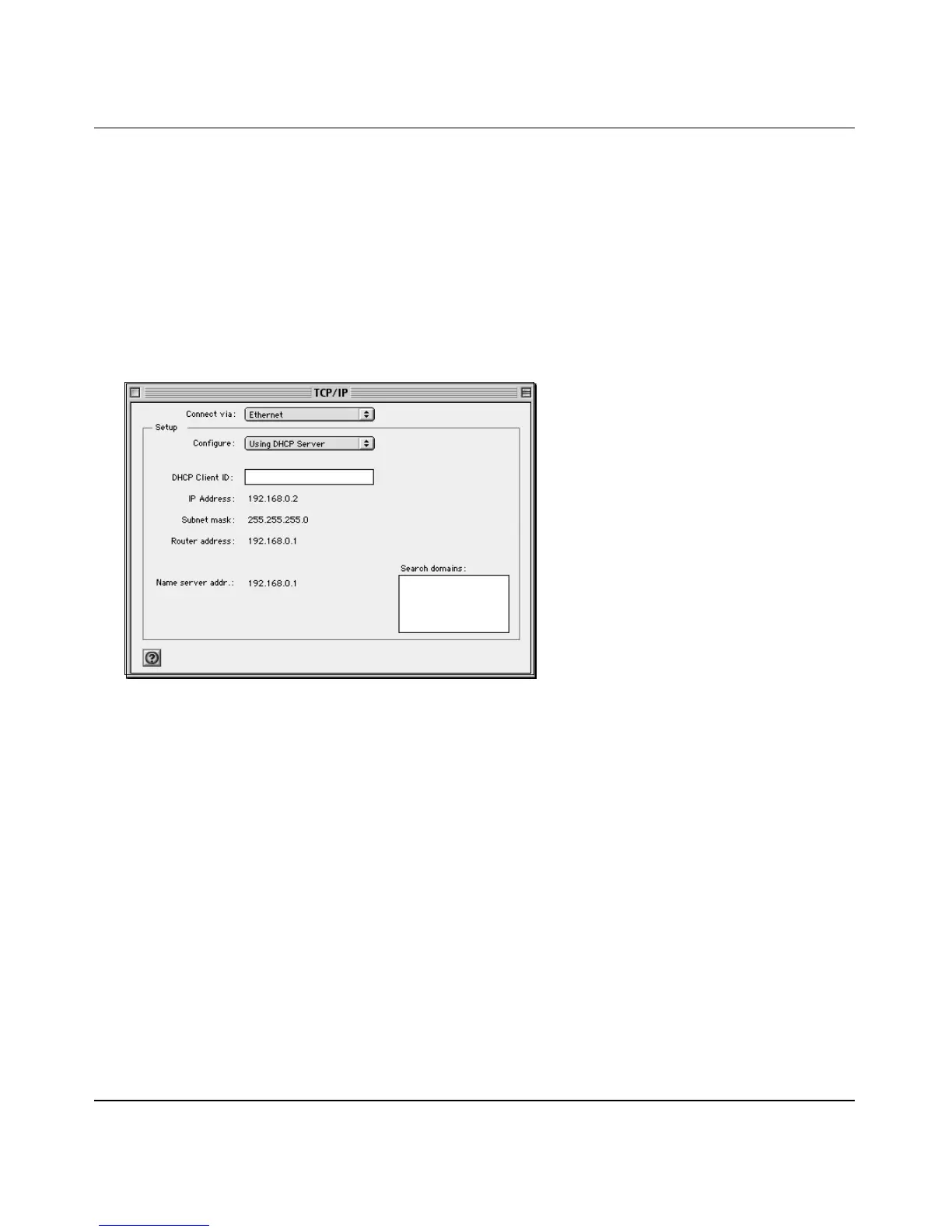

After your Macintosh is configured and has rebooted, you can check the TCP/IP configuration by
returning to the TCP/IP Control Panel. From the Apple menu, select Control Panels, then TCP/IP.
The panel is updated to show your settings, which should match the values below if you are using
the default TCP/IP settings that NETGEAR recommends:
• The IP Address is between 192.168.0.2 and 192.168.0.254
• The Subnet mask is 255.255.255.0
• The Router address is 192.168.0.1
If you do not see these values, you may need to restart your Macintosh or you may need to switch
the “Configure” setting to a different option, then back again to “Using DHCP Server”.

NETGEAR WGR614 v4 Specifications

General

Wireless Protocol	802.11g
Frequency Band	2.4 GHz
Wireless Speed	54 Mbps
Security	WEP, WPA, WPA2
Antennas	1 external
Ports	4 LAN ports, 1 WAN port
WAN Port Type	Ethernet (RJ-45)
LAN Port Type	Ethernet (RJ-45)
Firewall	NAT, SPI
Weight	0.66 lbs
