NETGEAR WGR614 v4 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v4
Advanced Configuration 6-7
December 2003
Using LAN IP Setup Options
The LAN IP Setup feature is under the Advanced heading of the main menu. This feature allows
configuration of LAN IP services such as DHCP and RIP. From the Main Menu of the browser
interface, under Advanced, click on LAN IP Setup to view the LAN IP Setup menu, shown below.

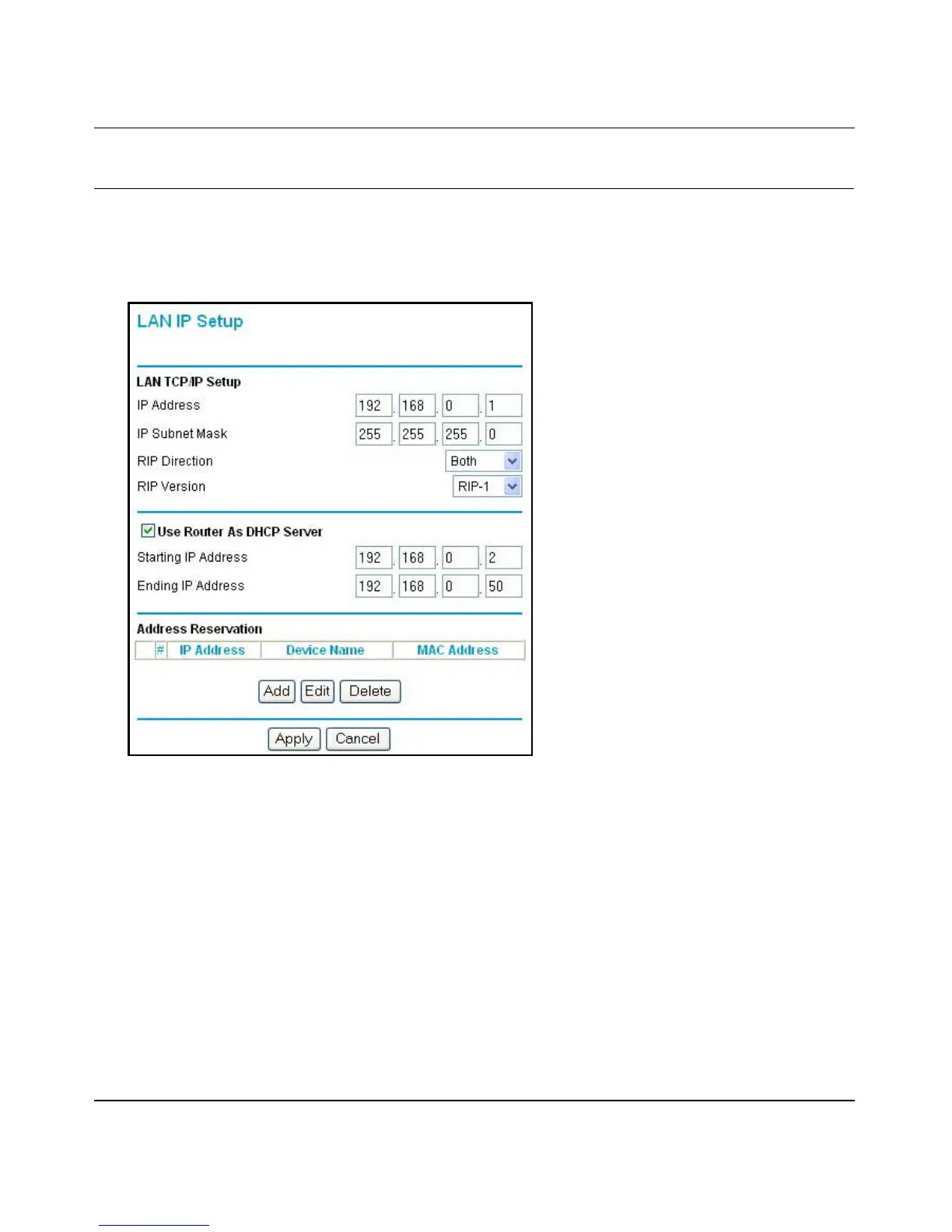

Figure 6-3: LAN IP Setup Menu
The router is shipped preconfigured to use private IP addresses on the LAN side, and to act as a
DHCP server. The router’s default LAN IP configuration is:
• LAN IP addresses—192.168.0.1
• Subnet mask—255.255.255.0
These addresses are part of the IETF-designated private address range for use in private networks,
and should be suitable in most applications. If your network has a requirement to use a different IP
addressing scheme, you can make those changes in this menu.
The LAN IP parameters are:

NETGEAR WGR614 v4 Specifications

General

Wireless Protocol	802.11g
Frequency Band	2.4 GHz
Wireless Speed	54 Mbps
Security	WEP, WPA, WPA2
Antennas	1 external
Ports	4 LAN ports, 1 WAN port
WAN Port Type	Ethernet (RJ-45)
LAN Port Type	Ethernet (RJ-45)
Firewall	NAT, SPI
Weight	0.66 lbs
