NETGEAR WGR614 v4 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v4
Wireless Configuration 3-3
December 2003
• Turn Off the Wired LAN. If you disable the wireless LAN, wireless devices cannot
communicate with the router at all. You might choose to turn off the wireless the LAN when
you are away and the others in the household all use wired connections.
Understanding Wireless Settings
To configure the Wireless settings of your firewall, click the Wireless link in the main menu of the
browser interface. The Wireless Settings menu will appear, as shown below.

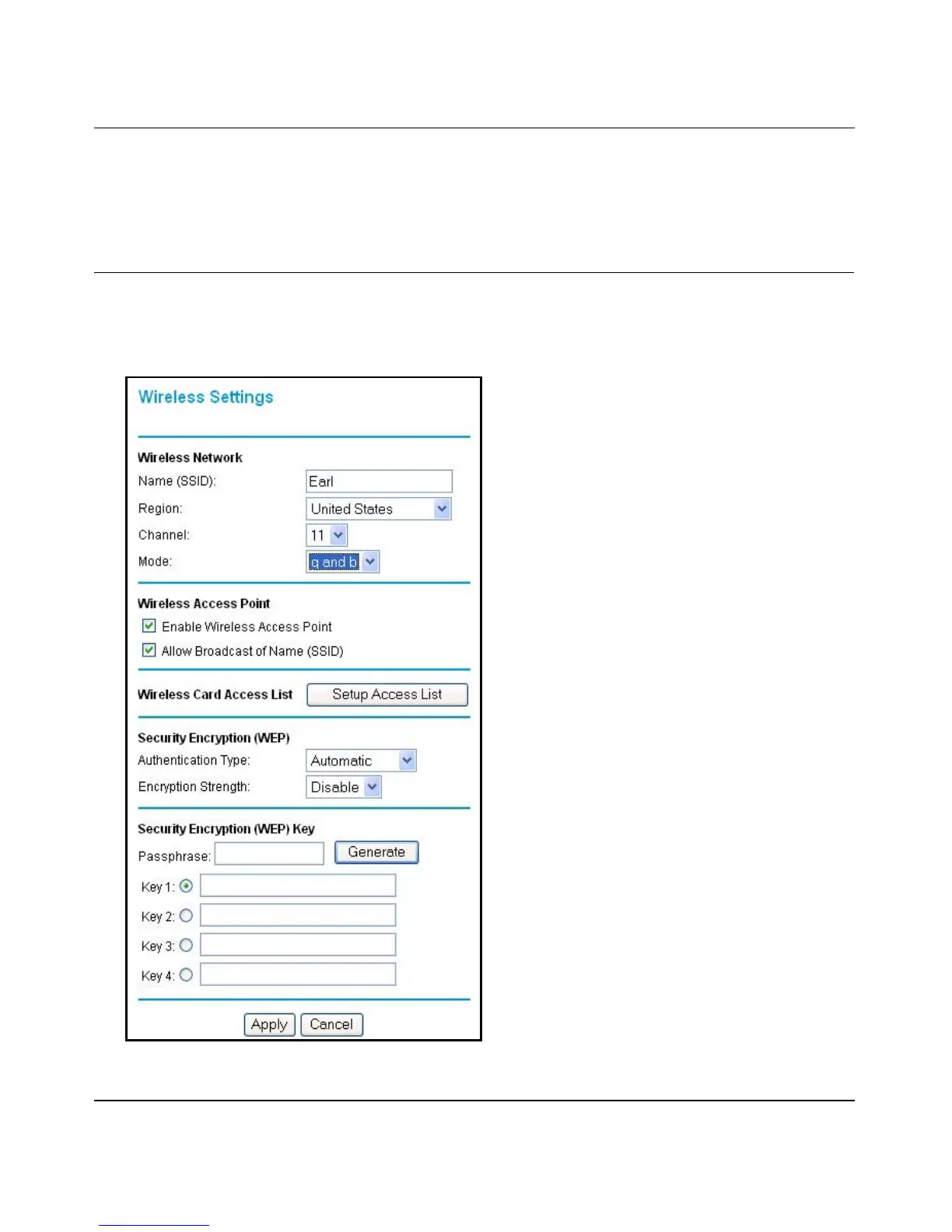

Figure 3-2: Wireless Settings menu

NETGEAR WGR614 v4 Specifications

General

Wireless Protocol	802.11g
Frequency Band	2.4 GHz
Wireless Speed	54 Mbps
Security	WEP, WPA, WPA2
Antennas	1 external
Ports	4 LAN ports, 1 WAN port
WAN Port Type	Ethernet (RJ-45)
LAN Port Type	Ethernet (RJ-45)
Firewall	NAT, SPI
Weight	0.66 lbs
