NETGEAR WGR614 v4 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v4
Content Filtering 4-5
December 2003
• Days to Block. Select days to block by checking the appropriate boxes. Select Everyday to
check the boxes for all days. Click Apply.
• Time of Day to Block. Select a start and end time in 23:59 format. Select All day for 24 hour
blocking. Click Apply.
Note: Be sure to select your time zone in the E-Mail menu.
Viewing Logs of Web Access or Attempted Web Access
The log is a detailed record of what websites you have accessed or attempted to access. Up to 128
entries are stored in the log. Log entries will only appear when keyword blocking is enabled, and
no log entries will be made for the Trusted User. An example is shown below:

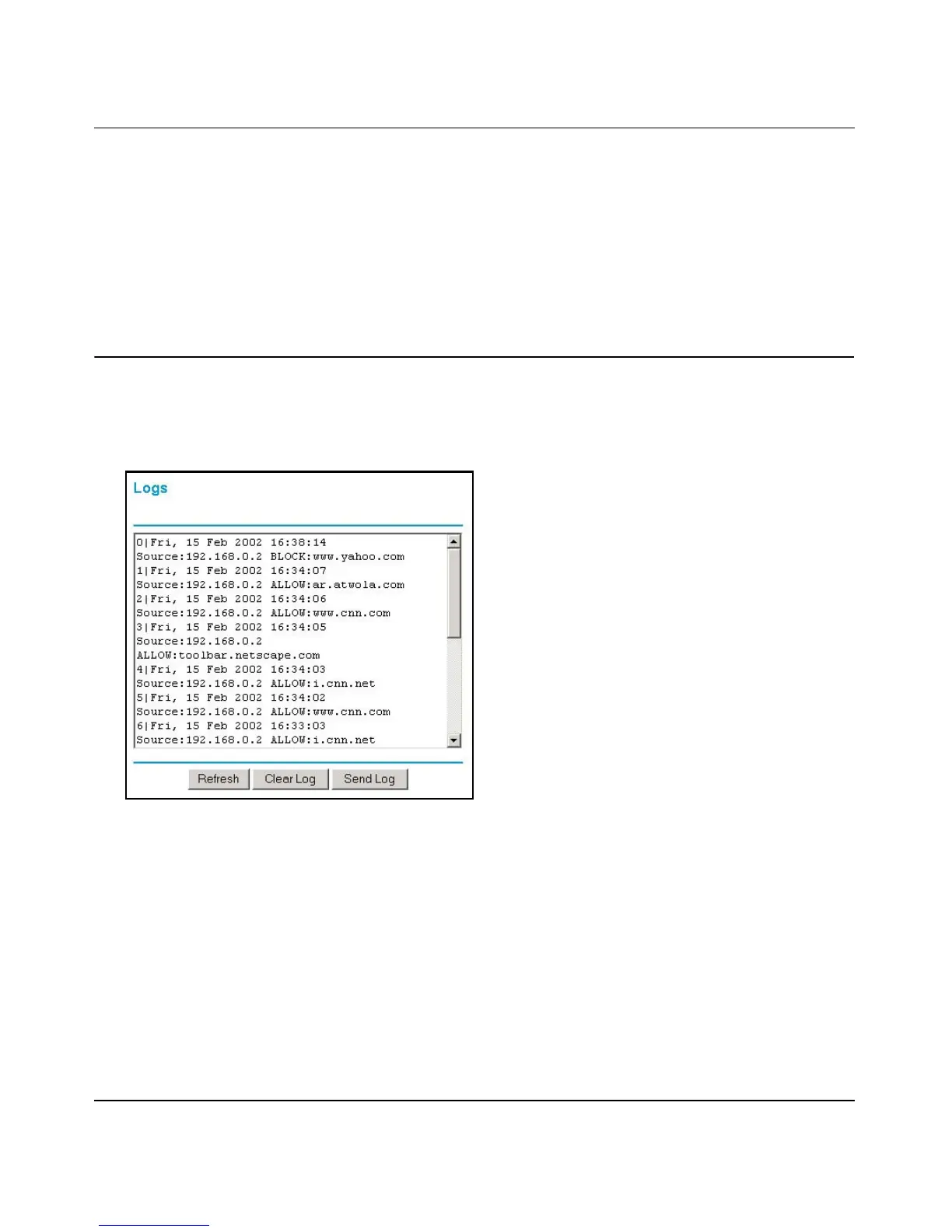

Figure 4-5: Logs menu

NETGEAR WGR614 v4 Specifications

General

Wireless Protocol	802.11g
Frequency Band	2.4 GHz
Wireless Speed	54 Mbps
Security	WEP, WPA, WPA2
Antennas	1 external
Ports	4 LAN ports, 1 WAN port
WAN Port Type	Ethernet (RJ-45)
LAN Port Type	Ethernet (RJ-45)
Firewall	NAT, SPI
Weight	0.66 lbs
