NETGEAR WGR614 v4 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v4
2-14 Connecting the Router to the Internet
December 2003
Note: After you finish setting up your router, you will no longer need to launch the ISP’s login
program on your PC in order to access the Internet. When you start an Internet application,
your router will automatically log you in.
a. Select you Internet service provisory from the drop-down list.

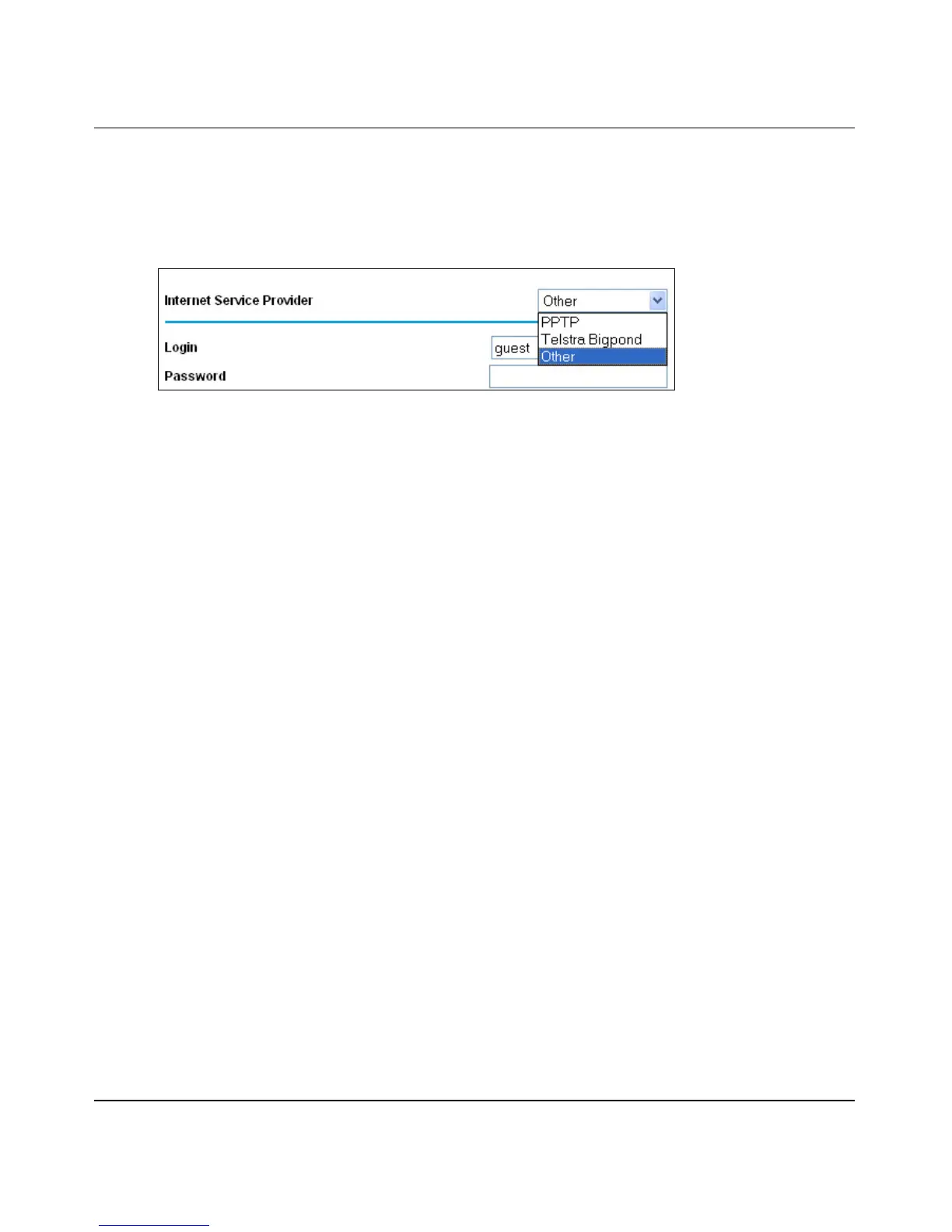

Figure 2-12: Basic Settings ISP list
b.
The screen will change according to the ISP settings requirements of the ISP you select.
c. Fill in the parameters for your ISP according to the Wizard-detected procedures starting on
page 2-3.
d. Click Apply to save your settings.

NETGEAR WGR614 v4 Specifications

General

Wireless Protocol	802.11g
Frequency Band	2.4 GHz
Wireless Speed	54 Mbps
Security	WEP, WPA, WPA2
Antennas	1 external
Ports	4 LAN ports, 1 WAN port
WAN Port Type	Ethernet (RJ-45)
LAN Port Type	Ethernet (RJ-45)
Firewall	NAT, SPI
Weight	0.66 lbs
