NETGEAR WGR614 v6 User Manual

Reference Manual for the 54 Mbps Wireless Router WGR614 v6
Preparing Your Network C-11
202-10099-01, April 2005

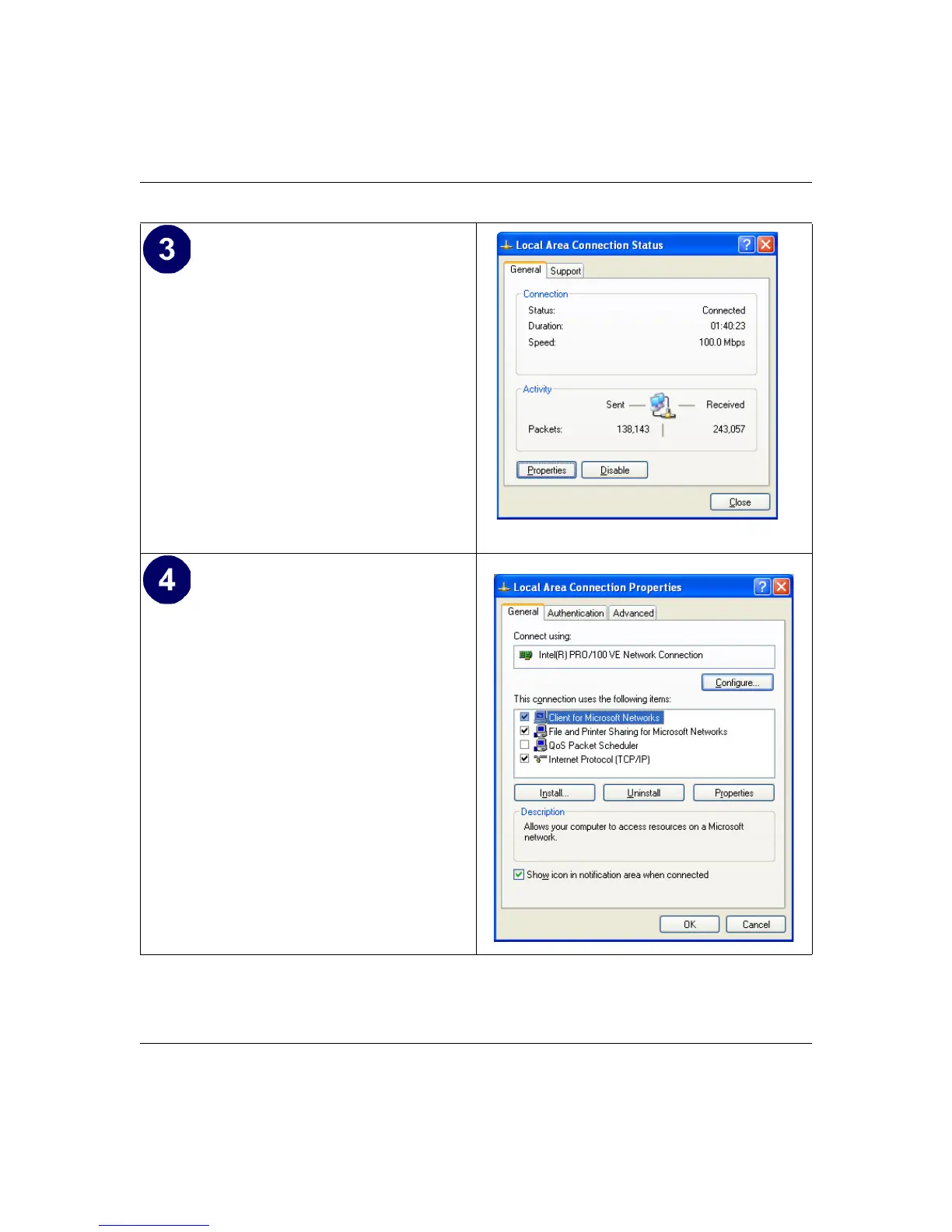

• Now you should be at the Local Area
Network Connection Status window. This
box displays the connection status, duration,
speed, and activity statistics.
• Administrator logon access rights are needed
to use this window.
• Click the Properties button to view details
about the connection.
• The TCP/IP details are presented on the
Support tab page.
• Select Internet Protocol, and click
Properties to view the configuration
information.

NETGEAR WGR614 v6 Specifications

General

Model	WGR614 v6
Category	Wireless Router
Wireless Standard	802.11g
Wireless Speed	54 Mbps
Frequency Band	2.4 GHz
LAN Ports	4 x 10/100 Mbps
WAN Port	1 x 10/100 Mbps
Security	WEP, WPA, WPA2
Firewall	NAT
Weight	0.66 lbs
