Reference Manual for the 108 Mbps Wireless Media Router WGT634U
Network, Routing, Firewall, and Basics B-13
April 2004, 202-10018-02

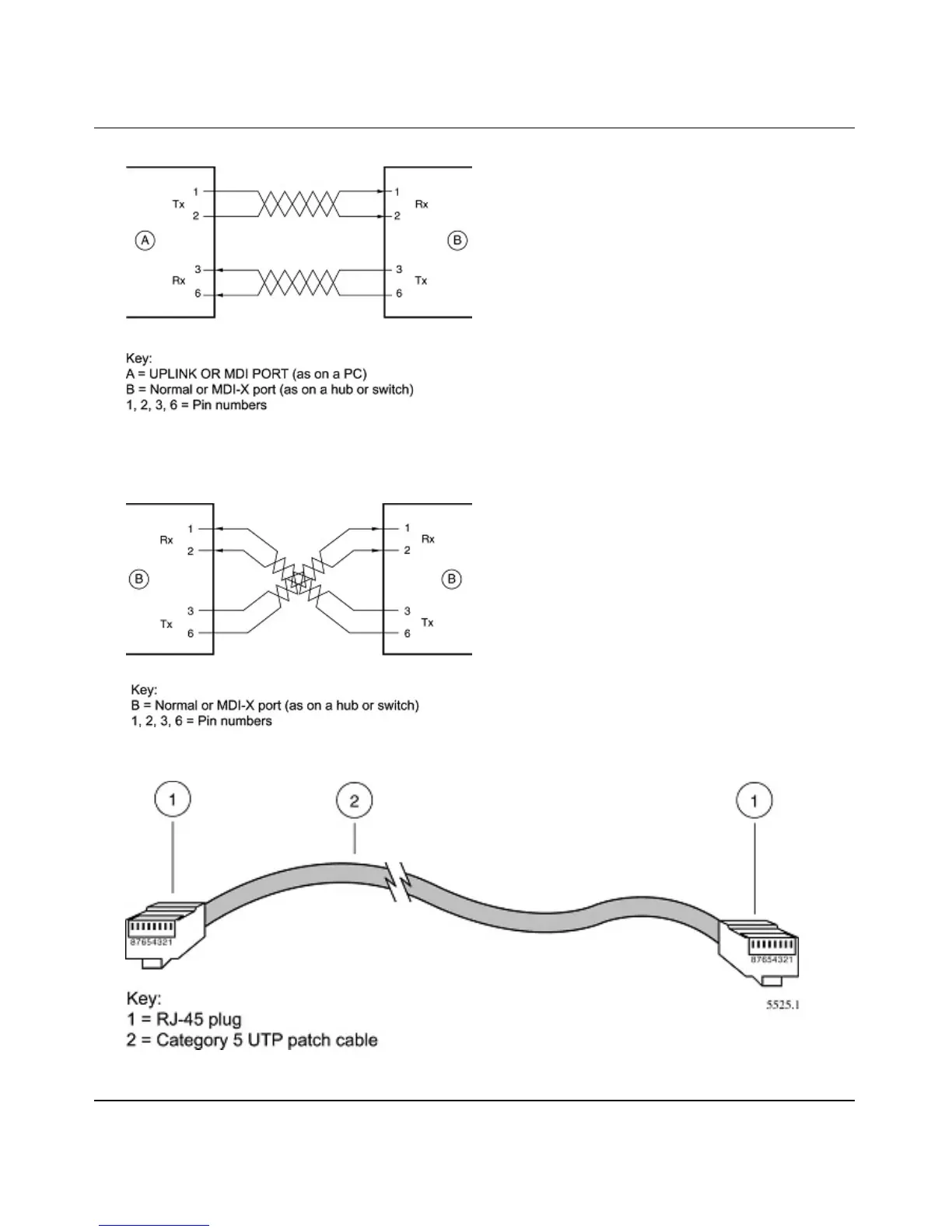

Figure B-1: Straight-Through Twisted-Pair Cable
Figure B-2 illustrates crossover twisted pair cable.
Figure B-2: Crossover Twisted-Pair Cable
Figure B-3: Category 5 UTP Cable with Male RJ-45 Plug at Each End
