2-2 Getting to Know Your NETGEAR Wireless Router
August 2004
The Front Panel
The front panel of the wireless router includes these status lights.

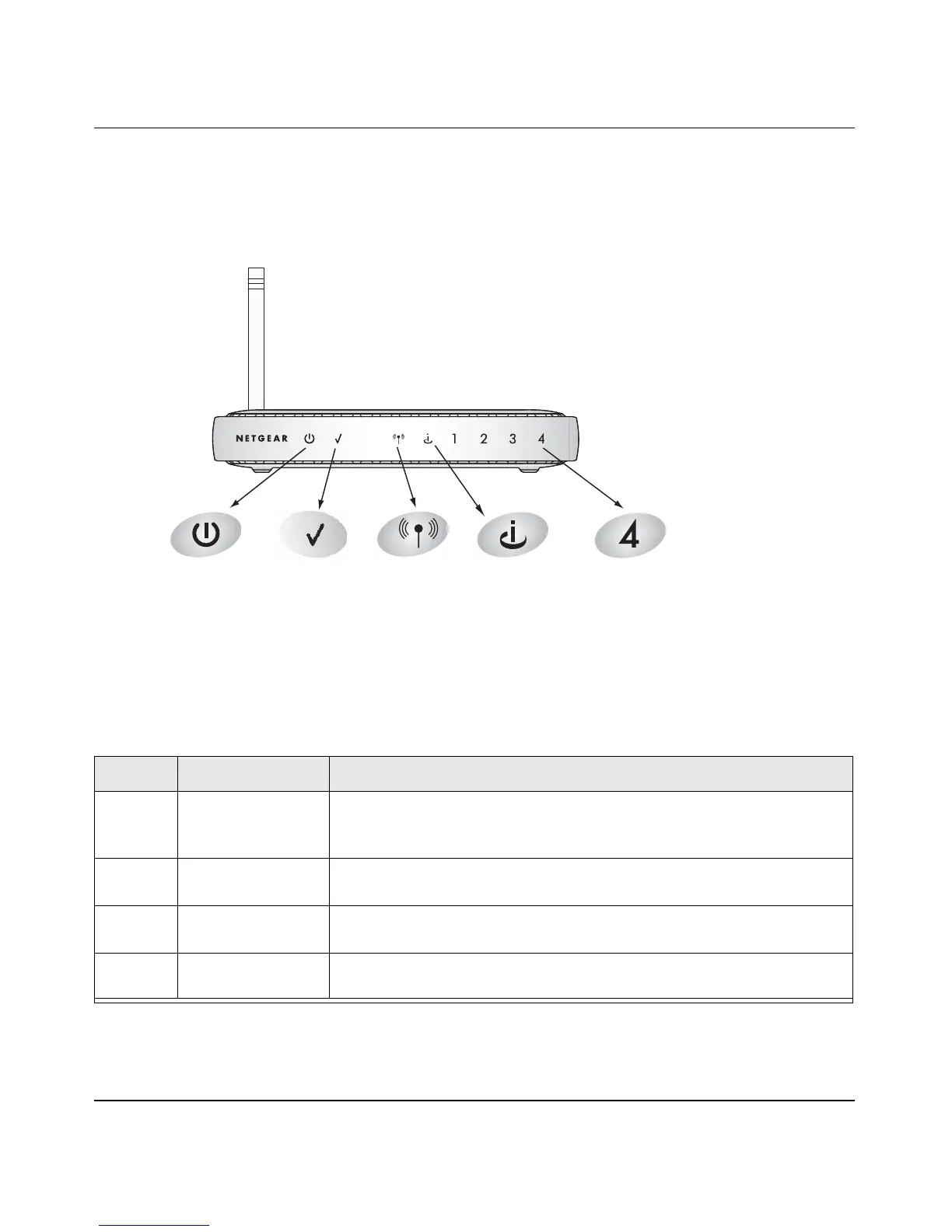

Figure 2-1: wireless router Front Panel
You can use the status lights to verify connections. Viewed from left to right, the table below
describes the lights on the front panel of the router.
Table 2-1. Status Light Descriptions
Label Activity Description
Power On Green Solid
Amber Blink
Off
Power is supplied to the router.
Power is supplied to the router and it is performing its diagnostic test.
Power is not supplied to the router.
Wireless On
Off
The wireless interface is enabled.
The wireless interface is turned off.
Internet
Port
On
Blink
The Internet port has detected a link with an attached device.
Data is being transmitted or received by the Internet port.
LAN Ports Green
Amber
The LAN port has detected a 100 Mbps link with an attached device.
The LAN port has detected a 10 Mbps link with an attached device.
0OWER
)NTERNET0ORT
7IRELESS
,!.0ORT
4EST
