Netis DL4323D User Manual

ADSL2+ Modem Router User Manual
46
one computer. You should assign a static IP address to the destination computer before you use
this feature.

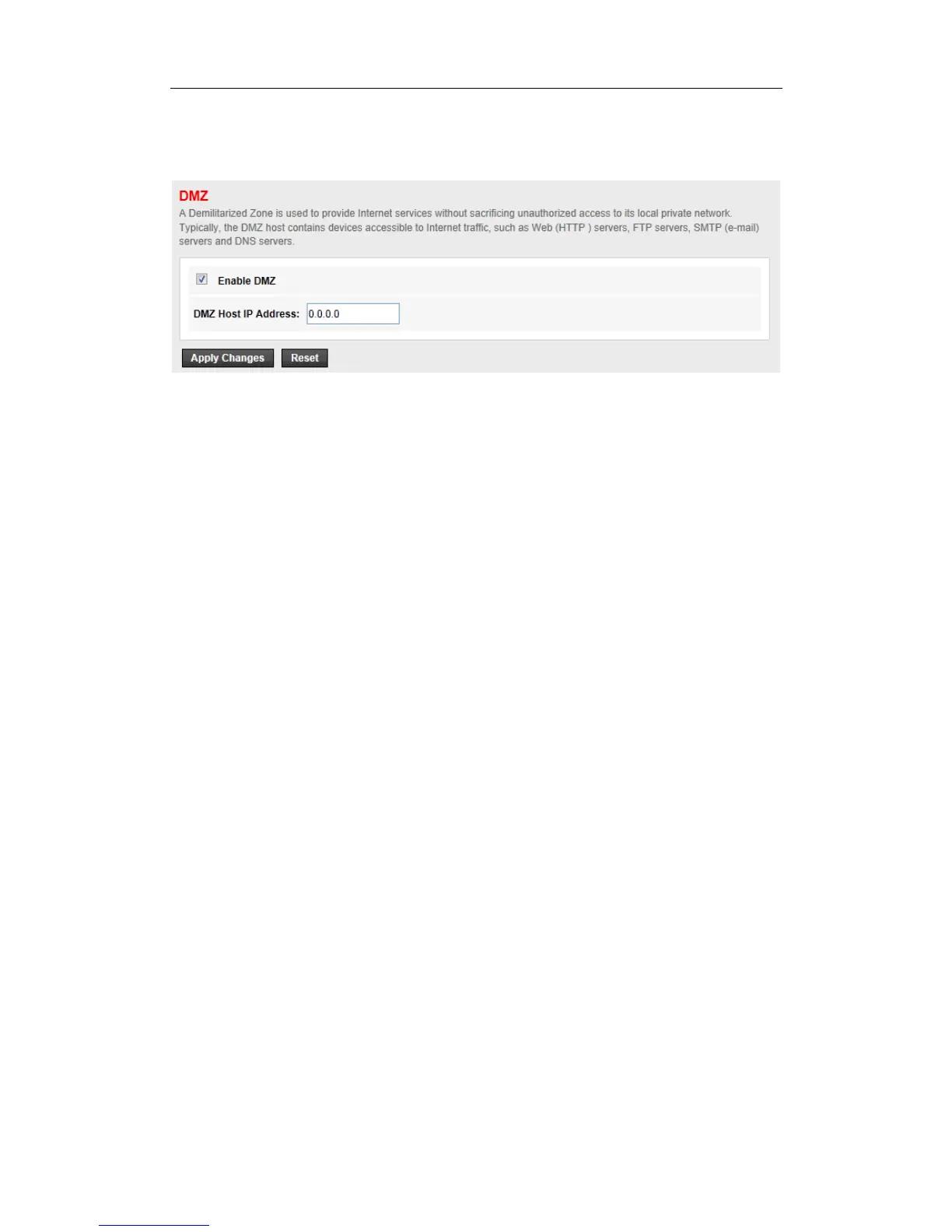

DMZ Host IP Address: Enter the specified IP Address for DMZ host on the LAN side.
Note: For security reasons, you should avoid using the default DMZ server feature. When a
computer is designated as the default DMZ server, it loses much of the protection of the
firewall, and is exposed to many exploits from the Internet. If compromised, the computer can
be used to attack your network.
4.3.2.2 Virtual Server:
Choose Advanced -> NAT-> Virtual Server, you can configure the Virtual Server. The Virtual
Server is the servers behind NAT (on the LAN), for example, Web server or FTP server, that
you can make visible to the outside world even though NAT makes your whole inside
network appear as a single machine to the outside world. You should assign a static IP address
to the destination computer before you use this feature.

Netis DL4323D Specifications

General

Firewall	Yes
NAT functionality	DMZ Virtual Server ALG NAT Exclude IP Port Trigger FTP ALG Port Nat IP Mapping
Security algorithms	64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, SSID, TKIP, WPA, WPA-AES, WPA-TKIP, WPA2-AES, WPA2-TKIP
Authentication method	802.1x RADIUS
Certification	CE, FCC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Package type	Box
Receive power	20 dBmW
Antennas quantity	2
Antenna connector type	SMA dipole
Antenna gain level (max)	5 dBi
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
VPN support	PPTP, L2TP, IPsec
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Routing protocols	IP, RIP-1, RIP-2
Supported network protocols	IPv6, ATM, PPP, DNS, DDNS, IGMP
Frequency range	2.4 - 2.4835 GHz
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
LED indicators	ADSL, LAN, Link, Power, WLAN, WPS
Memory card slot(s)	No
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.5 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	144.5 mm
Width	90 mm
Height	26.5 mm
