[USS] Sockets and Indication Elements
              –
•
•
RelaySocket(PWR)

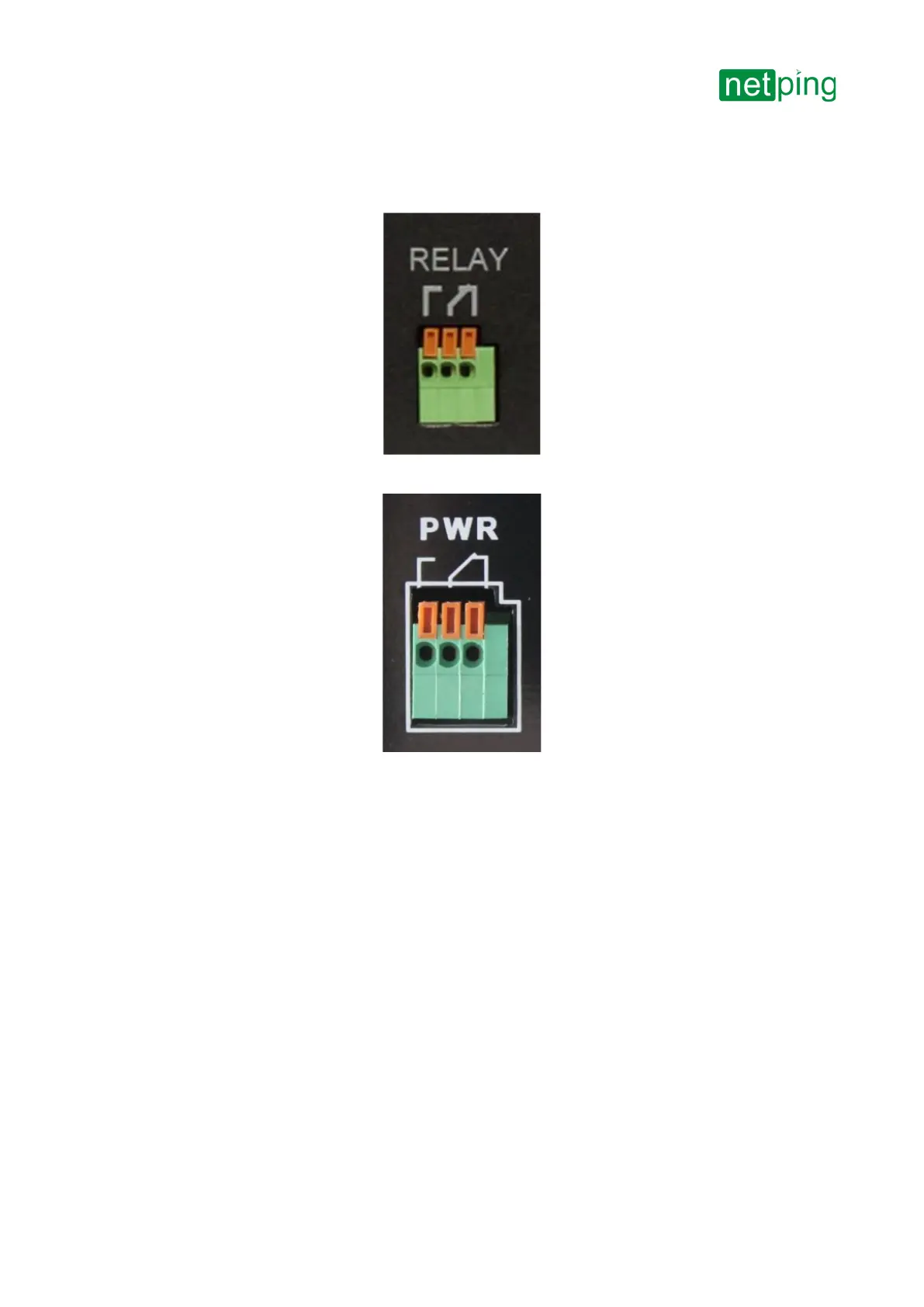

Picture 11– Socket «Relay»(UniPing server solution v4/SMSmonitoring unit)
Picture 12– Socket «PWR»(UniPing server solution v3monitoring unit)
Contacts of a relay, built into a body of a device, are outputnormally opened and normally closed. A relay can be
used for managing a Reset button of a computer as well as for connecting an Alarm АС-10.
Electrical parameters of power management channel RELAY are as follows:
The maximum permissible voltage on the relay contacts is 50V;
The maximum allowable current through the relay contacts is 2А
