NetPing Uniping server solution v3/SMS - Motion Sensors

[ENG] UniPing server solution v4/SMS & UniPing server solution v3, User guide -[USS] Sensors Plugin
[USS] Sensors Plugin
              –
A sensor is packaged with an inseparable cable, withconnectors on the ends. A cable length can be increased with
the help offlat cable extenders of RC-4sensor, which are sequentially plugged one into another. Or it can be done
independently with the help of any wire with a minimum cross section of 0,4 mm
2
. Maximum allowable length of a
flat cable is 100 m.
Motion Sensors
A motion sensor is plugged by a four-line wire according to the table:
Sensor Flex
UniPing server solution v4/SMS,UniPingserver
solution v3 Terminal Block
Red wire (labeled) One of IO lines – 1 - 8
Second wire after a labeled one GND
Third wire after a labeled one GND
Fourth wire after a labeled one +12V
A sensor is packaged with an inseparable cable, withconnectors on the ends. A cable length can be increased with
the help offlat cable extenders of RC-4sensor, which are sequentially plugged one into another. Or it can be done
Important! Sensors of a dry contact type, a supply voltage sensor, a leakage sensor, and others are plugged to
IOlines of a device. You can plug up to eight sensors of this set.
Important! A correspondent IOline should be set to an input mode in settings of a device.

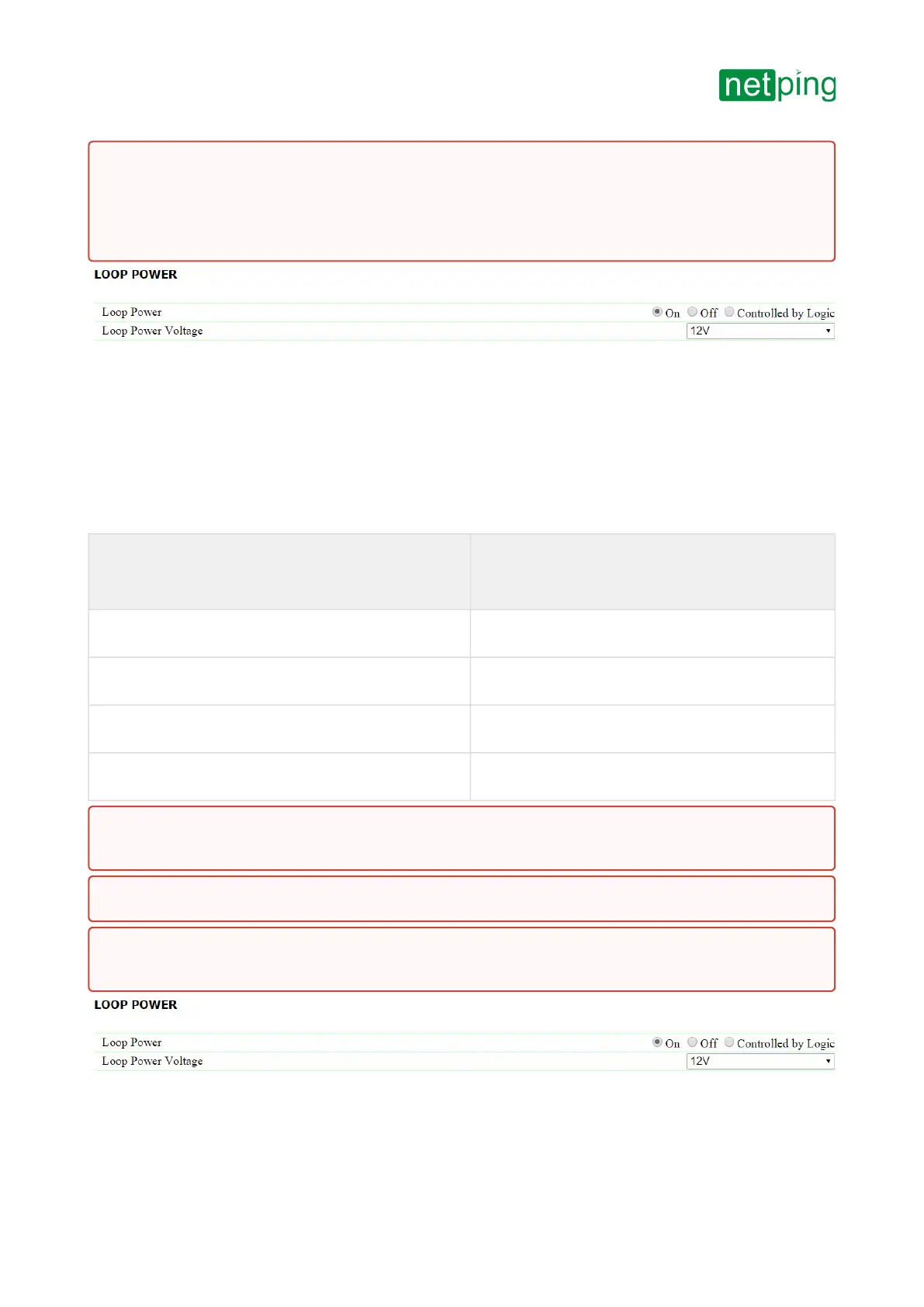

Important! For the operation of a shock sensor, there is a need to power a 12-V loop on the page of a smoke
sensor (current sensor) of a device web interface.
Important! Sensors of a dry contact type, a supply voltage sensor, a leakage sensor, and others are plugged to
IOlines of a device. You can plug up to eight sensors of this set.
Important! A correspondent IOline should be set to an input mode in settings of a device.
Important! It is necessary to turn on a power supply for a 12 V loop at the page of a smoke sensor (current
sensor) of a device web interface for a motion sensor to operate.
