NV-202 VDSL2 Bridge with DIP Switch USER’S MANUAL Ver. A4
22
Appendix A: Cable Requirements
Ethernet Cable
A CAT 3~7 UTP (unshielded twisted pair) cable is typically used to connect the Ethernet device to the bridge. A 10Base-T
cable often consists of four pairs of wires, two of which are used for transmission. The connector at the end of the 10Base-T
cable is referred to as an RJ-45 connector and it consists of eight pins. The Ethernet standard uses pins 1, 2, 3 and 6 for
data transmission purposes. (Table A-1)

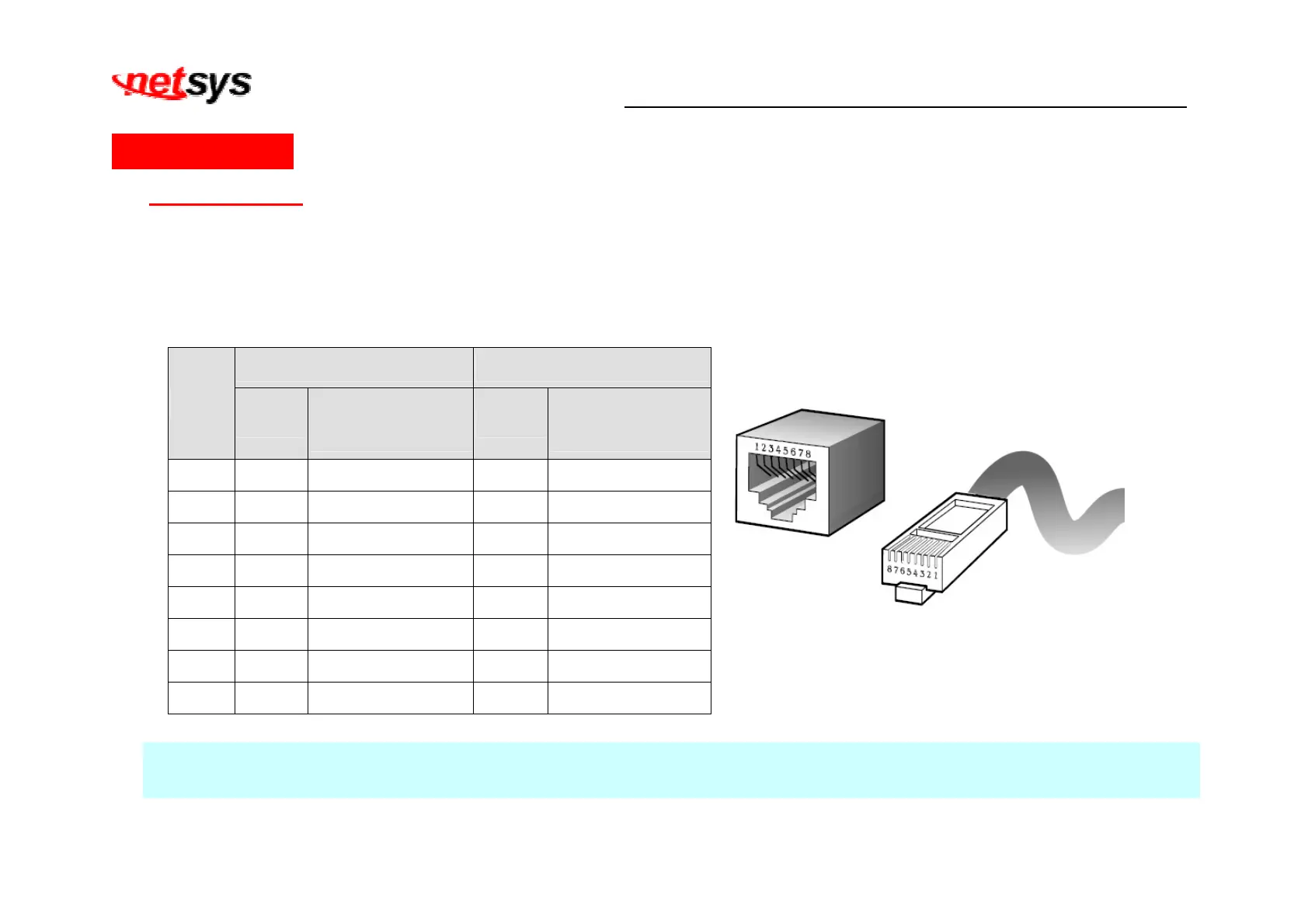

Table A-1 RJ-45 Ethernet Connector Pin Assignments
MDI MDI-X
PIN #
Signal
Media Dependant
interface
Signal
Media Dependant
interface-cross
1 TX+ Transmit Data + RX+ Receive Data +
2 TX- Transmit Data - RX- Receive Data -
3 RX+ Receive Data + TX+ Transmit Data +
4 -- Unused -- Unused
5 -- Unused -- Unused
6 RX- Receive Data - TX- Transmit Data -
7 -- Unused -- Unused
8 -- Unused -- Unused
Figure A-1 Standard RJ-45 repectacle/connector
Note:
Please make sure your connected cables are with same pin assignment as above table before deploying the cables into your
network.
