NetterVibration PKL Series - Installation; Procedure; Instructions for EE Kit PKL 190; 450; 740

Installation
12
6 Installation
Observe the safety instructions in Ch. Safety, from page 5 on.
When installing the PKL carry out the following steps in succession:
Install the EE kit on the PKL 190 / 450 / 740 between the flange of the PKL
and the mounting surface so that
• the piston of the PKL strikes the elastomer disc (1).
• the O-ring (3) is between the spacer plate (2) and the mounting sur-
face.
The spacer plate is supplied with the O-ring mounted.

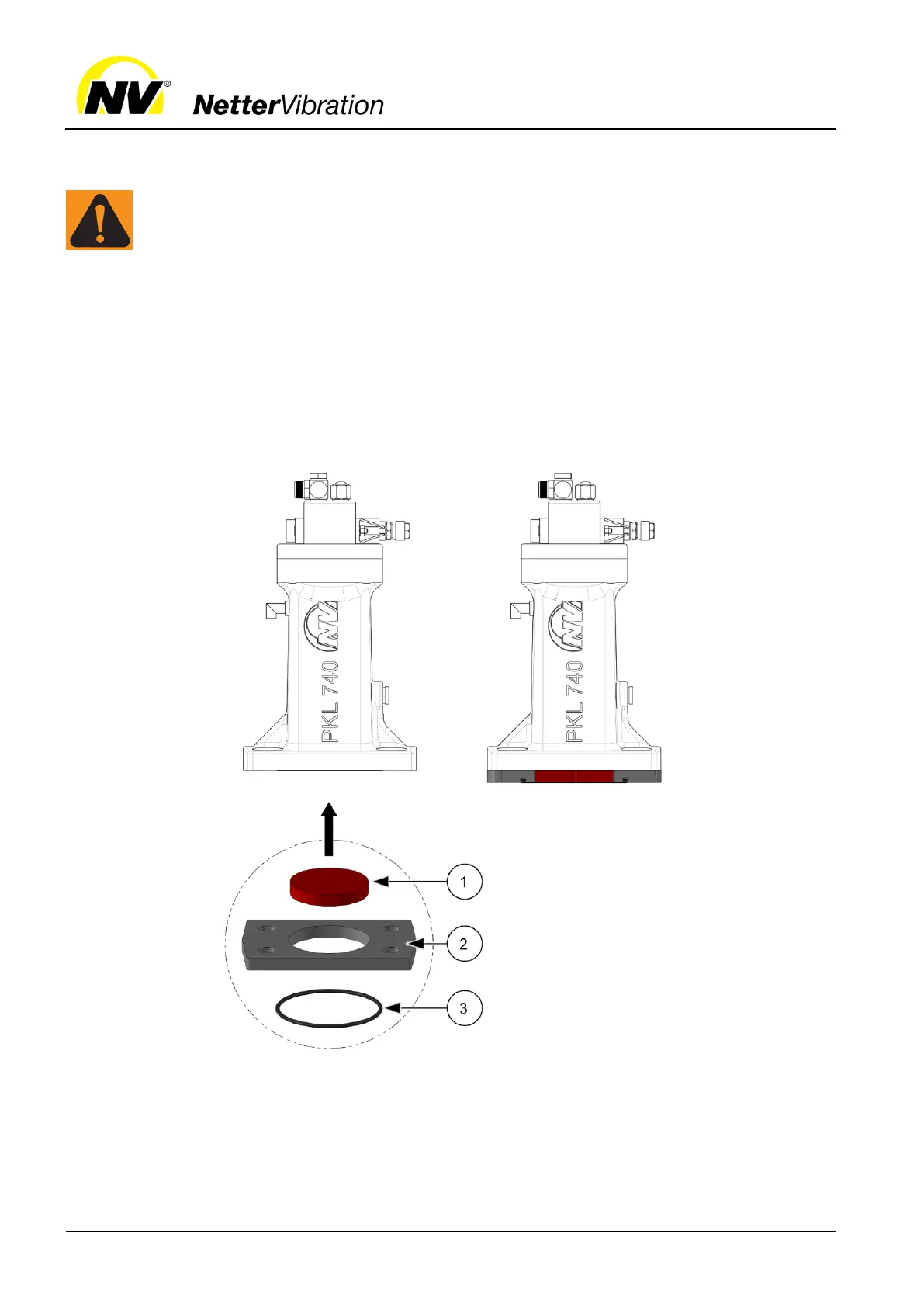

EE kit:
1
Elastomer disc
2
Spacer plate
3
O-ring
Example: PKL 740
For detailed information, please refer to the mounting instructions for the
respective PKL type.
Procedure
Instructions
for EE kit
PKL
190 /
450 /
740
