NetterVibration PKL Series - Instructions for EE Kit PKL 1000; 2100; 5000; 10000

Installation
13

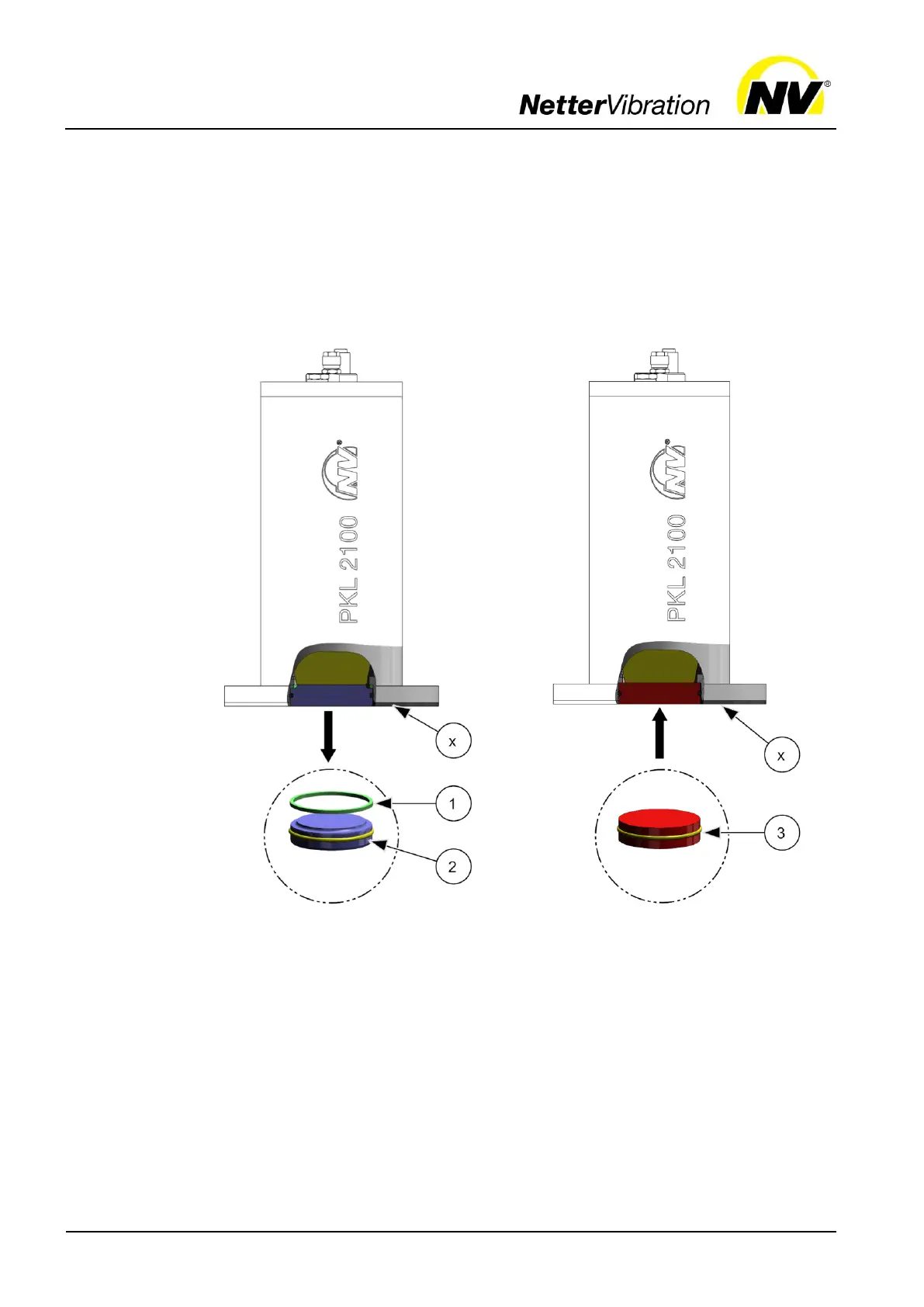

Install the EE kit on the PKL 1000 / 2100 / 5000 / 10000 as follows:
1. Remove the steel impact plate with the O-ring (2) and the damper
ring (impact plate) (1).
2. Insert the EE impact plate with the O-ring (3) in such a way that the
piston of the PKL strikes against the EE impact plate (3).
Ensure that the damper ring (flange) (x) is between the flange of the PKL
and the mounting surface.
1
Damper ring
(impact plate)
2
Steel impact plate with O-ring
x Damper ring (flange)
3
EE kit:
EE impact plate with O-ring
x Damper ring (flange)
Example: PKL 2100
For detailed information, please refer to the EE kit mounting instructions
for the respective PKL type.
Instructions
for EE kit
PKL
1000 /
2100 /
5000 /
10000
