Installation
14

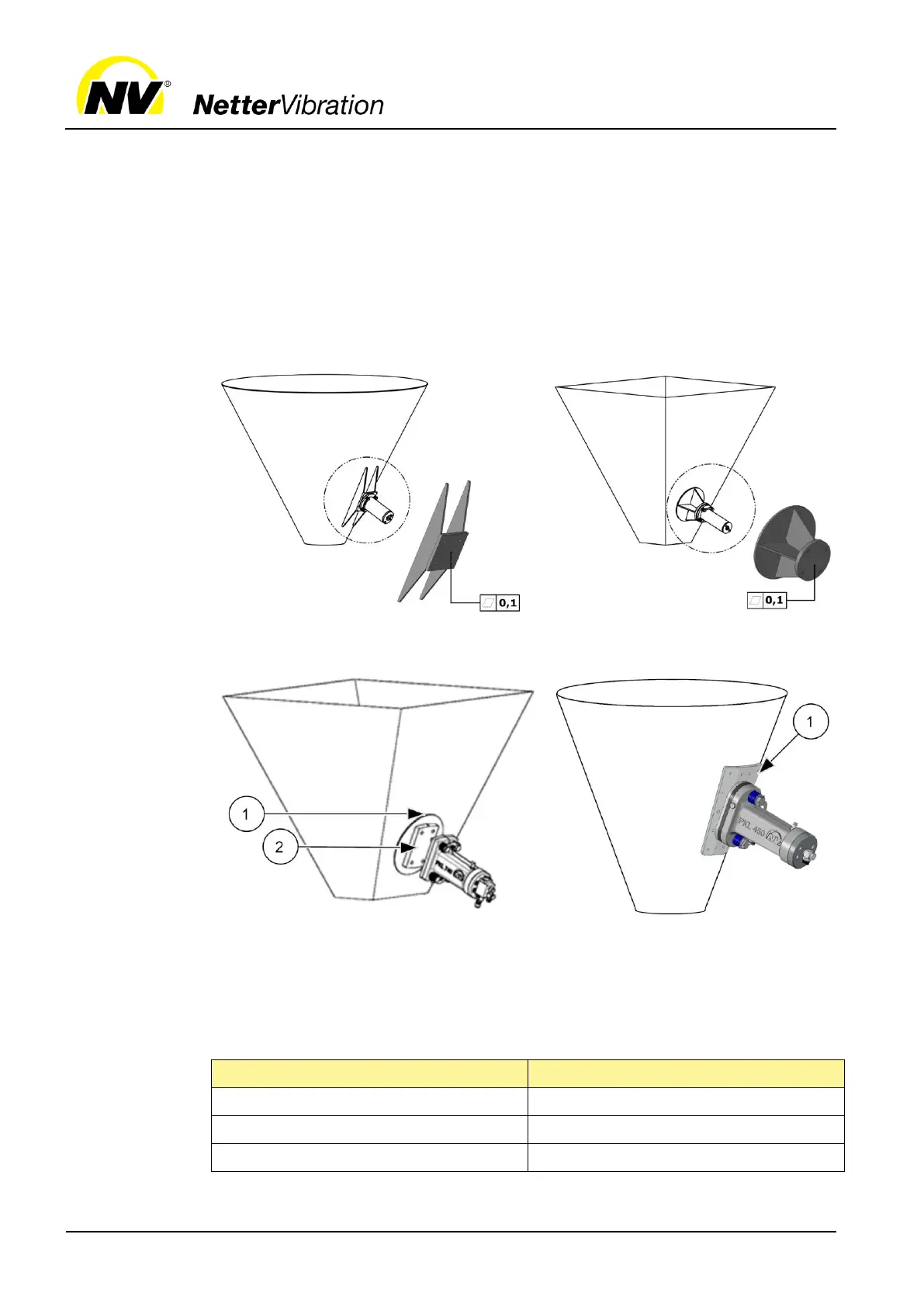

Appropriate fixing devices (±0.1 mm flatness):
weld-on consoles, weld-on plates, glueing consoles
• Weld the weld-on consoles directly onto the container walls.
• Weld the plates onto previously mounted saddle plates (1.5 times the
sheet thickness of the container).
• Glue the glueing consoles directly to container walls.
Examples:
Weld-on console, plane
Weld-on console, round
Weld-on plate
Glueing console, conical
1
Saddle plate
2
Weld-on plate
1
Glueing console
For safe and permanent fixation of the PKL to the fixing device use the
compulsory fastening kits.
The following fastening kits are available for every PKL type:
Description
Difference
NBS ... G (e.g. NBS 5000 G)
For tapped hole
NBS ... D (e.g. NBS 740 D)
For through-hole
NBS ... (e.g. NBS 190)
Without screws
... corresponds to the PKL type: 190 / 450 / 740 / 1000 / 2100 / 5000 / 100001
Fixing
devices
Fastening
kits NBS
