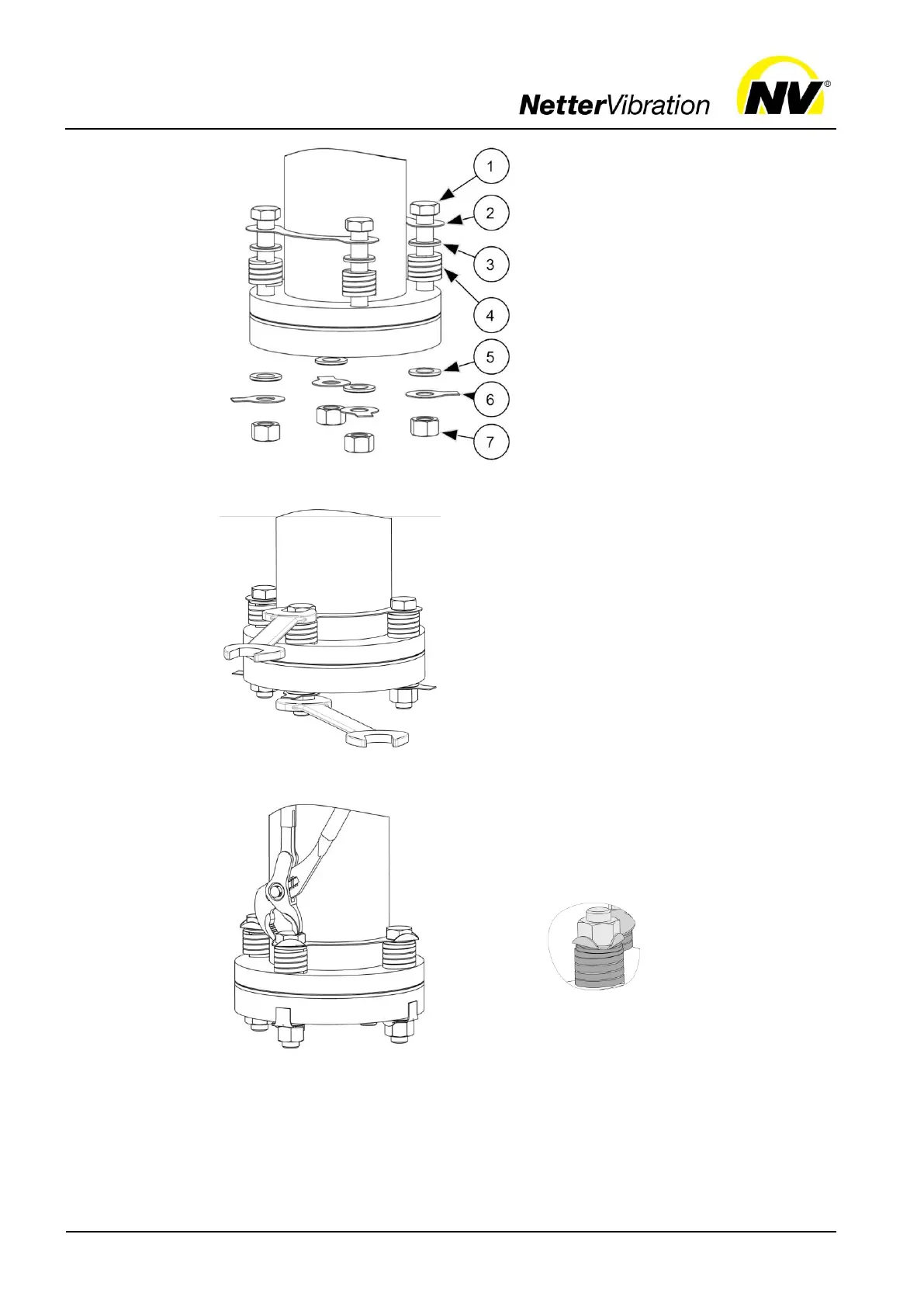

Components of the fastening kit using the
example NBS D:
Tab washer with long tap
(here only for NBS D)
The damping springs must be
mounted on the flange of the PKL.
1. Tighten the screw connections
evenly, until the damping
springs are completely pressed
together.
2. Loosen the screw connections
by one revolution.
Then fold all protruding roundings
of the lock plates towards all bolt
heads, with NBS D also towards all
nuts, as follows:
For NBS D fold all long taps of the
tab washers towards the mounting
plate.
For detailed information, please refer to the respective Mounting Instruc-
tions (NBS G mounting kits or NBS D mounting kits).
Instructions
fastening kit
NBS
