TS900 Node Layout
A B F G A B F G
AUX 12V
AUX 12V
500mA
NODE I/D
JP2
ZA
ZH
ZG
ZF
ZE
ZC
ZD
ZB
CIRCUIT A
CIRCUIT H
CIRCUIT G
CIRCUIT F
CIRCUIT E
CIRCUIT C
CIRCUIT D
CIRCUIT B
TA
TH
TG
TF
TE
TC
TD
TB
JP2 FITTED = NO TAMPER
Fit jumper-link to disable
tamper switch
Tamper switch
I/D selector
Programmable
detection
circuits A - D
From previous
Node
Mains power indicator
On = mains on
Flashing = mains off
Auxiliary 12V output
(for powering detectors)
Programmable outputs:
[A+] = switched +ve @100mA
[B -] = switched -ve @100mA
To next Node
Programmable
detection
circuits E - H
Auxiliary 12V
fuse (500mA)
1
2
3
4
5
A B
O/P
NETWORK IN NETWORK OUT
+ + - - -+

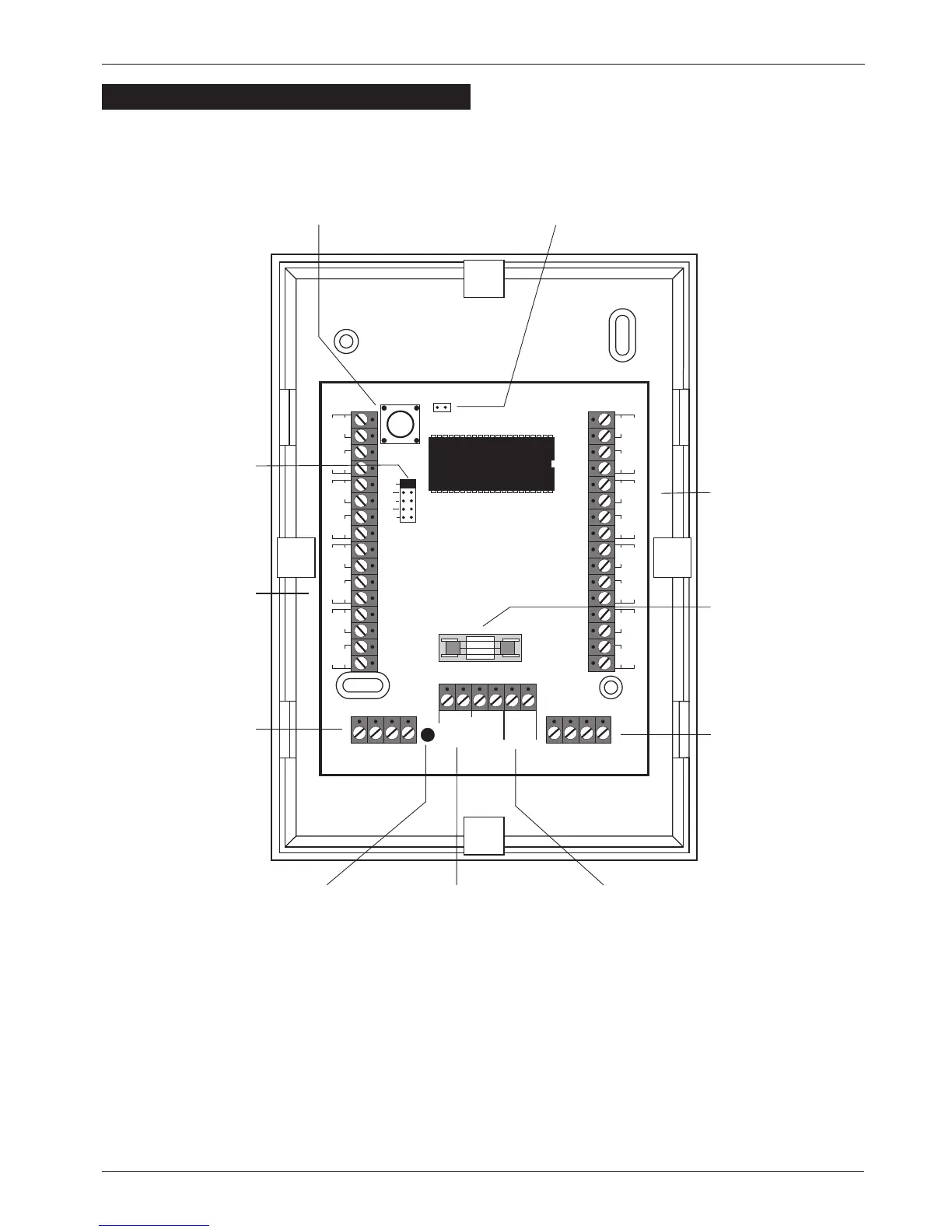

Figure 13 TS900 Node Layout
