7 MAINTENANCE
PAGE
7.2
issued: 28.08.2015 Revision: 8
text no.
07307-1/1
copy to:
7.3 Lubricating the Pin Joints with SM-Pin Joint Seals
I It is advisable to change the oil and check the seals of the pin joints:
- when renewing worn joint parts
- when opening the pump for any reason.

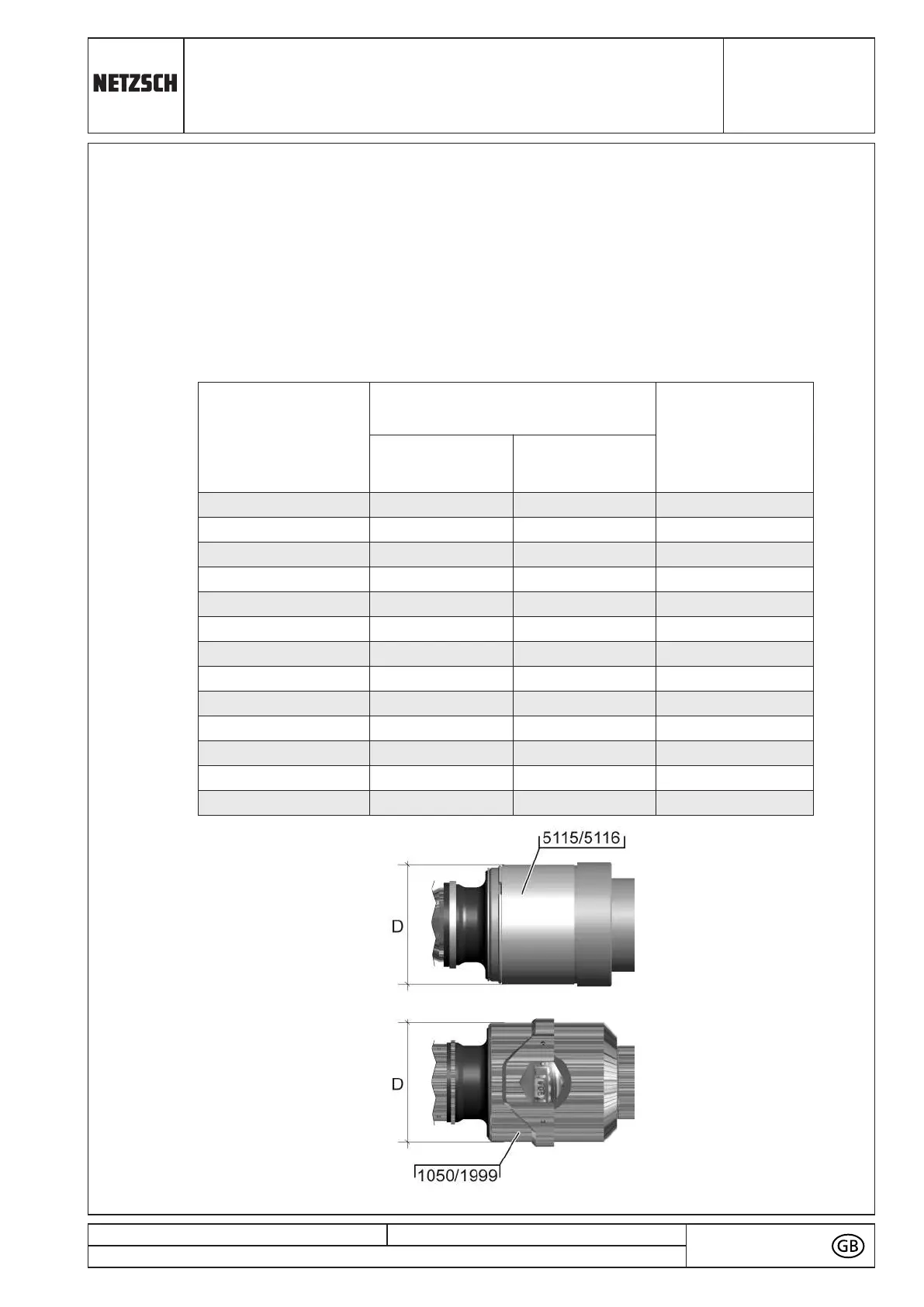

The quantity of oil added per pin joint is
a function of the joint external diameter “D”:
Joint external
diameter
D [mm]
(see sketch)
Joint basic size
Quantity of oil
per joint
[cm
3
]
Series
NM
Series
N…
25 NM 003-011 - 1
28 NM 015 - 1,5
30 NM 021 N…015 2
40 NM 031 N…020 5
48 - N…025 11
54 NM 038 N…030 15
65 NM 045 - 22
76 NM 053 N…040 36
83 NM 063 N…050 78
102 NM 076 N…060 165
125 NM 090 N…080 205
148 NM 105 N…100 450
162 NM 125 470
