9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.A
issued: 08.11.2010 Revision: 2
text no.
09101-1/2
copy to: BR, EX, I, LOG, RC

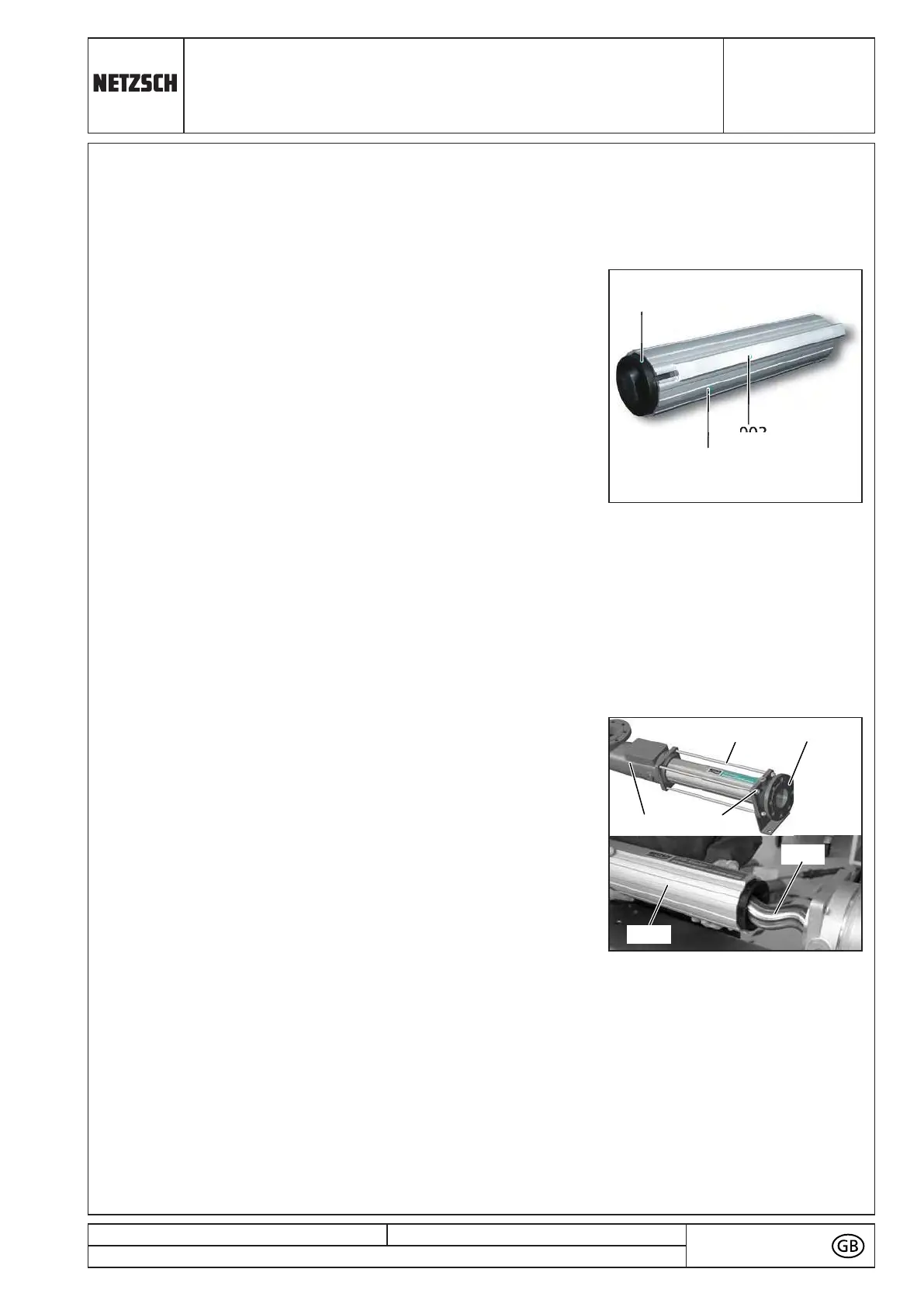

9.2 Assembly and disassembly of the iFD-Stator
®
iFD-Stator
®
- new stator technology
The iFD-Stator
®
(3005) is a patented design and
comprises the stator (3000), the stator housing
(3001) and the stator clamping sleeve (3002).
The iFD-Stator
®
is maintenance free.
The stator (3000) is simply replaced when worn: the
stator housing (3001) and clamping sleeve (3002) are
reused.
This reduces your purchasing quantities and creates
less waste. This solution also means that the difficult
disposal of composite materials is no longer an issue:
both to your advantage and that of the environment.
Recommendations for reordering the replacement stator (3000):
The replacement stator (3000) is simply ordered using the part number found on the
front page of your Operating and Maintenance Manual as well as on the pump
identification plate, together with the parts list reference no. 3000.
iFD-Stator
®
replacement:
a powerful connection and easy to use
Step 1: Loosen the thru bolts
I Support the pump housing (2010) and iFD-Stator
®
(3005) with wooden blocks.
I Loosen the nuts (3020) and remove the end stub
(2005).
I Remove the thru bolts (3010).
Step 2: Remove the iFD-Stator
®
(3005)
I Remove the complete iFD-Stator
®
(3005) from the
rotor (1999).
Tip:
Disassembly is made easier when the iFD-Stator
®
(3005) is rotated as the same time as it is drawn off
the rotor
