9 DISMANTLING AND ASSEMBLY
OF THE PUMP HOUSING
PAGE
9.B
text no.
R 09101-1/2
issued: 08.11.2010 Revision: 2
copy to: BR, EX, I, LOG, RC

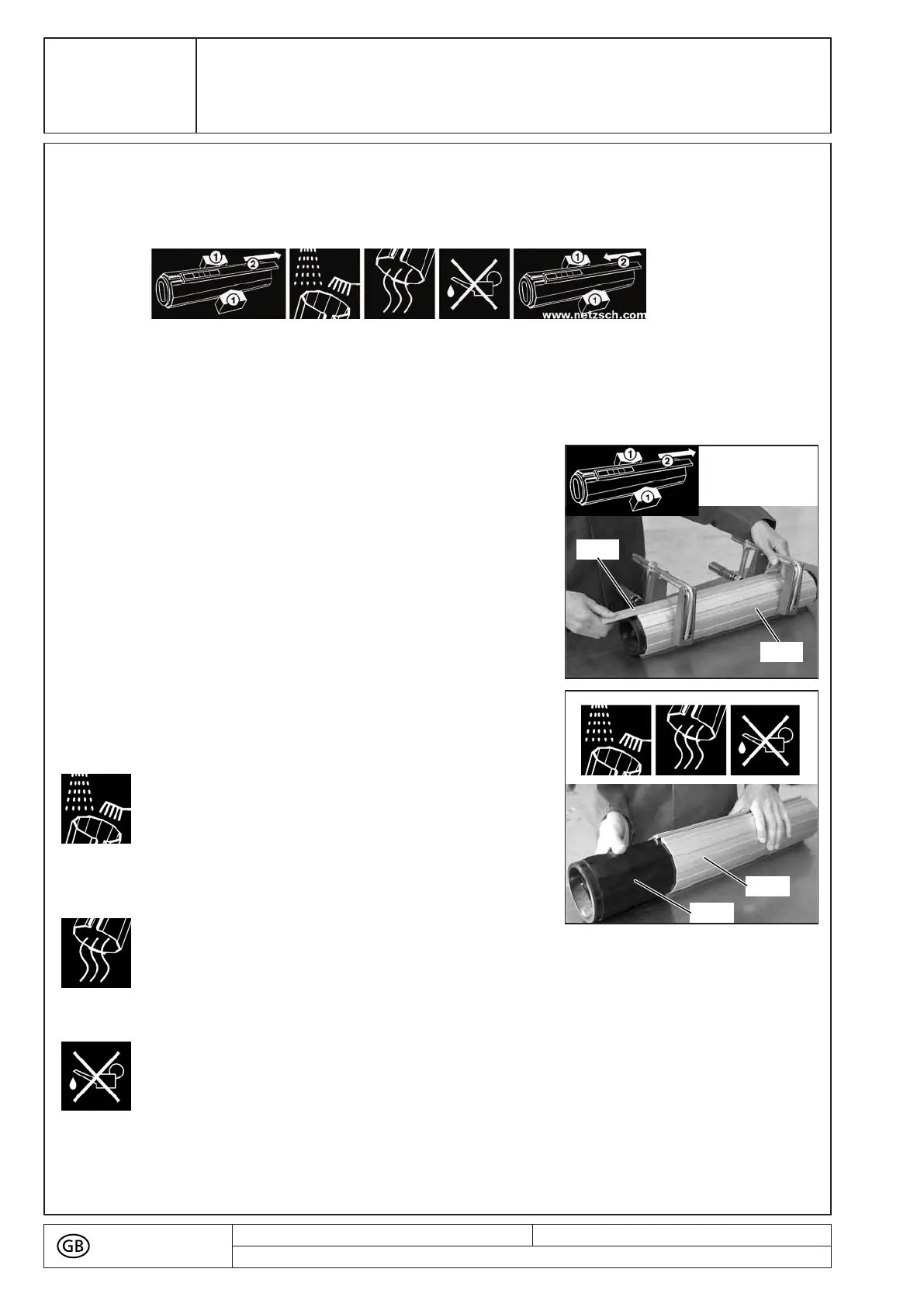

On the sleeve you will find icons as a reminder to clarify the following steps of the
procedure:
Step 3: Disassemble the stator housing (3001/3002)
I Evenly compress the stator housing (3001) across its diameter with, for example, a
pair of screw clamps or a vice until the clamping force exerted by the sleeve (3002) on
the stator housing (3001) is released.
I Now remove the clamping sleeve (3002).
CAUTION!
Do not compress more than necessary otherwise the
clamping sleeve will jam.
Tip:
If the clamping sleeve does not loosen immediately, it
can be freed with a light blow in the lengthwise
direction using a plastic hammer.
I Remove the clamps or vice compressing the housing.
Step 4: Replace the stator (3000)
I Slide the worn stator (3000) lengthwise out of the
stator housing (3001).
Clean all dirt and other deposits from the iFD-Stator
®
,
in particular from the contact surfaces between the
stator housing and the clamping sleeve and from the
inner surface of the stator housing.
CAUTION!
The contact surfaces between the stator and stator
housing must be completely free of dirt and grease.
Dry the stator (3000) and the stator housing (3001) fully.
Tip:
Only apply grease to the contact area between the stator housing and clamping
sleeve before reassembling the stator and housing.
Do not lubricate the contact surfaces of the stator (3000) and stator housing
(3001).
