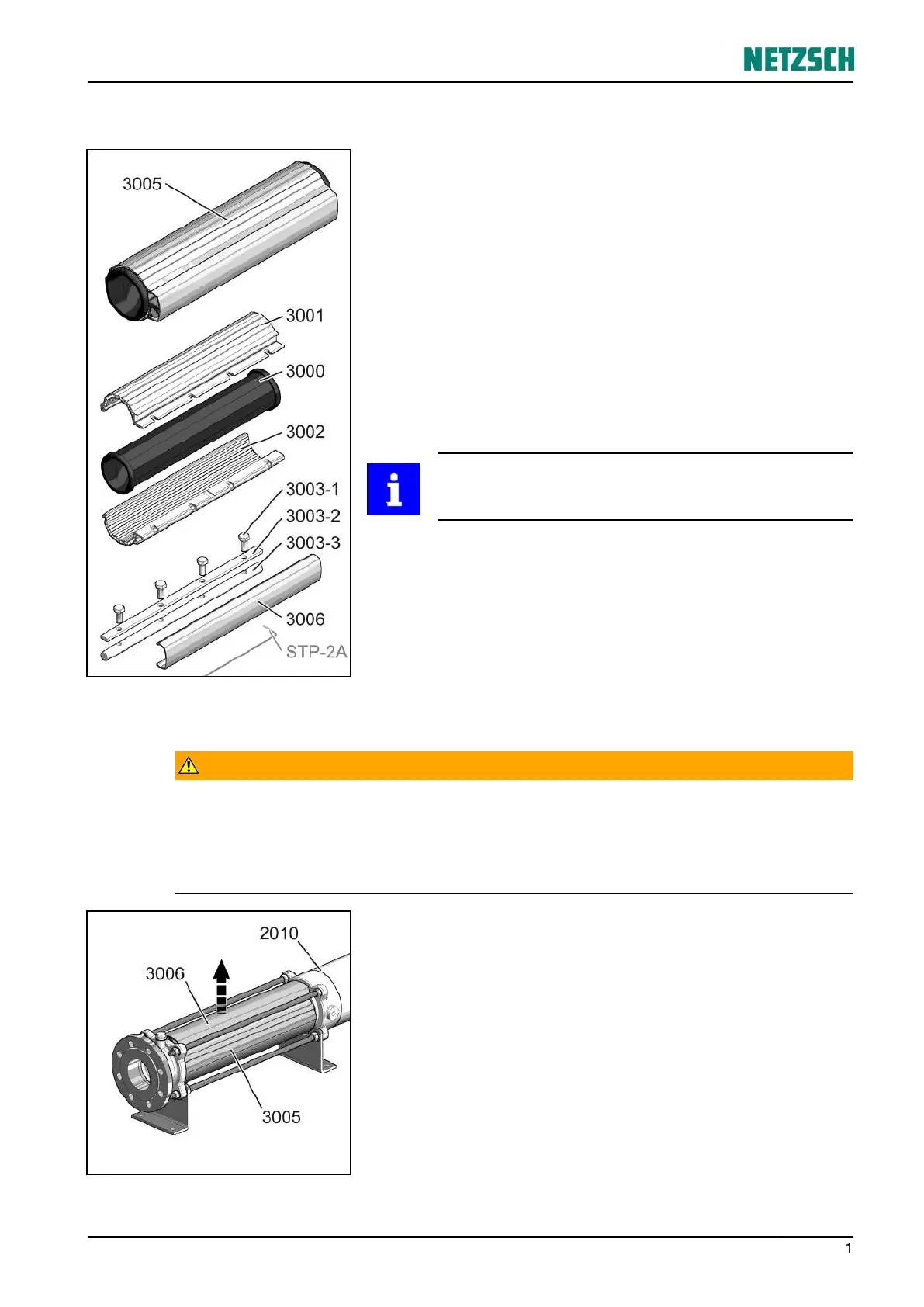

9.3.2 Overview
The patented iFD stator
®
2.0 (3005) comprises:
• 3000: Elastomer
• 3001: Upper shell
• 3002: Lower shell
• 3003-1: Screws
• 3003-2: Flat fillet
• 3003-3: Round fillet
• 3006: Dirt protection fillet
• STP-2A: Stator protector (option)
Round fillet (3003-3), flat fillet (3003-2) and screws (3003-1)
together form the "closure" (3003).
The iFD stator
®
2.0 is maintenance free. If there is wear,
only the elastomer (3000) is replaced. All other parts
continue to be used.
The machine number (see pump name plate or cover page
of the operating manual ) and the item number 3000 are
sufficient for reordering.
9.3.3 Removal
WARNING!
Hazardous conveyor media!
Risk of poisoning and chemical burns from the conveyor medium!
▶
When using hazardous conveyor media, decontaminate the pump before opening.
▶
Empty pump before opening.
▶
Wear personal protective equipment.
Prepare removal:
ü
The pump is decontaminated and completely emptied.
ü
The pump is disassembled or the required space for
removing the stator (stator disassembly length) is free.
1. Take dirt protection fillet (3006) off.
2. Support pump housing (2010) and iFD stator
®
2.0
(3005) with wooden blocks.
Ready to remove the iFD stator
®
2.0.
21
