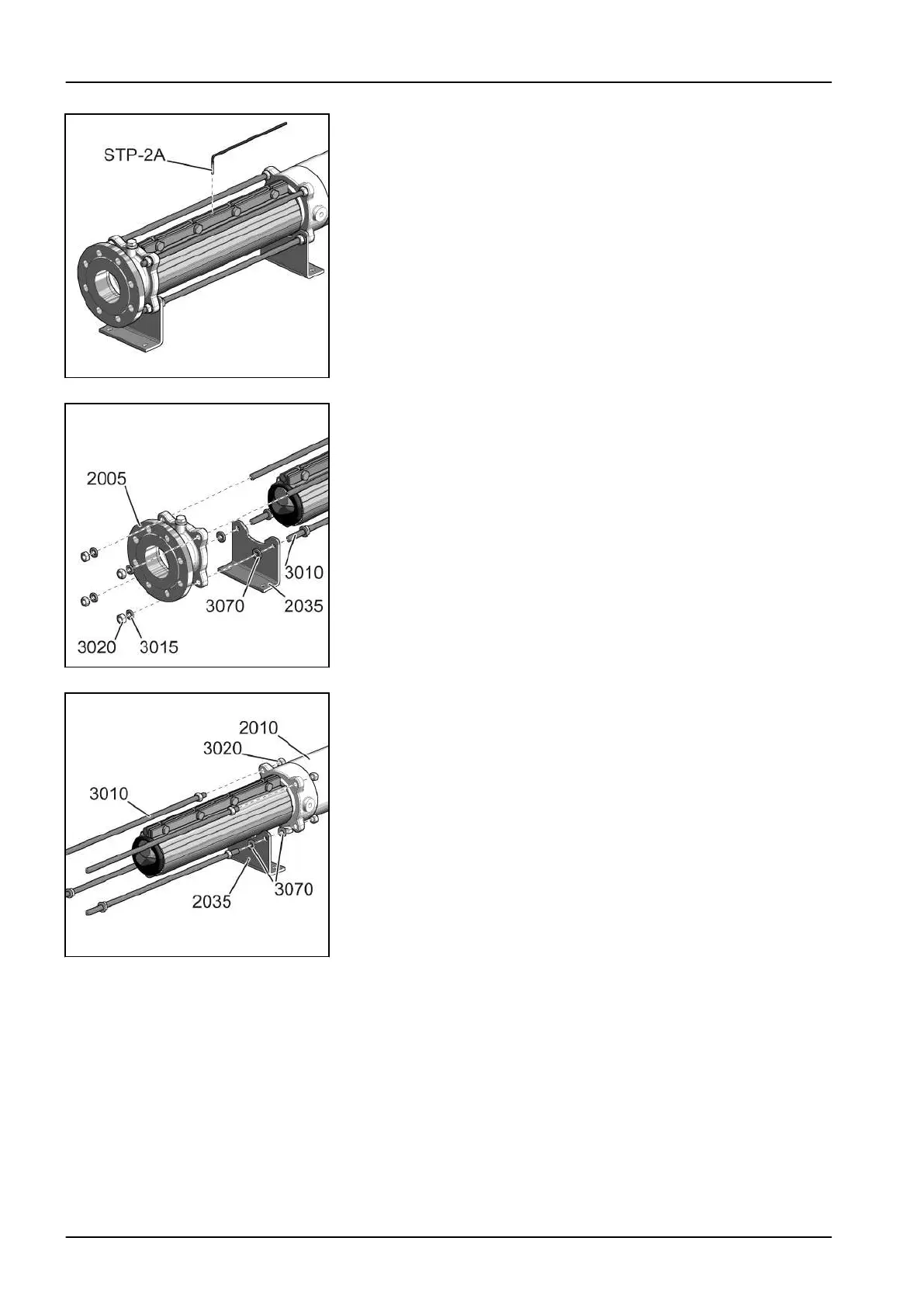

If present - remove STP-2A:
1. Take the STP-2A's cable out of the guide slot.
2. Pull STP-2A out of the sensor protection tube.
STP-2A is removed.
Remove end connection and first support foot:
ü
iFD stator
®
2.0 and pump housing are secured against
falling by wooden blocks (see above).
ü
If present: STP-2A is removed (see above).
1. Remove hex nuts (3020) and spring washers (3015).
2. Remove end connection (2005).
3. Remove washers (3070) and first support foot (2035).
End connection and first support foot are removed.
Remove stator bolts and second support foot:
ü
End connection and first support foot are removed (see
above).
1. Remove hex nuts (3020).
2. Remove stator bolts (3010).
3. If present, remove second support foot (2035) and
washers (3070).
Stator bolts and second support foot are removed.
Dismantling and Assembly of the Pump Housing
