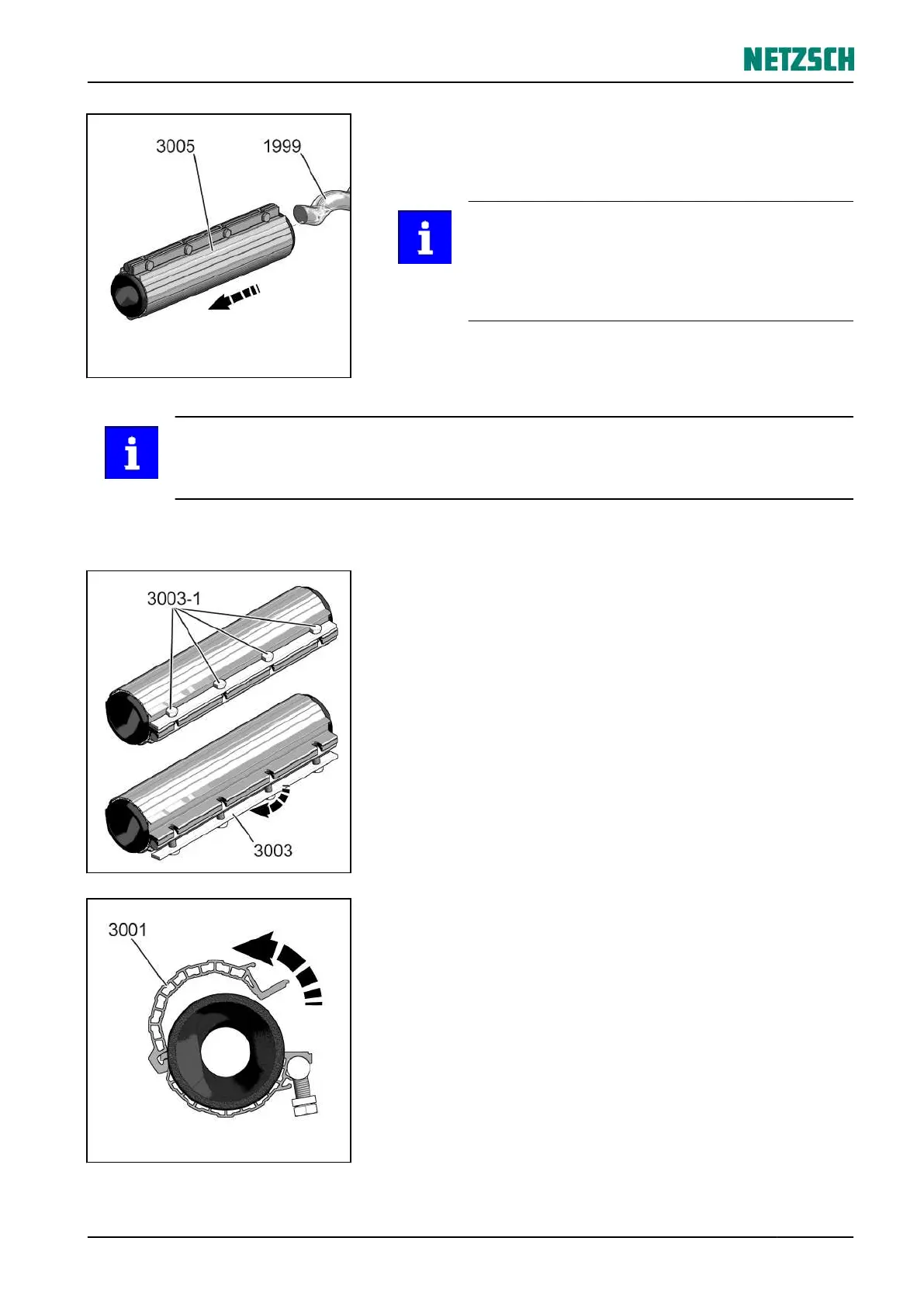

Remove iFD stator
®
2.0:
ü
Stator bolts and support feet are removed (see above).
1. Pull iFD stator
®
2.0 (3005) off the rotor (1999).
Removal is made easier when the iFD stator
®
2.0
(3005) is rotated at the same time as it is pulled off.
It is possible that the iFD stator
®
2.0 (3005) can only be
pulled off with great difficulty. In this case, it may help if
the screws on the closure are already loosened at this
point (→ Chapter 9.3.4 Disassembly).
iFD stator
®
2.0 is removed.
Tip:
Check the condition of the rotor when replacing the stator.
We recommend replacing the rotor (1999) as soon as it shows clear signs of wear.
Our Service Team would be pleased to answer any further questions you may have at any time.
9.3.4 Disassembly
Fold away closure:
ü
iFD stator
®
2.0 and dirt protection fillet are removed (→
Chapter 9.3.3 Removal).
1. Loosen - do not remove - hex head screws (3003-1).
2. Fold down closure (3003).
Closure is folded away.
Remove upper shell:
ü
Closure is folded away (see above).
1. Turn upper shell (3001) a little upwards.
2. In this position, take off the upper shell (3001).
Upper shell is removed.
