Remove elastomer.
ü
Upper shell is removed (see above).

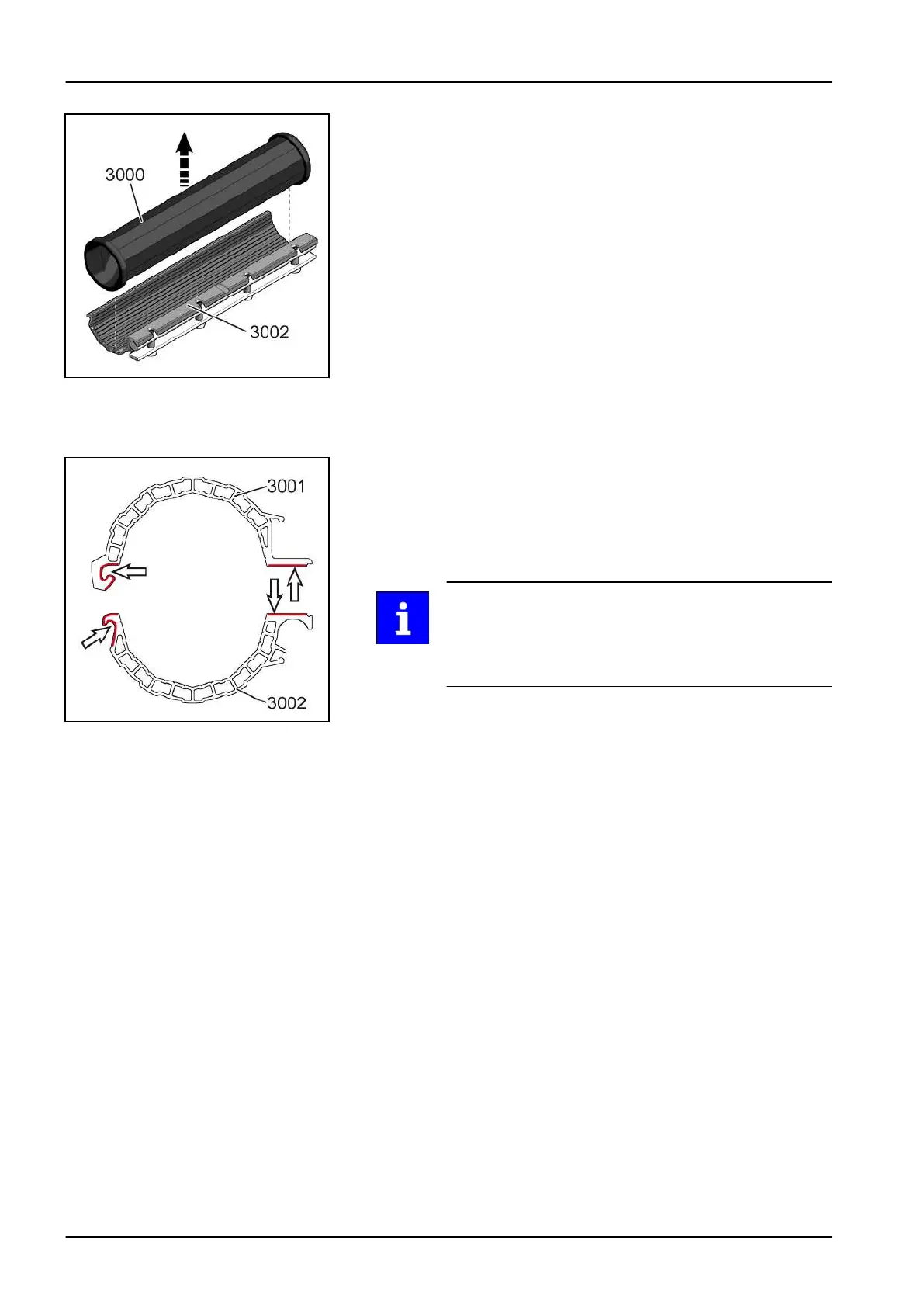

1. Take elastomer (3000) out of lower shell (3002).
Elastomer is removed and can be replaced.
9.3.5 Cleaning
Clean parts:
ü
The iFD stator
®
2.0 is disassembled (→ Chapter 9.3.4
Disassembly).
1. Clean dirt and deposits off all the iFD stator
®
2.0
components.
In doing so, pay particular attention to the contact
surfaces between upper shell (3001) and lower shell
(3002).
The elastomer and both parts of the shell must be clean
and dry before assembly!
Parts are cleaned and ready for installation.
Dismantling and Assembly of the Pump Housing
