9.3.6 Assembly
All parts must be clean!
It is particularly important that there is no dirt between the elastomer and the upper and lower
shells during installation.
Prepare lower shell:
ü
Parts are cleaned (→ Chapter 9.3.5 Cleaning).

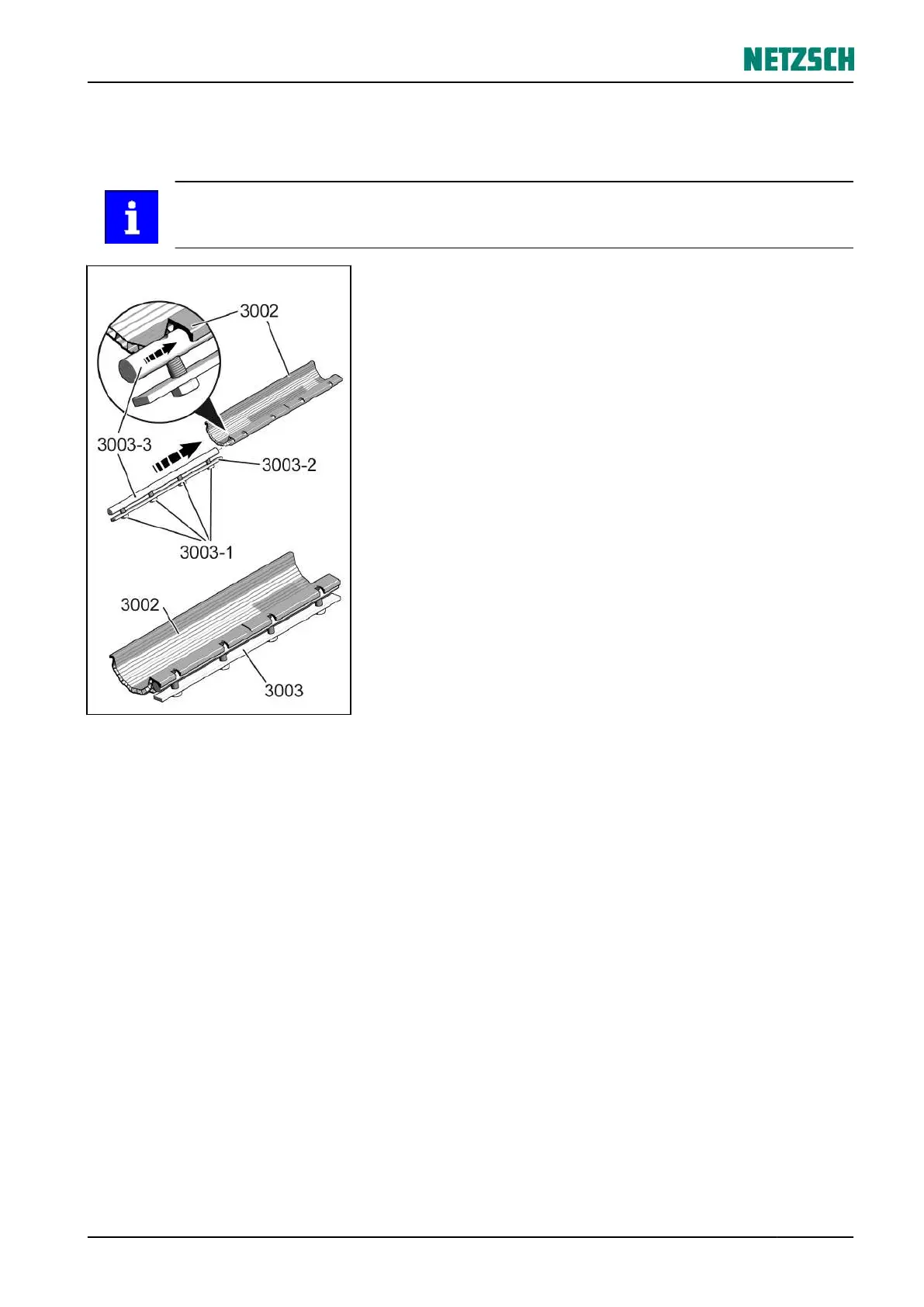

1. If this has not yet been done: As shown, assemble the
closure (3003) using the round fillet (3003-3), flat fillet
(3003-2) and screws (3003-1).
2. Push the closure (3003) into the guide of the lower shell
(3002) sideways.
3. Fold down the closure (3003).
This means the lower shell (3002) stands securely on
the work surface during the rest of the installation.
Lower shell is prepared.
