Insert elastomer:
ü
Lower shell is prepared (see above).
@
Heat-conductive paste
1. If an STP-2A is built in:
Fill around half the sensor protection tube (see white
arrow) with heat-conductive paste.

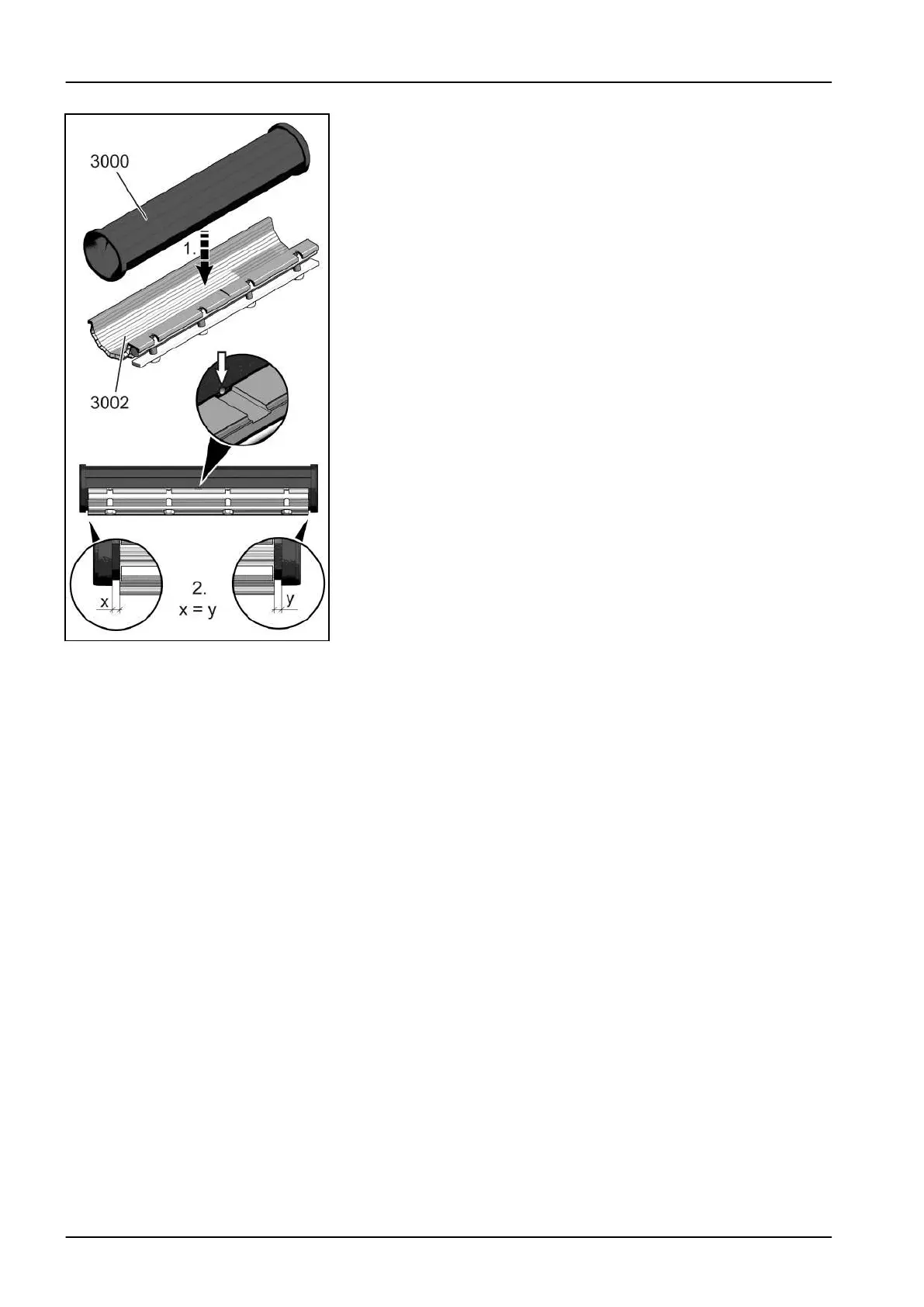

2. Insert elastomer (3000) into lower shell (3002).
The sensor protection tube for the STP-2A must be
located at the milled cut-out of the lower shell (3002)
(see white arrow).
Pay attention to edges of elastomer and lower shell!
3. Align elastomer(3000) with a good eye in the centre of
the lower shell (3002).
Elastomer is inserted.
Dismantling and Assembly of the Pump Housing
IPP - EN - EN_09101_20141105/12 - D8411276 - 4300003998 - 000100 - NPS - 00229929 N 2018-02-21 19:03:25
