9.3.7 Installation
Attention!

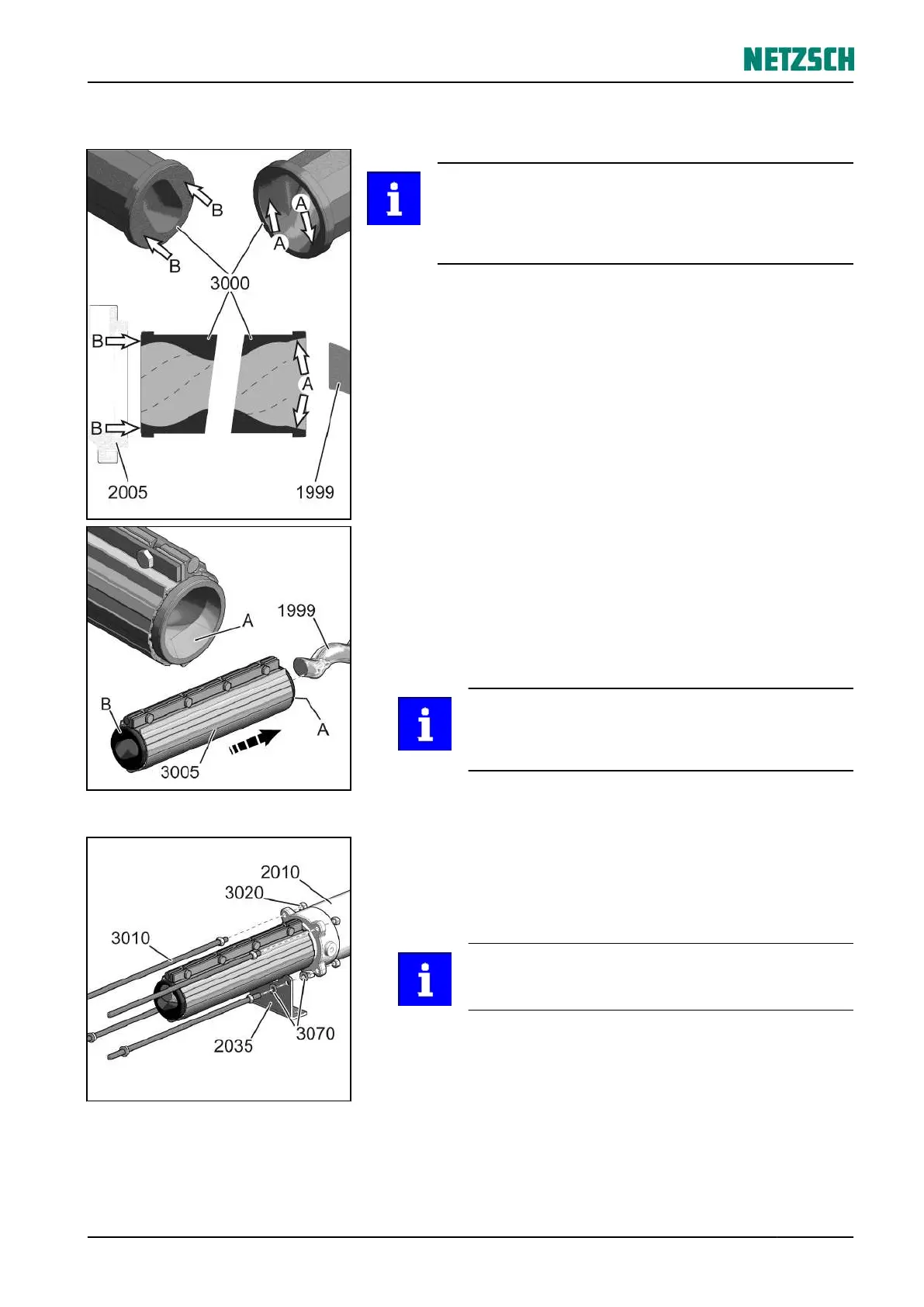

The funnel-shaped inflow channel (A) on the front end of the
elastomer (3000) always faces the inlet side. This means
normally towards the rotor (1999) (pump housing). The flat
end (B) faces the end connection (2005).
Put iFD stator
®
2.0 into position:
ü
iFD stator
®
2.0 is fully assembled (→ Chapter 9.3.6
Assembly).
1. Coat inner surfaces of the elastomer a little with anti-
seize agent (e.g. glycerine).
2. Push iFD stator
®
2.0 with the inflow cone (A) in the
suction direction of the pump onto the rotor (1999).
If an STP-2A dry running protector is fitted, the closure
must be facing upwards (different from the illustration),
so that STP-2A and heat-conductive paste remain in
position during operation.
iFD stator
®
2.0 is in position.
Fit second support foot and stator bolts:
ü
The iFD stator
®
2.0 is in position (see above).
1. If present: put second support foot (2035) and washers
(3070) onto the lower stator bolts (3010)
If there is a second support foot present on the end
connection, both stator bolts (3010) must be attached
with hex nuts (3020) at both ends at the bottom.
2. Screw the stator bolts (3010) with the hex nuts (3020)
on the pump housing (2010).
Second support foot (if present) and stator bolts are fitted.
