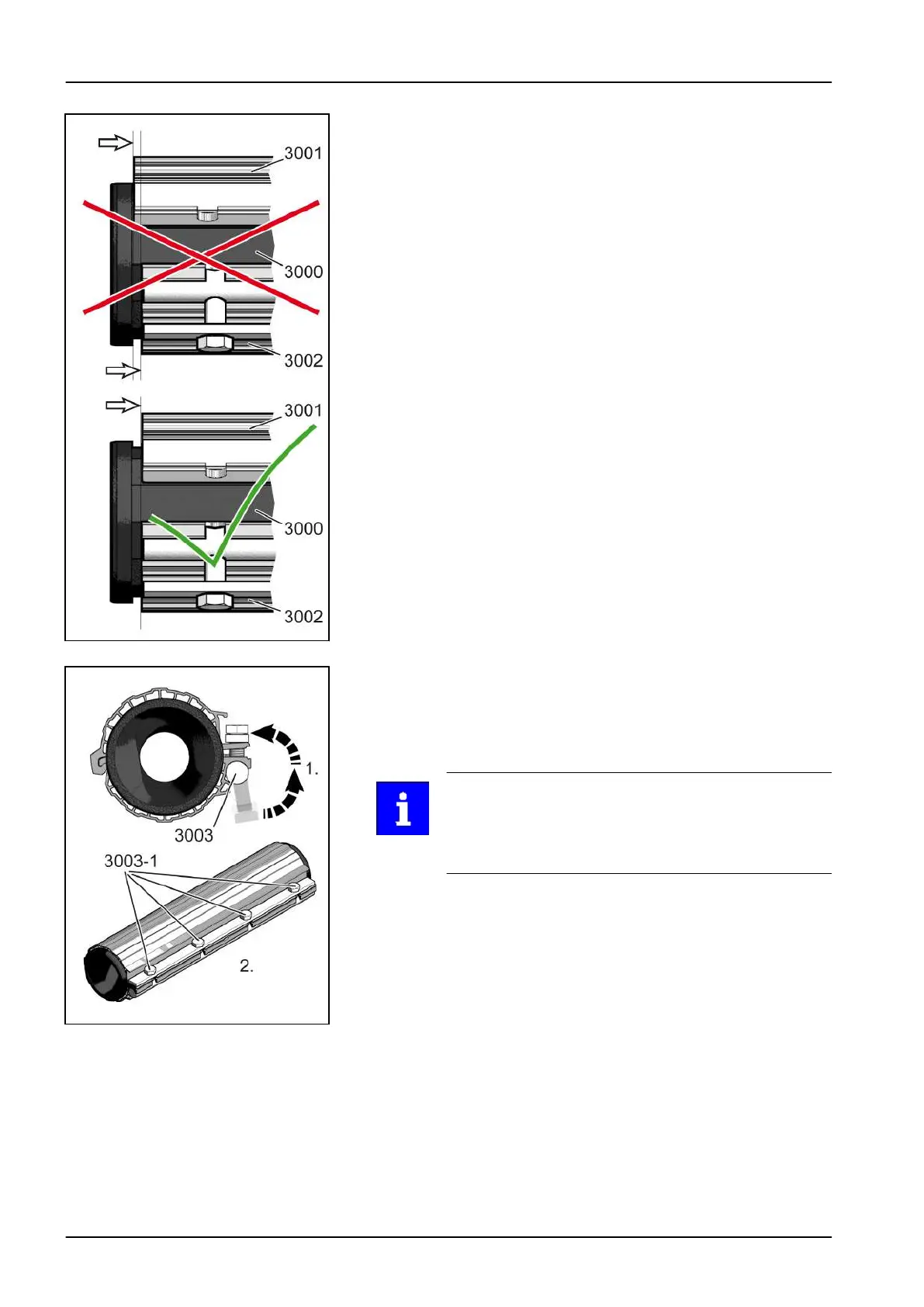

Align upper shell.
ü
The upper shell sits close onto the elastomer (see
above).
1. Align upper shell (3001) in the centre of the elastomer
(3000) and parallel to the lower shell (3002).
Upper shell is aligned.
Shut closure:
ü
The upper shell is aligned (see above).
1. Swing the closure (3003) upwards.
2. Tighten screws (3003-1).
Tip:
The iFD stator
®
2.0 can be particularly easily installed
when the screws are now only hand-tightened.
Do not tighten until assembly in the pump (→ Chapter
9.3.7 Installation).
iFD stator
®
2.0 is ready to be installed.
Dismantling and Assembly of the Pump Housing
IPP - EN - EN_09101_20141105/14 - D8411276 - 4300003998 - 000100 - NPS - 00229929 N 2018-02-21 19:03:25
