Operating Manual Gearbox
Commissioning and operation

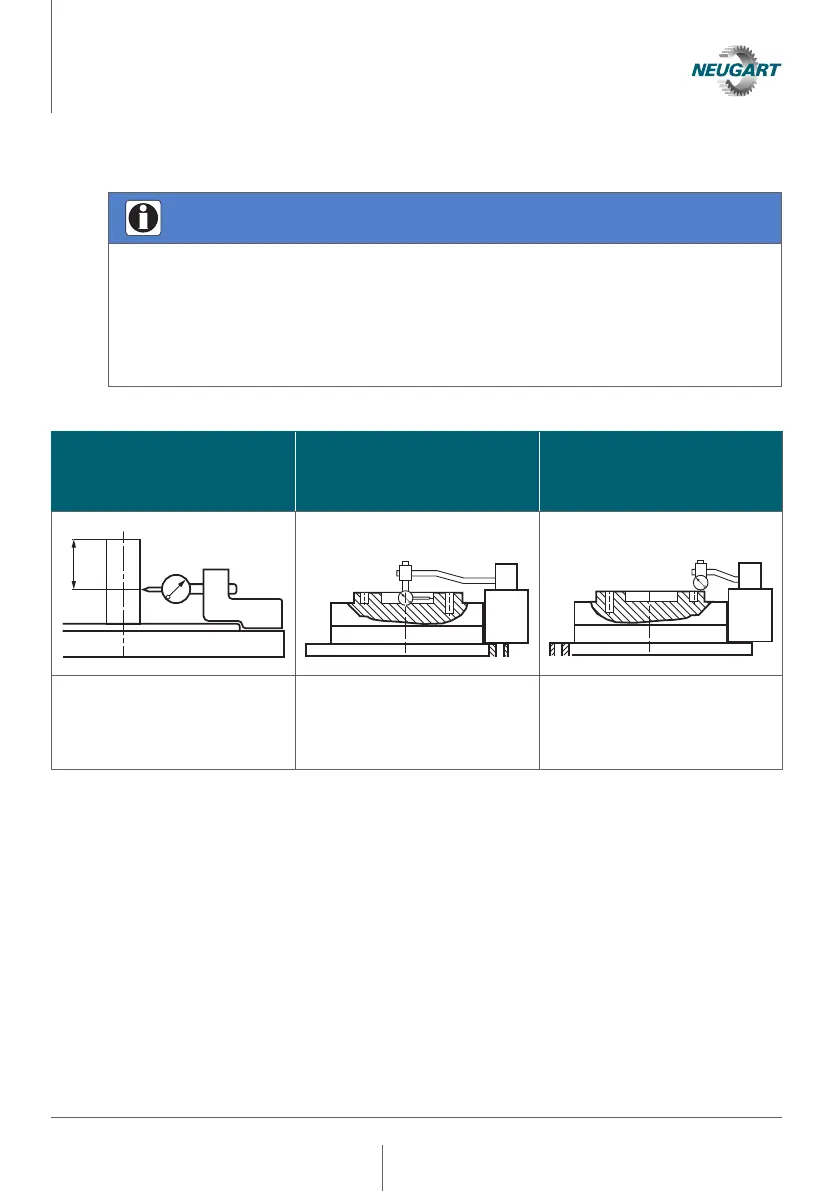

4.5 Radial and axial run-out of the gearbox shaft end
Information
If the technical specifications include data on the radial and axial run-out of the
output shaft, the measuring methods described below must be used. The measure-
ment may be performed with the gearbox in the horizontal or vertical position, with
the measuring instrument mounted directly on the gearbox or on a common base
plate for the gearbox and measuring instrument. The maximum and minimum
values are read on the measuring instrument by slowly rotating the shaft.
Radial run-out
of the gearbox shaft end
for stem shafts
Radial run-out
of the gearbox shaft end
for flanged shafts
Axial run-out
of the gearbox shaft end
for flanged shafts
E/2
The measuring probe is
placed at the center of the
shaft end.
The measuring probe is
placed at the center of the
inner centering diameter of
the flanged shaft.
The measuring probe is
placed at the outer edge of
the screw-on surface of
the flanged shaft.
