Description of the gearbox
2 Description of the gearbox
2.1 Nameplate
The nameplate is affixed to the drive flange or the gearbox housing. For clear identi-
fication of the gearbox, the nameplate must also be legible at all times once installed
in a machine or system. There are two different versions of the nameplate, which are
explained in the following chapters 2.1.1 and 2.1.2.
2.1.1 Nameplate with data matrix code

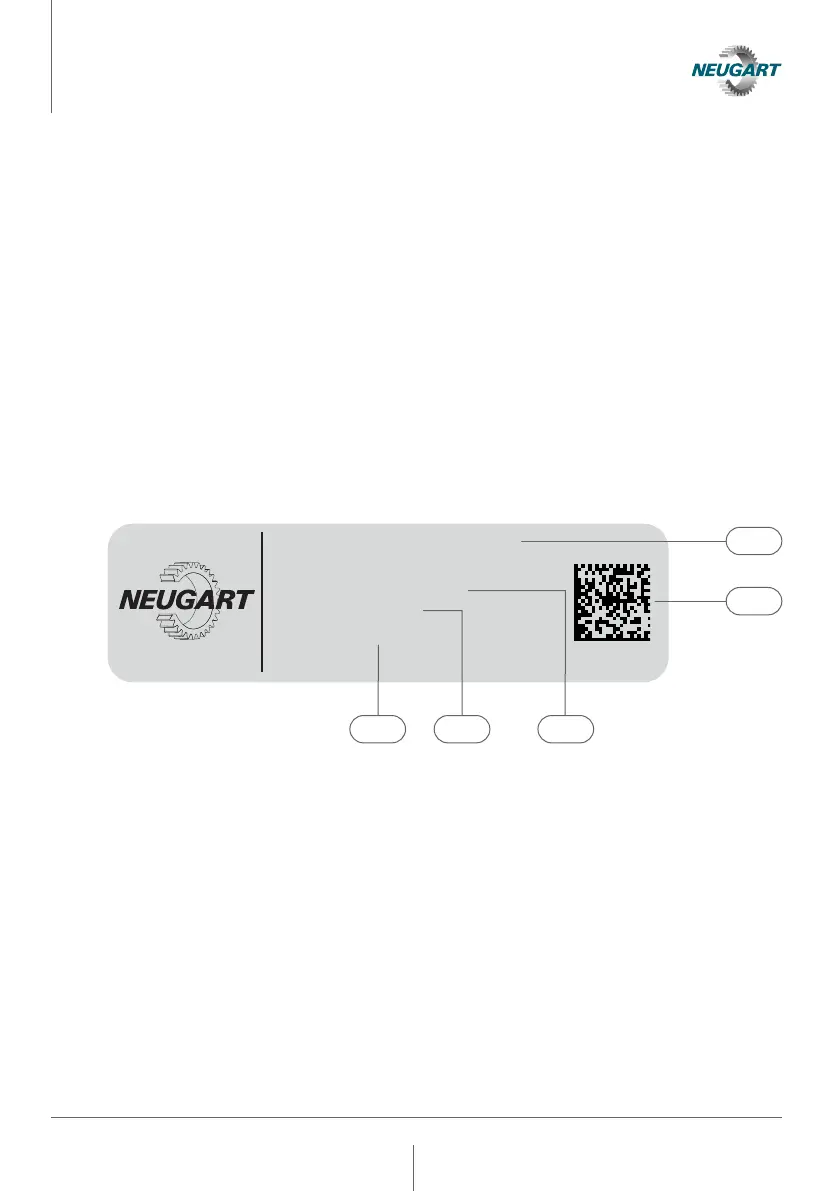

The following figure shows, by way of example. the nameplate of a PLE series
planetary gearbox with a data matrix code. The data matrix code links to the Online
Service, where more detailed product information can be accessed.
1 Product code (2 lines)
2 Data matrix code
3 Serial number
4 Article number
5 Production date: Calendar week / year
Made in Germany
PLE080-004-SSSA3AE-E19
/
40
/
80
/
100
/
B5
/
M6
SN: MZRKPMCVRNB
AN: 100253786
DOP: 34/2022
5 4 3
2
1
