ADAT 1

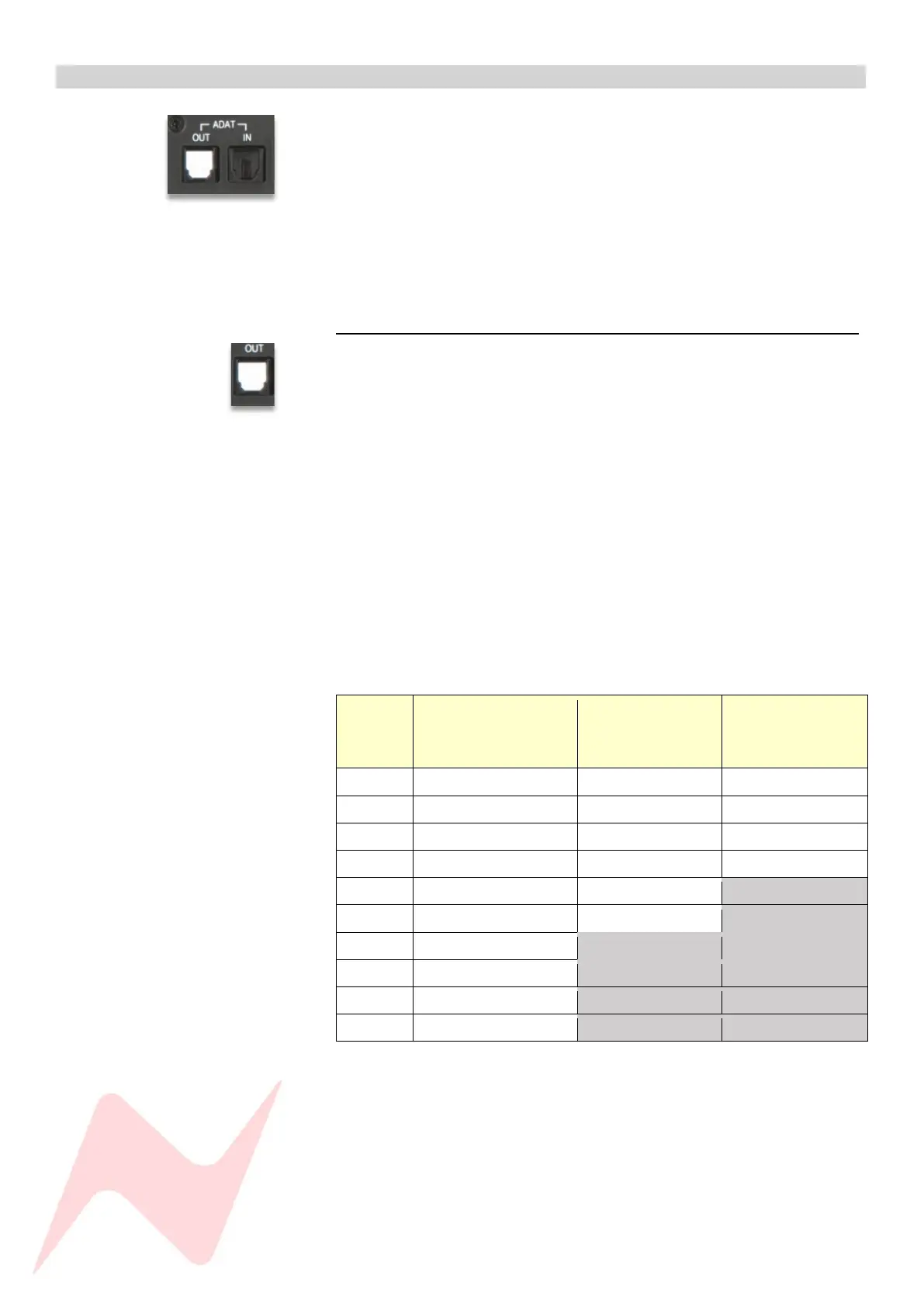

The 88M features one optical output ports and one optical input port. These
two optical connections are used to connect the 88M via TOSLINK cables to
another ADAT enabled audio interface such as the Neve 1073OPX. This
system allows you to expand the 88M’s recording capabilities by adding
eight channels of inputs, such as additional preamps, or further line level
inputs. The ADAT output also provides eight additional digital outputs which
can be used to expand the monitor outputs of the 88M as cue sends, or for
surround monitoring for example.
ADAT Output 1
The ADAT OUT port is used to feed signals from the 88M into an external
ADAT enabled device.
At lower sample rates (44.1kHz, 48kHz) the optical outputs can transmit
eight channels of digital audio through a single optical cable.
At higher sample rates (88.2kHz, 96kHz) four channels of digital audio are
transmitted.
• ADAT 1, 2, 3 & 4 are available
• ADAT 5, 6, 7, & 8 are deactivated
At the highest sample rates available (176.4kHz, 192kHz) two channels of
digital audio are transmitted.
• ADAT 1 & 2 are available
• ADAT 3, 4, 5, 6, 7, & 8 are deactivated
44.1/48kHz
Outputs
Outputs
