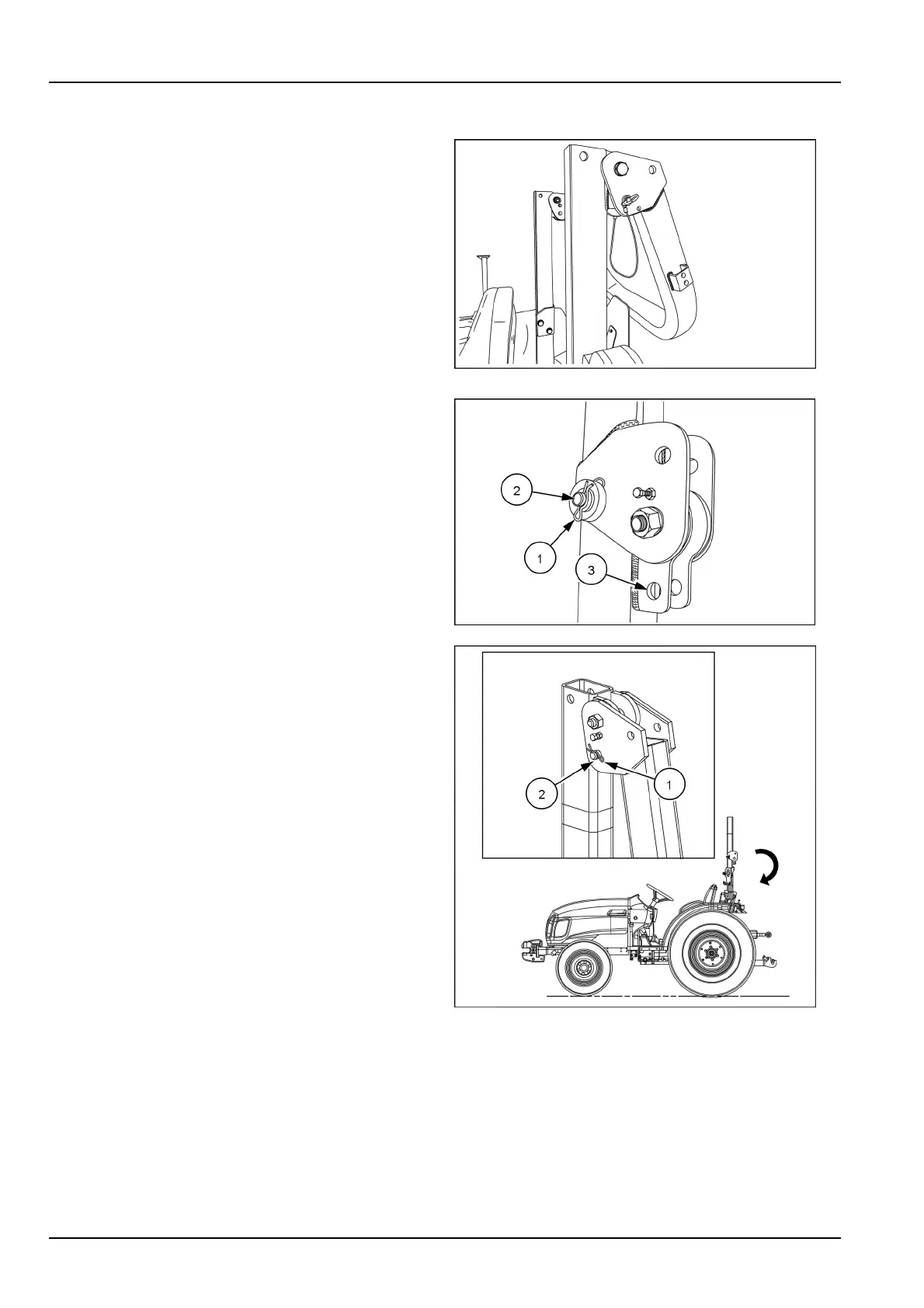

3-CONTROLSANDINSTRUMENTS
FoldableROPS
AfoldableRolloverProtectiveStructure,isfactoryin-
stalled.OperatewiththisROPSinthe"UP"position
wheneverpossible.UsetheROPSinthe"folded"posi-
tiononlywhenabsolutelynecessary.
NHIL13CT01021AA2
ROPSFoldingProcedure
TofoldtheROPSintothe"DOWN"position
1.Removeretainingclip(1)fromthepin(2)andremove
pinfromthelatchingbracket,onbothsidesofthe
ROPS.
2.RotatethetoppartoftheROPSdownwarduntilthe
bracketscontacttheROPSuprights.
3.Reinstallpin(2)intolowerretaininghole(3).
4.Securethepin(2)withtheretainingclip(1).
930993283
NHIL12CT01017GA4
3-4
