3-CONTROLSANDINSTRUMENTS
Midmounttwospoolcontrolvalve

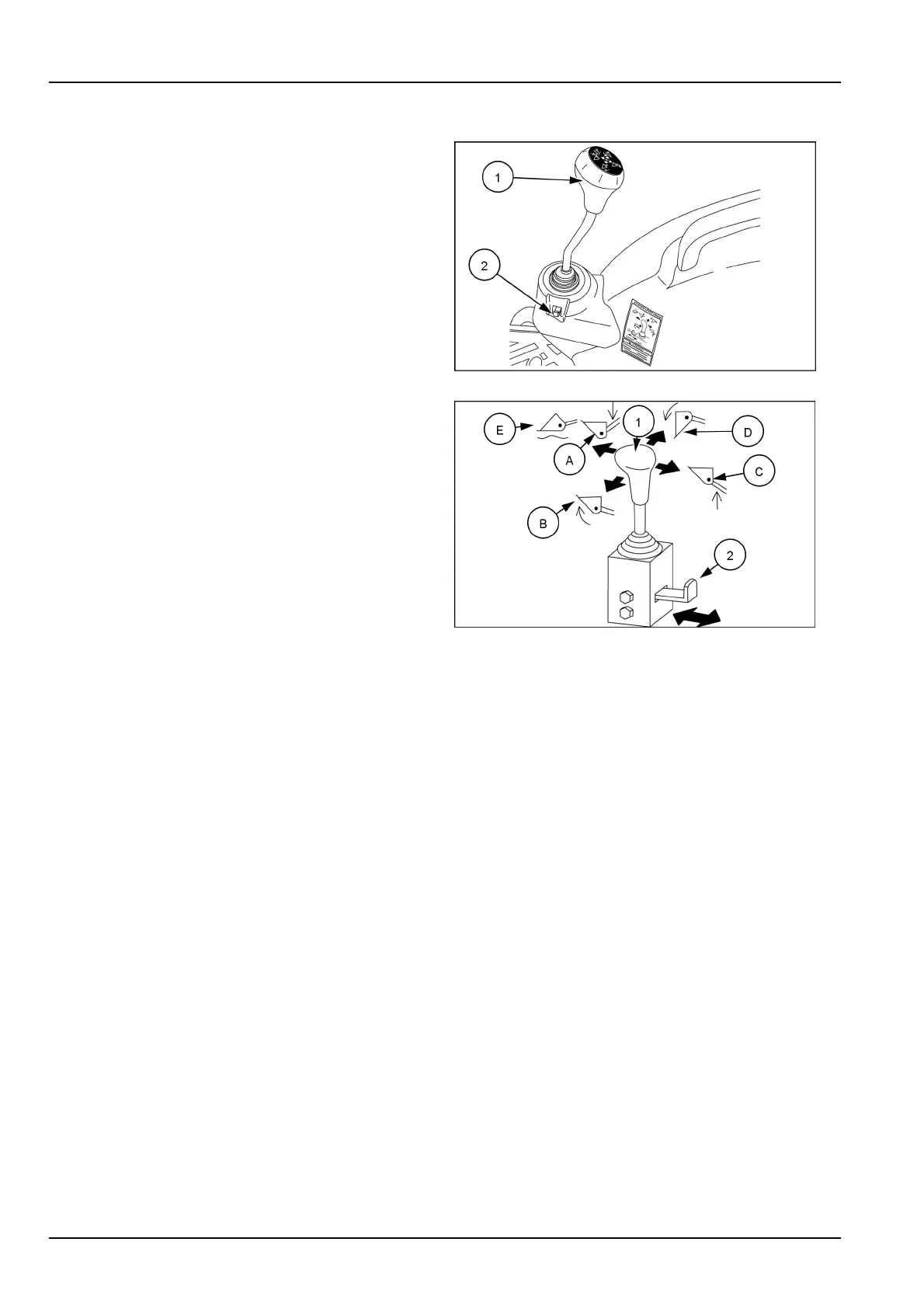

Themidmounttwospoolcontrolvalve(1)ismountedto
thefrontoftheright-handfender.Thiscontrolvalveis
usedmainlyforfrontendloaderoperation,butmayalso
beusedtooperateotherfrontmountedimplements.
Thecontrolvalveisequippedwithalinkagelockout(2)
thatlocksthecontrolvalvehandleintheneutralposition
anddoesnotallowthevalvetooperate.
NHIL13CT01193AA1
Tooperatethecontrolvalve,movethecontrollever(1)in
anyofthefourdirections.
Releasethecontrollevertostopthecylinderinanyposi-
tion,theleverautomaticallyreturnstoneutral.
•
Movethecontrolleverforwardtolowertheloader/re-
tractcylinder(A).
•
Movethecontrollevertothelefttocurlthebucket/re-
tractcylinder(B).
•
Movethecontrolleverrearwardtoraisetheloader/ex-
tendcylinder(C).
•
Movethecontrollevertotherighttodumpbucket/ex-
tendcylinder(D).
•
Movethecontrolleverfullyforwardto"FLOAT"position
(E)whichallowstheloaderboomliftcylinderstoextend
orretractfreely.Thisvalvepositionwillallowtheloader
tofollowthegroundcontourduringoperation.
NOTE:Donotusethe"FLOAT"position(E)iftheloader
bucketisraisedofftheground..
NOTE:Pushthelockouttab(2)inwardstolockthevalve
controlleverwhenthetwo-spoolcontrolvalveisnotused.
NOTE:Ifyoumovethecontrolleverdiagonallytheloader
andbucketwilloperateatthesametime.
931008582
3-32
