Newmac CL 86-96C - Burner Components and Specifications; Electrode Setting and Burner Insertion

21

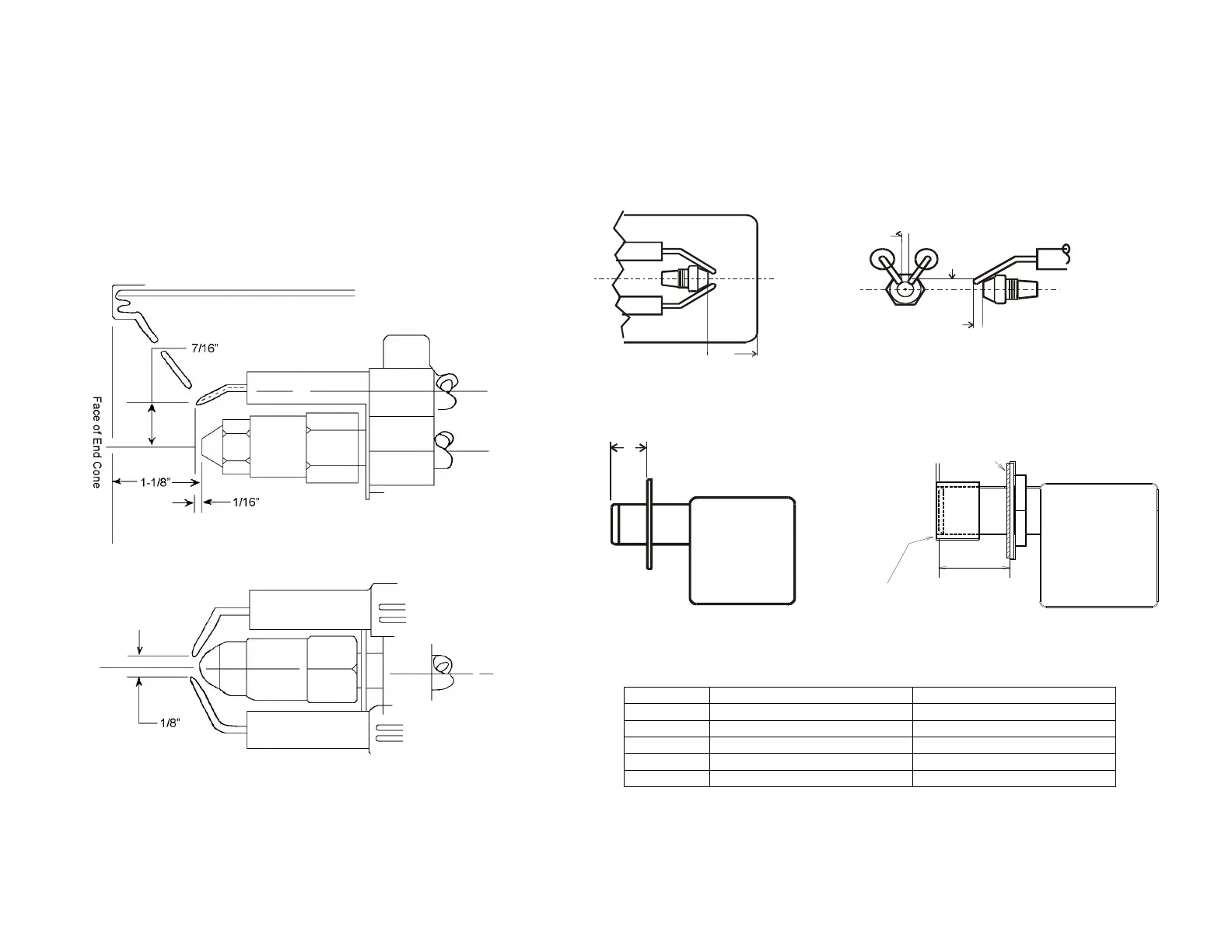

FIG. 15A
ELECTRODE SETTING FOR AERO AND BECKETT
FIG. 15B
ELECTRODE SETTING FOR RIELLO
FIG. 15C FIG. 15D
BURNER INSERTION RIELLO SLEEVE POSITION
FIG. 15E
DIMENSIONAL RELATIONSHIPS (FIG. 15A-15D)
AERO & BECKETT
RIELLO
A
1/8”
5/32”
B
7/16”
13/64”
C
1/16”
5/64” to 7/64”
Z
1-3/8”
-
E
7 7/8”
7 1/2"
Z
A
B
C
E
Insertion
to flange (TF)
Part No. 2030016
Riello Burner End Cone Protector
Setback 0-1/4"
Gasket
Riello BF3
Riello 40F3
